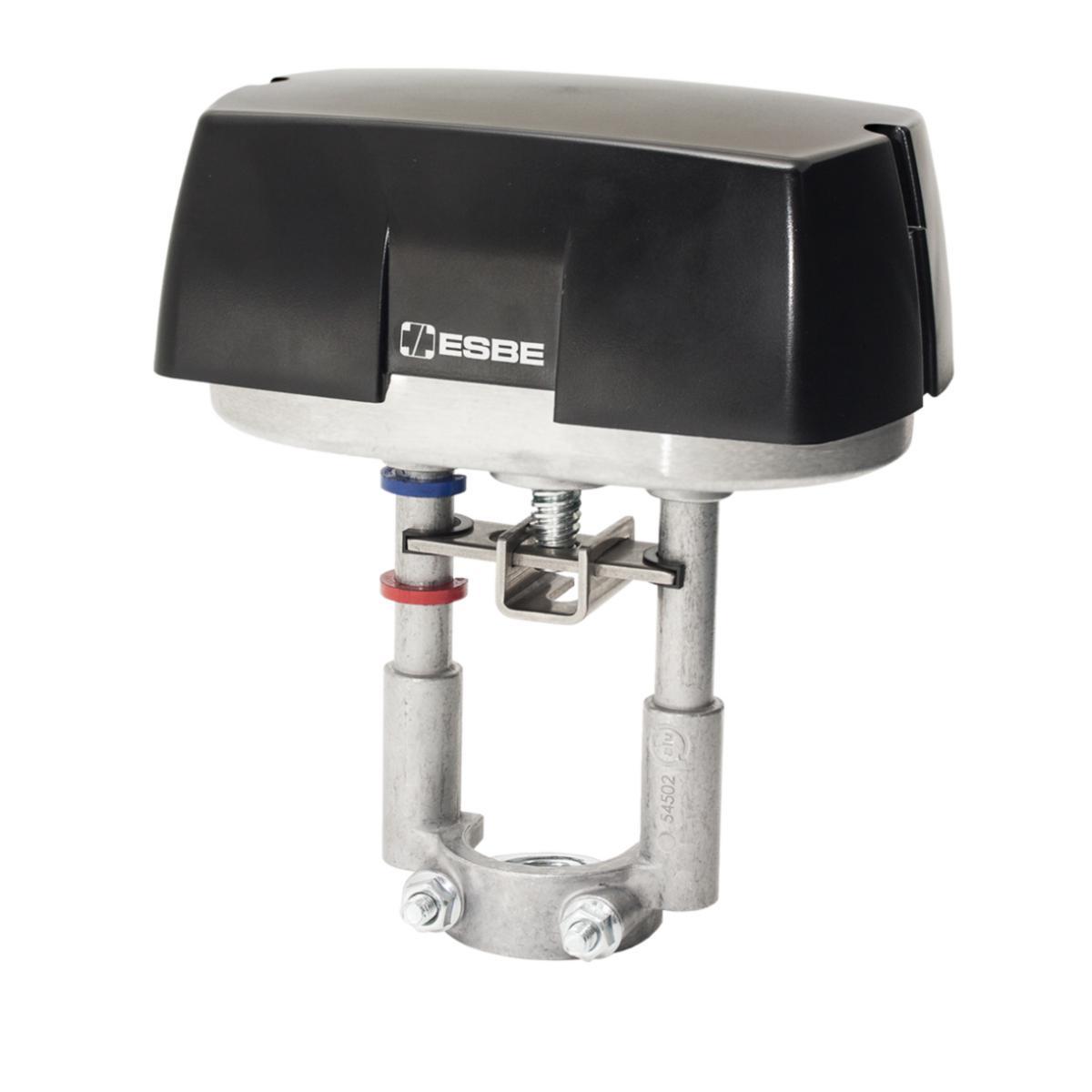

Actuator ESBE ALFxx4
ALF134 ACTUATOR PROP/3-P ESBE PROP/3-P 24V 600N 15-60S
Article number: Suppl. article no:
5362331
22201100
to see price and stock
- Article number: 5362331
- Suppl. article no: 22201100
- Ean no: 7330193049153
- Replaces art.nbr: 5364351
- Material class PEF41A
Technical data
- Operating time: 30 s
- Supply voltage: 24 V AC/DC
- Degree of protection (IP): IP54
- Width: 200 mm
- Ambient temperature: -10-50 °C
- Depth: 135 mm
- Height: 228 mm
- Deactivated when closed: No
- Transmission: With cogwheels
- Control signal: 0 - 10 V / 4 - 20 mA
- Self-adjusting travel length: Yes
- Adjusting force: 600 N
- Model: Linear
- Allowable relative humidity: 0-90 %
- Stroke length: 30 mm
- Suitable for valve: Yes
- Adjustable operating range: No
- Adjustable position feedback signal: Yes
- Regulation type modulating: Yes
- Connection to stop valve: Brand-dependent
- Suitable for air accessory: No
- Suitable for manual operation: Yes
- Housing material: Aluminium/plastic
- Auxiliary contacts optional: No
- Energy consumption in operation: 6 W
- Explosion-proof: No
- Energy consumption at rest: 5 W
- REACH Date: 2021-01-19
- REACH Information obligation: No
