Esbe

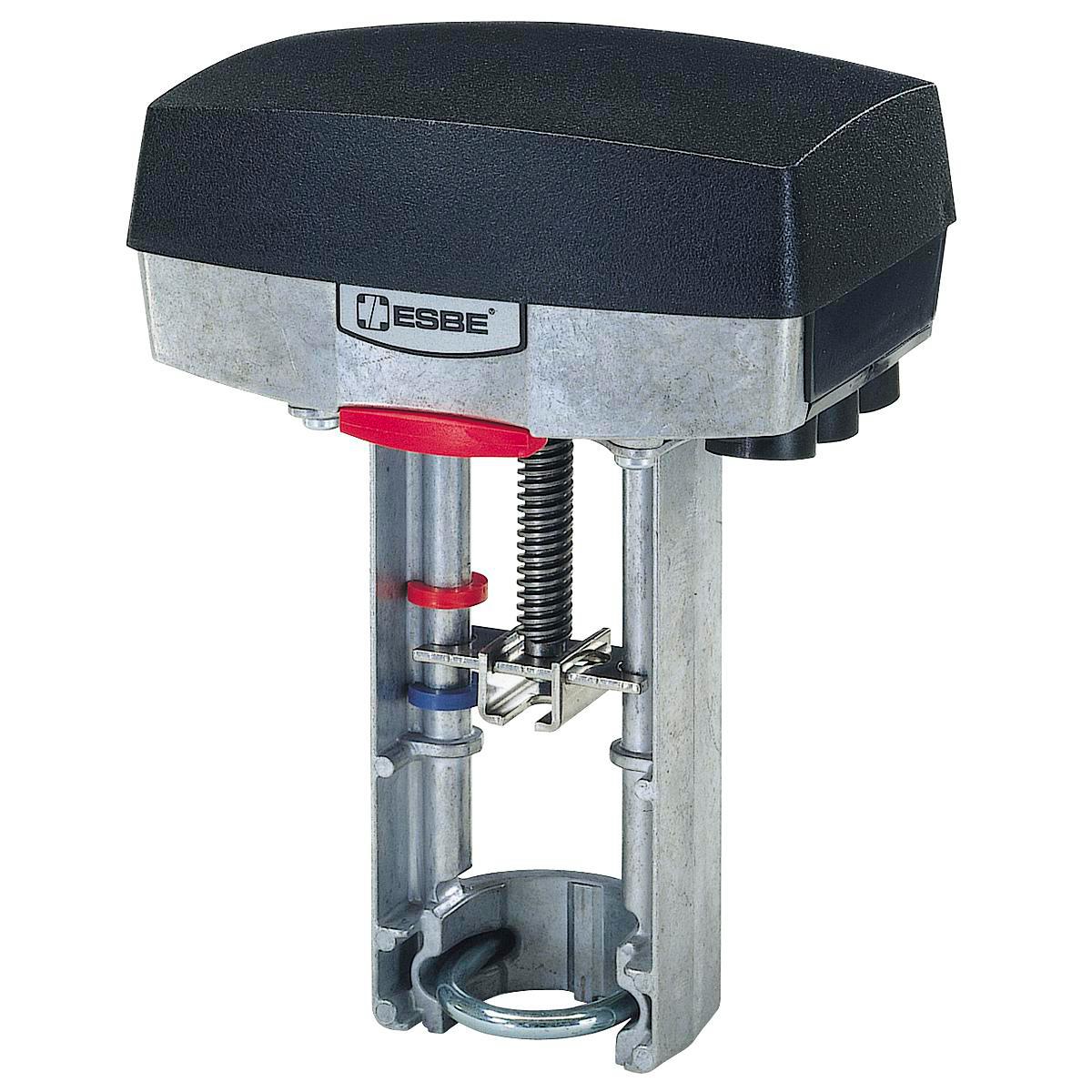

Actuator ALB 144, Esbe
ALB144 ACTUATOR PLUG/3-POINT ESBE PROP/3-POINT 24V 800N 15S
Article number: Suppl. article no:
5362194
22050100
to see price and stock
Electromechanical actuator that can be controlled optionally by an increase/decrease signal or by a proportional control signal. Stroke length 10-52 mm. Protection class IP54.
No special mounting kit is required for mounting on ESBE control valves.
No special mounting kit is required for mounting on ESBE control valves.
- Article number: 5362194
- Suppl. article no: 22050100
- Ean no: 7330193024211
- Replaces art.nbr: 5364350
- Material class PEF410
Technical data
- Supply voltage: 24 V AC
- Degree of protection (IP): IP54
- Width: 173 mm
- Depth: 117 mm
- Height: 243 mm
- Housing material: Steel/plastic
- Suitable for valve: Yes
- Model: Linear
- Transmission: With cogwheels
- Regulation type modulating: Yes
- Suitable for manual operation: Yes
- Explosion-proof: No
- Operating time: 30 s
- Connection to stop valve: Brand-dependent
- Auxiliary contacts optional: No
- Adjustable operating range: No
- Suitable for air accessory: No
- Deactivated when closed: No
- Control signal: 0 - 10 V
- Adjustable position feedback signal: Yes
- Self-adjusting travel length: Yes
- Ambient temperature: -10-50 °C
- Adjusting force: 800 N
- Energy consumption in operation: 15 W
- Allowable relative humidity: 0-90 %
- Stroke length: 52 mm
- Energy consumption at rest: 0 W
- REACH Date: 2021-01-19
- Type: ALB144
- REACH Information obligation: No
