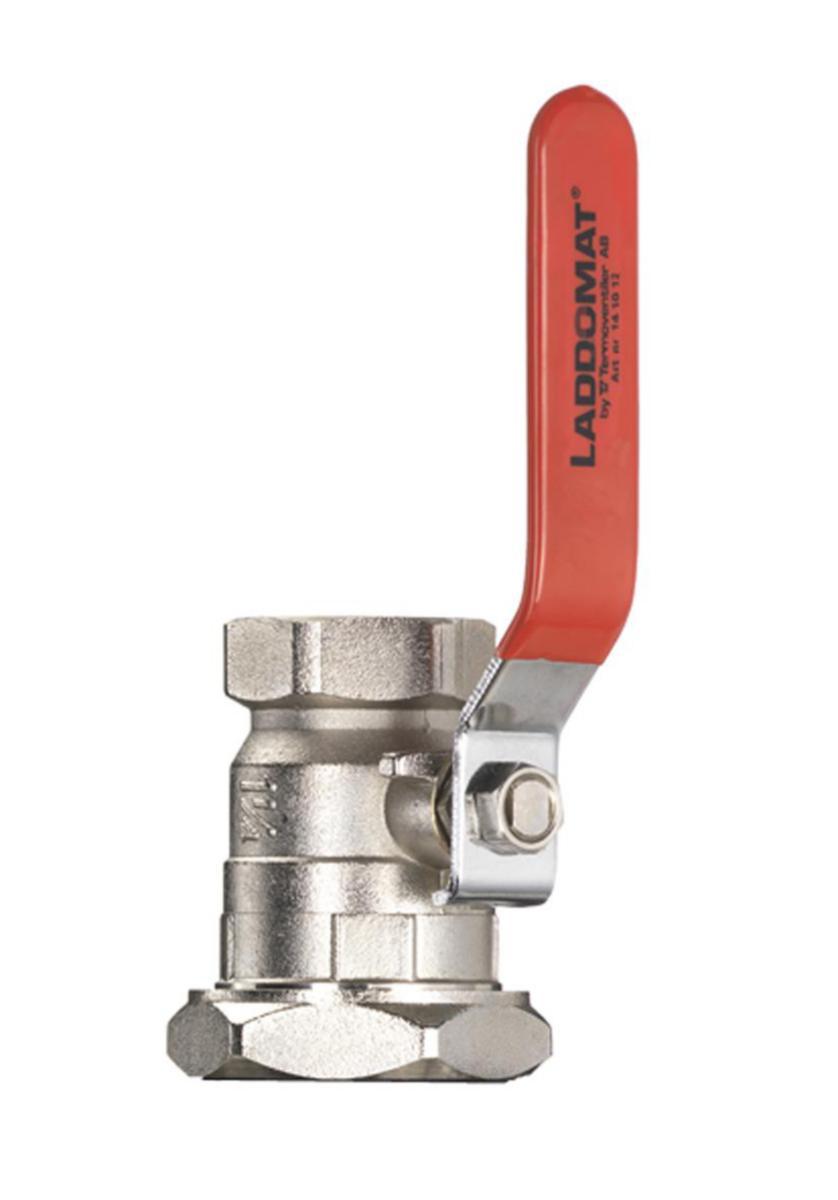

Ball valve for Laddomat, Termoventiler
G50/G32 BALLVALVE LM21/21-100 MUTTER/INVÄNDIG GÄNGA
Artikelnummer: Lev. artikelnr:
5813364
141012
för att se saldo och pris
Shut-off valve for eg circulation pumps or eg Laddomat 10, 11-100 or 21-60.
Our lever ball valves have a stuffing box and compression nut around the spindle. If the valve should start to leak, you can easily tighten the nut, which compresses the stuffing box further and the leakage disappears. You can also remove the nut and "repack" the seal, without draining the system. All seals are made of Teflon, ie no rubber seals that can age / leak. This means that you do not have to change the valve, even after many years of operation. Your facility will be very reliable. In addition to this, the operation is very reliable with a real steel handle instead of an Allen key that can "tooth over" if the valve is sluggish.
Our lever ball valves have a stuffing box and compression nut around the spindle. If the valve should start to leak, you can easily tighten the nut, which compresses the stuffing box further and the leakage disappears. You can also remove the nut and "repack" the seal, without draining the system. All seals are made of Teflon, ie no rubber seals that can age / leak. This means that you do not have to change the valve, even after many years of operation. Your facility will be very reliable. In addition to this, the operation is very reliable with a real steel handle instead of an Allen key that can "tooth over" if the valve is sluggish.
- Article number: 5813364
- Suppl. article no: 141012
- Material class PFA12A
Teknisk data
- Connection 1: Other
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Operation: Lever handle
- Housing material: Brass
- Outer pipe diameter connection 1: 50 mm
- Outer pipe diameter connection 2: 32 mm
- REACH Date: 2023-01-26
- REACH Information obligation: No
