Water heater MS, OSO

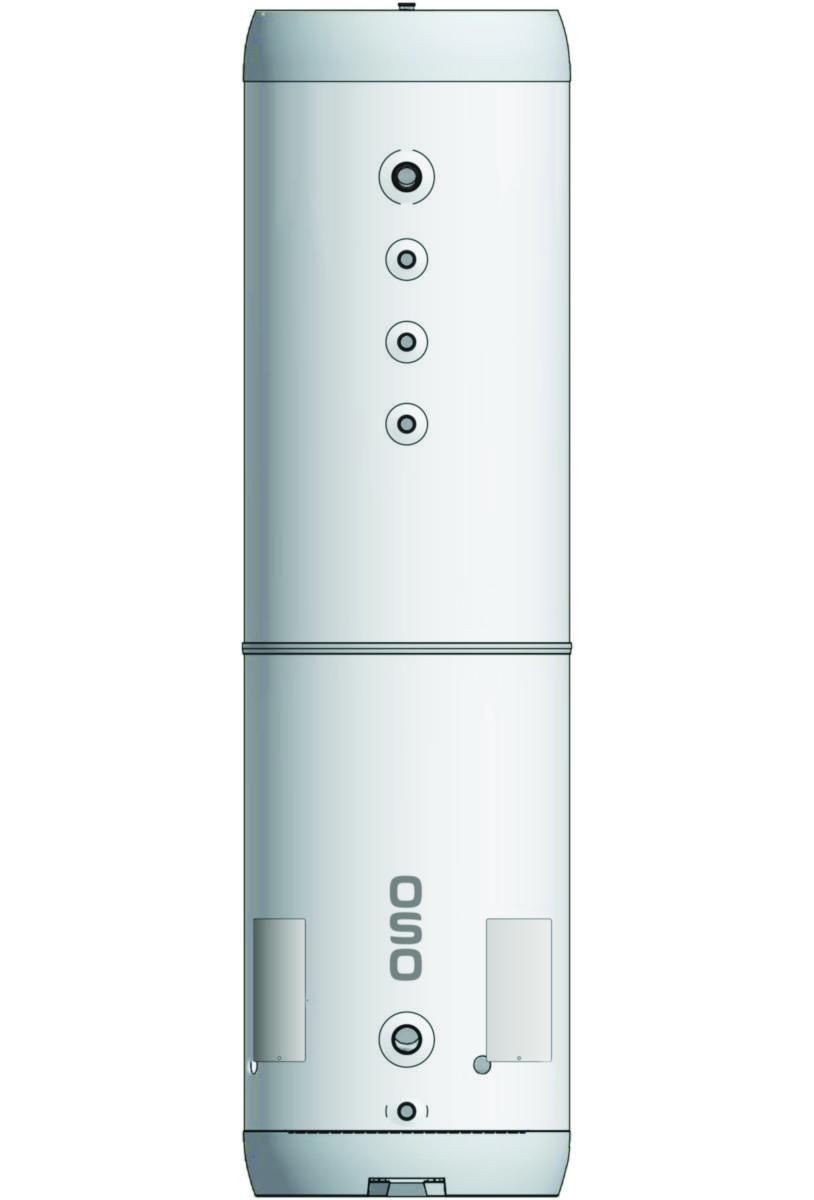

OSO Maxi Standard MS 400 15KW (2X7,5) - 3X400V
Article number: Suppl. article no:
6938209
11008985
to see price and stock
MAXI STANDARD — MS. Our best-selling industrial boiler MAXI series has for 50 years demonstrated outstanding operational reliability for larger boiler installations. MAXI is constructed with EVERLAST™ high-alloy stainless steel combined with ULTRAWELD™ technology, and has market-leading insulation properties that provide great economic profits MAXI is available in 400-10,000 L with 10 bar pressure class and can be customized as required.
MAXI STANDARD — MS fits most hot water needs, is Norway's best-selling industrial water heater and is heated using the built-in electrical central or from solar collectors with OSO TURBOSYSTEM (see MAXI — M). The power plant has switchable power 5–15 kW (400-1000L) 5-30kW (2000-10000L), 400 V-3-phase, and is thermostatically controlled 50 - 75 °C in three steps with separate thermal releases. Contactors are not needed and included cables are connected directly to the central units. Safety valve 9 bar included.
The mounting sets for cold water intake, mixer center, disc changer, pump center and series/parallel connection (optional) are specially designed to fit seamlessly into the front of the MAXI series.
With the central mixer, the temperature can be adjusted down to the taps directly from the boiler.
Shipping is added on non-stocked products.
MAXI STANDARD — MS fits most hot water needs, is Norway's best-selling industrial water heater and is heated using the built-in electrical central or from solar collectors with OSO TURBOSYSTEM (see MAXI — M). The power plant has switchable power 5–15 kW (400-1000L) 5-30kW (2000-10000L), 400 V-3-phase, and is thermostatically controlled 50 - 75 °C in three steps with separate thermal releases. Contactors are not needed and included cables are connected directly to the central units. Safety valve 9 bar included.
The mounting sets for cold water intake, mixer center, disc changer, pump center and series/parallel connection (optional) are specially designed to fit seamlessly into the front of the MAXI series.
With the central mixer, the temperature can be adjusted down to the taps directly from the boiler.
Shipping is added on non-stocked products.
- Article number: 6938209
- Suppl. article no: 11008985
- Ean no: 7070644009601
- Material class PFB010
Technical data
- Diameter: 595 mm
- Height: 2225 mm
- Tank volume: 372 l
- Material casing: Steel
- Design form: Floor standing
- Three-phase model: Yes
- Nominal power: 15 kW
- Connection voltage: 400 V
- Material boiler tank: Stainless steel
- With pressure reducing valve: No
- Cold tap water connection: Internal thread
- Hot tap water connection: Internal thread
- Nominal diameter cold tap water: 1 1/2 inch (40)
- Nominal diameter hot tap water: 1 1/2 inch (40)
- Duo model: No
- Frequency: 50 Hz
- Degree of protection (IP): IP44
- With circulation connection: Yes
- With tap/mixer: No
- With off-peak electricity circuit: No
- With thermometer: No
- With watercooler: No
- Horizontal positioning: Yes
- With cleaning opening: No
- With temperature limit: Yes
- Low-pressure model: No
- Suitable for boiling water: No
- Max. operating pressure: 10 bar
- Hot fill: Yes
- With temperature indication: No
- Protective anode: Yes
- Circulation pipe connection: Internal thread
- Plinth boiler: No
- Energy efficiency class: C
- REACH Date: 2023-03-01
- REACH Information obligation: No
