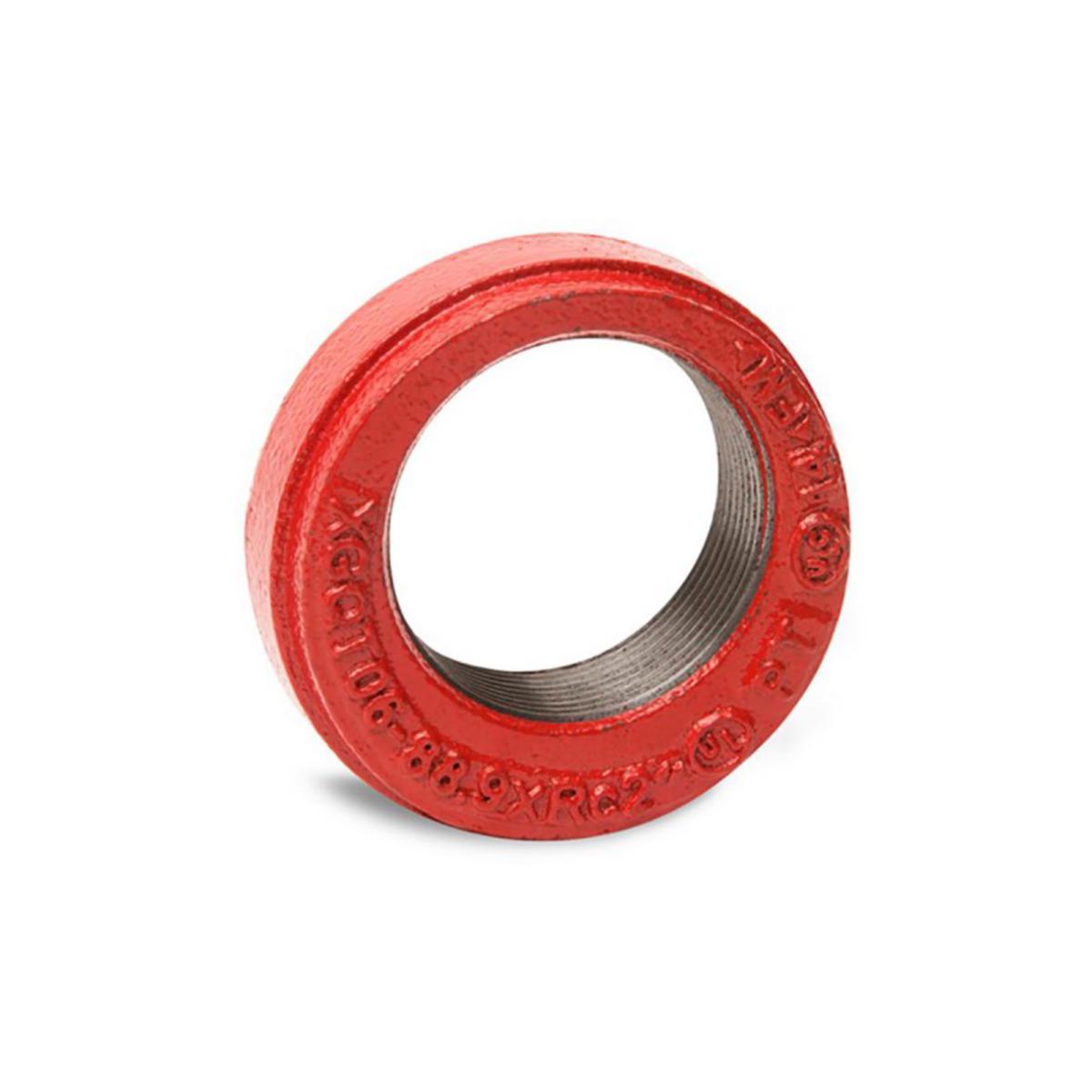

Grooved cap with internal thread, Red
Grooved red end cap EXC hole DN100XR25
Article number: Suppl. article no:
1356077
GER4-1
to see price and stock
Cap with internal thread. Pipe fittings (GB, GT, GRC, GE, GRTR)
Used to make direction changes in grooved pipe systems.
The pipe parts can handle up to 20.7 bar maximum working pressure.
Used to make direction changes in grooved pipe systems.
The pipe parts can handle up to 20.7 bar maximum working pressure.
- Article number: 1356077
- Suppl. article no: GER4-1
- Ean no: 7333123854421
- Replaces art.nbr: 19055472
- Material class PJB530
Technical data
- Packagin Size: 1 PCS/30 PCS/1350 PCS
- Nominal diameter connection 1: DN 100
- Nominal diameter connection 2: DN 25
- Outer pipe diameter connection 1: 114.3 mm
- Outer pipe diameter connection 2: 33.7 mm
- Max. operating pressure at 20 °C: 20.7 bar
- Weight / item: 0.78 kg
- Connection 1: Groove
- Connection 2: Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
- Material connection 1: Steel
- Material connection 2: Steel
- Surface protection connection 1: Powder coating
- Surface protection connection 2: Powder coating
- Shape: Straight
- Reducing: Yes
- Length: 25.4 mm
