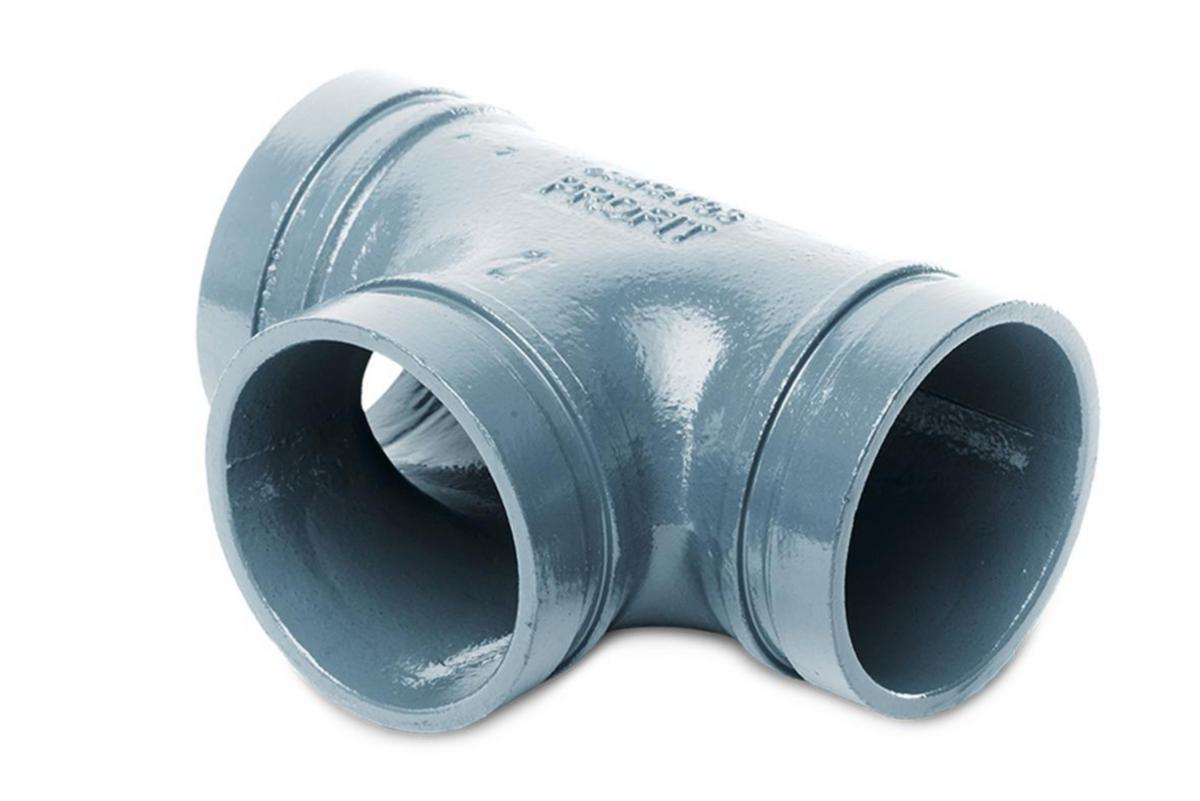

Grooved straight tee, Galvanized
Grooved galvanized Tee fitting DN50
Article number: Suppl. article no:
1650447
GTG2
to see price and stock
Pipe parts (GB, GT, GRC, GE, GRTR)
Used to make directional changes in worn pipe systems.
The pipe parts can withstand up to 20.7 bar maximum working pressure.
Used to make directional changes in worn pipe systems.
The pipe parts can withstand up to 20.7 bar maximum working pressure.
- Article number: 1650447
- Suppl. article no: GTG2
- Ean no: 7333123077110
- Replaces art.nbr: 19045788
- Material class PJB560
Technical data
- Packagin Size: 1 PCS/25 PCS/750 PCS
- Nominal diameter connection 1: DN 50
- Nominal diameter connection 2: DN 50
- Nominal diameter connection 3: DN 50
- Outer pipe diameter connection 1: 60.3 mm
- Outer pipe diameter connection 2: 60.3 mm
- Outer pipe diameter connection 3: 60.3 mm
- Connection 1: Groove
- Connection 2: Groove
- Connection 3: Groove
- Max. operating pressure at 20 °C: 20.7 bar
- Weight / item: 0.92 kg
- Material connection 1: Steel
- Material connection 2: Steel
- Material connection 3: Steel
- Surface protection connection 1: Hot-dip galvanised
- Surface protection connection 2: Hot-dip galvanised
- Surface protection connection 3: Hot-dip galvanised
- Multi-part: Yes
- Reducing: No
