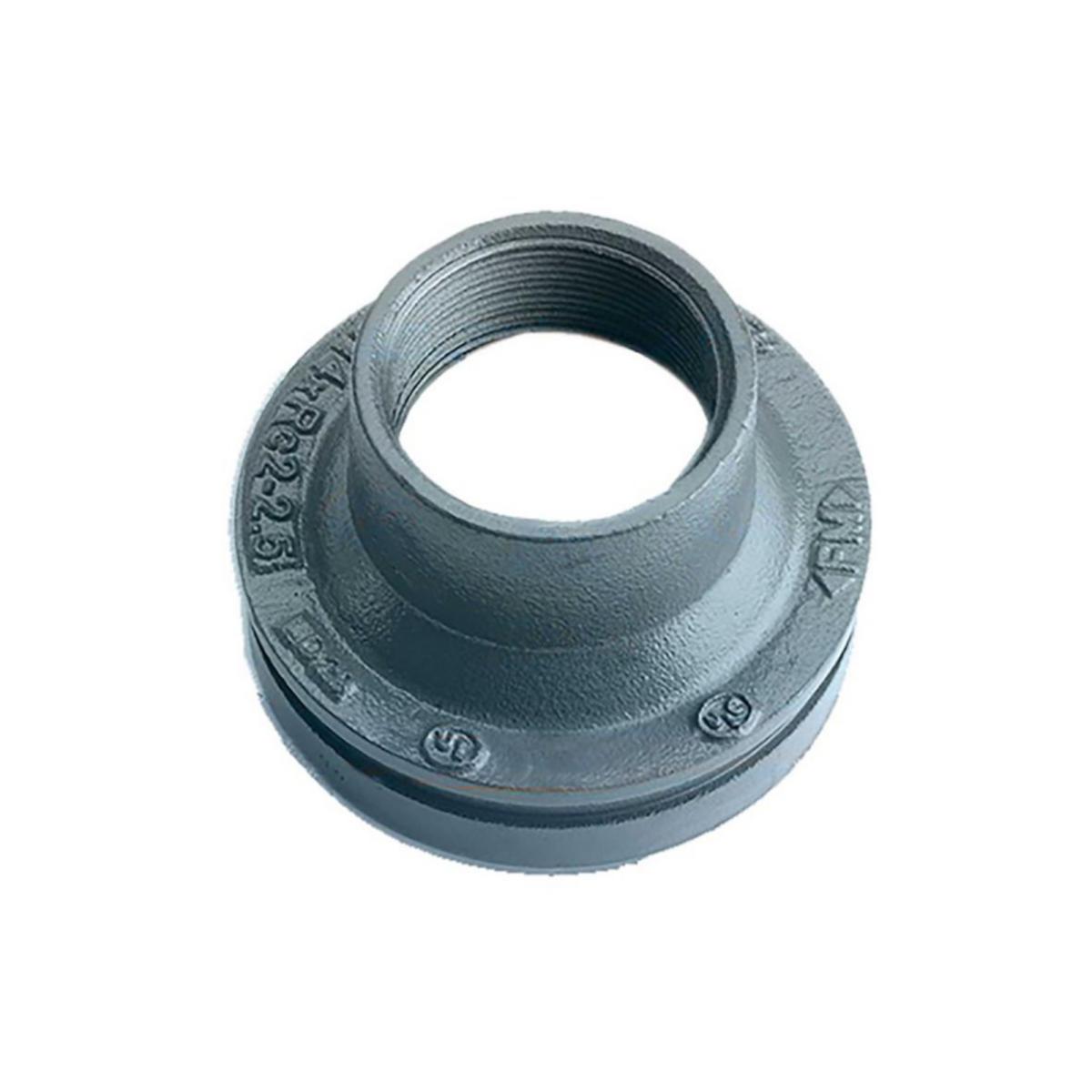

Grooved-in threaded concentric cone galv, Profit
THREAD/GR GALV CONC. REDUCER 76,1MM (DN65) X R50
Artikelnummer: Lev. artikelnr:
1650723
GRCDG21/2-2
för att se saldo och pris
Reducing transition from grooved to internally threaded is used to create a transition between grooved and threaded systems.
Red parts are suitable for corrosivity classes C1 and C2, while galvanized products are intended for C3.
Grooving standard OGS.
Thread Standard: BSTP
Red parts are suitable for corrosivity classes C1 and C2, while galvanized products are intended for C3.
Grooving standard OGS.
Thread Standard: BSTP
- Article number: 1650723
- Suppl. article no: GRCDG21/2-2
- Ean no: 7333123856876
- Material class PJB750
Teknisk data
- Packagin Size: 1 PCS/32 PCS/1120 PCS/35840 PCS
- Nominal diameter connection 1: DN 65
- Nominal diameter connection 2: DN 50
- Outer pipe diameter connection 1: 76.1 mm
- Outer pipe diameter connection 2: 60.3 mm
- Max. operating pressure at 20 °C: 20.7 bar
- Weight / item: 0.65 kg
- Connection 1: Groove
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Material connection 1: Steel
- Material connection 2: Steel
- Surface protection connection 1: Galvanic/electrolytic zinc plated
- Surface protection connection 2: Galvanic/electrolytic zinc plated
- Shape: Straight
- Reducing: Yes
