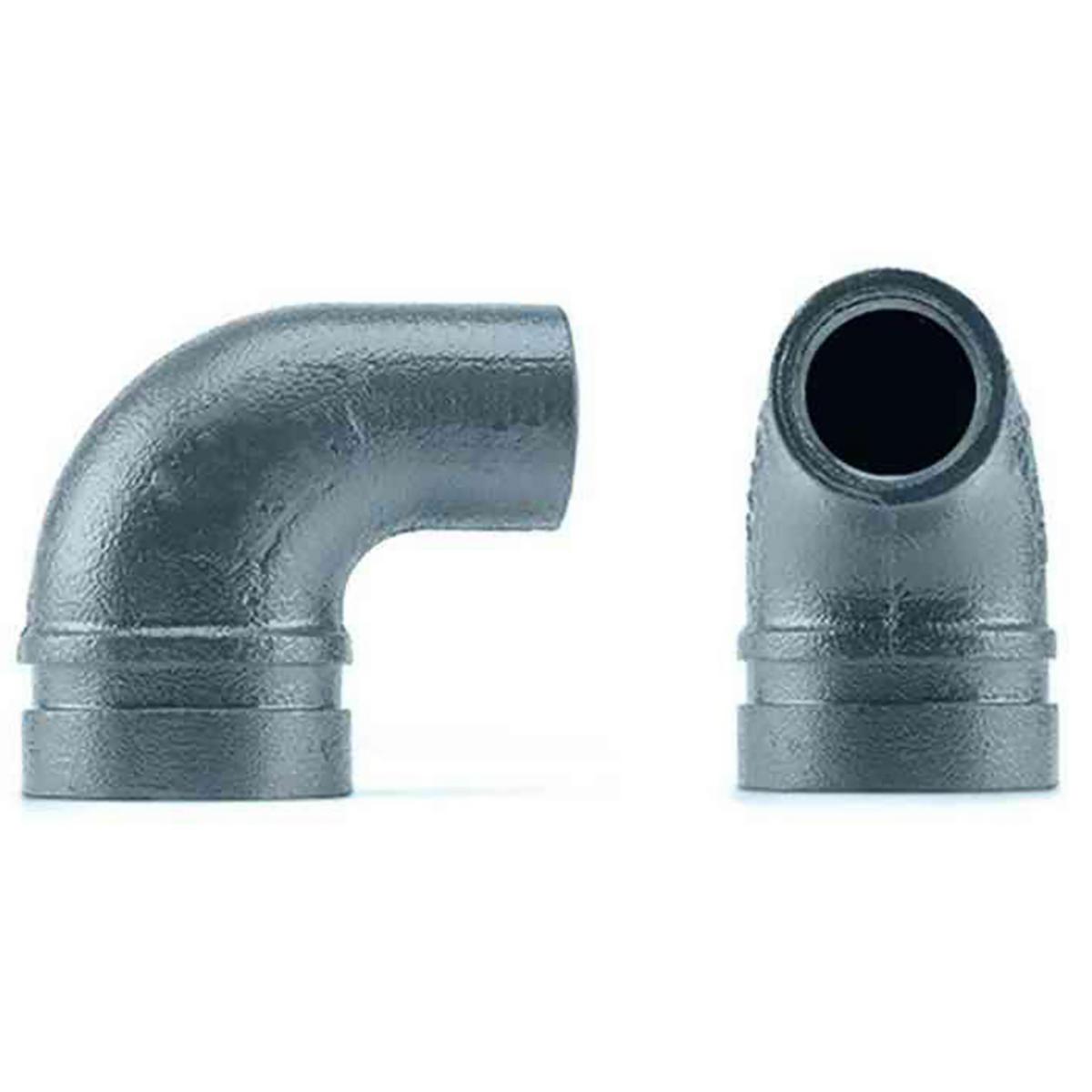

End bend 90º Groove/Thread for sprinkler head, Galvanized
Grooved reduc galvad 90° elbow DN32-15
Article number: Suppl. article no:
1356113
GBD90G11/4-1/2
to see price and stock
Bend 90° Groove/Thread for Sprinkler Heads (GBD)
Grooved reduced elbow for connection with sprinkler head or end plug.
The end bend can handle up to 20.7 bar maximum working pressure.
Grooved reduced elbow for connection with sprinkler head or end plug.
The end bend can handle up to 20.7 bar maximum working pressure.
- Article number: 1356113
- Suppl. article no: GBD90G11/4-1/2
- Ean no: 7333123854810
- Replaces art.nbr: 1648592 19055367
- Material class PJB420
Technical data
- Packagin Size: 1 PCS/50 PCS/2250 PCS
- Nominal diameter connection 1: DN 32
- Nominal diameter connection 2: DN 15
- Outer pipe diameter connection 1: 42.4 mm
- Outer pipe diameter connection 2: 21.3 mm
- Max. operating pressure at 20 °C: 20.7 bar
- Weight / item: 0.35 kg
- Connection 1: Groove
- Connection 2: Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
- Material connection 1: Steel
- Material connection 2: Steel
- Surface protection connection 1: Hot-dip galvanised
- Surface protection connection 2: Hot-dip galvanised
- Bend angle: 90 °
- Shape: Bend
- Reducing: Yes
