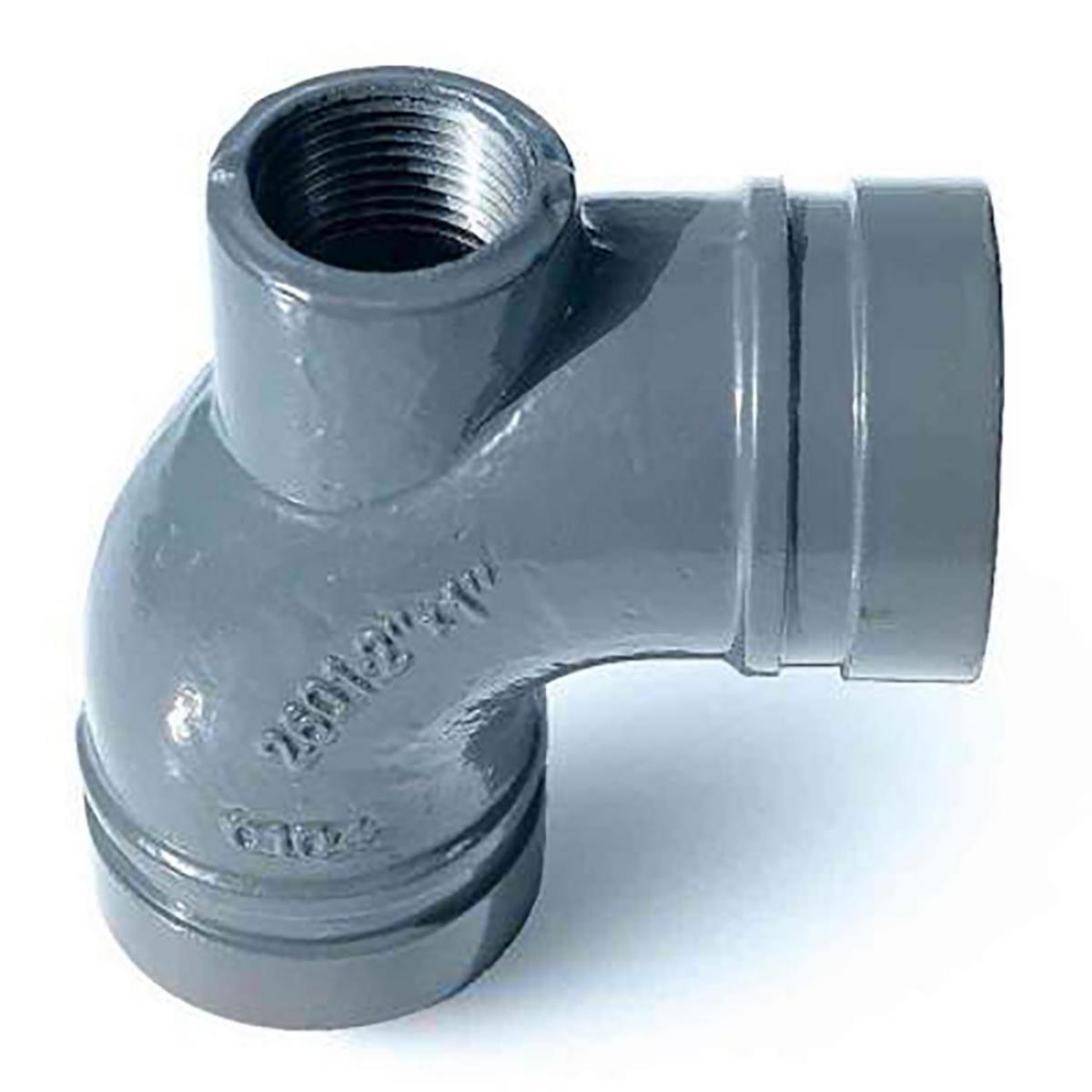

Drain bend 90º Grooved with branch, Galv
Grooved derain galv 90° elbow DN100
Article number: Suppl. article no:
1356099
2601G4-1
Normally in stock
to view the store status of the store
to see price and stock
Drain bends (2601)
Grooved bend with outlet R25 (BSPT) thread.
The drain bend can handle up to 20.7 bar maximum working pressure.
Grooved bend with outlet R25 (BSPT) thread.
The drain bend can handle up to 20.7 bar maximum working pressure.
- Article number: 1356099
- Suppl. article no: 2601G4-1
- Ean no: 7333123854094
- Replaces art.nbr: 19055356
- Material class PJB420
Technical data
- Packagin Size: 1 PCS/4 PCS/120 PCS
- Nominal diameter connection 1: DN 100
- Nominal diameter connection 2: DN 25
- Nominal diameter connection 3: DN 100
- Outer pipe diameter connection 1: 114.3 mm
- Outer pipe diameter connection 2: 33.7 mm
- Outer pipe diameter connection 3: 114.3 mm
- Connection 1: Groove
- Connection 2: Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
- Connection 3: Groove
- Max. operating pressure at 20 °C: 20.7 bar
- Weight / item: 2.45 kg
- Material connection 1: Steel
- Material connection 2: Steel
- Material connection 3: Steel
- Surface protection connection 1: Hot-dip galvanised
- Surface protection connection 2: Hot-dip galvanised
- Surface protection connection 3: Hot-dip galvanised
- Multi-part: Yes
- Reducing: No
