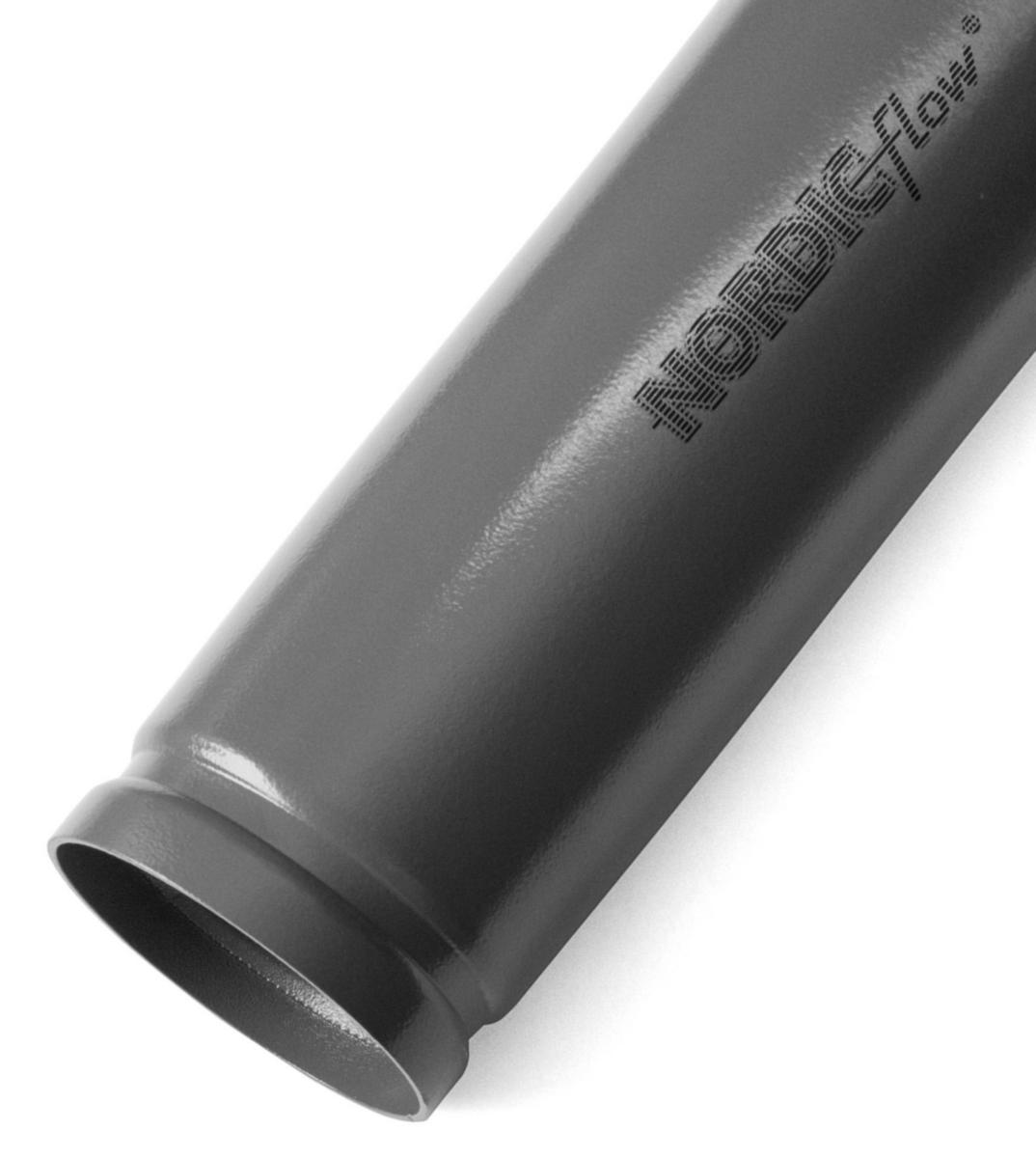

Grooved lightweight pipes, longitudinally welded, powder coated, 3m lengths

Product description
NordicFlow® lightweight pipe is manufactured according to EN 10217-1 and is approved by FM. The pipes are cold-formed, longitudinally welded and precision-cut. C factor is 130 and the pipe is factory grooved according to OGS (Original Grooving System) in accordance with AWWA-C606. The pipes are blast-blasted and are available in two finishes. Epoxy powder coated pipes in gray (RAL 7012) with 70 μm for corrosivity class C1 and C2 and hot-dip galvanized surface treatment for corrosivity class C3. They are available in 6 and 3 meter lengths.
Areas of use
• Sprinkler system
• VS installations
o Heat
o Cooling
• Compressed air system

Corrosivity class

• Gray epoxy powder coated pipes with min. 70 μm in gray RAL 7012 is for corrosivity classes C1 and C2
• Hot-dip galvanized pipes with min. 55 μm EN 10240-A1 (Type E) pipe is for corrosivity class C3.

Approval
NordicFlow® Lightweight pipes have FM approval and the pipes are also FM approved together with PROFITS FITPRO (Ahlsell's quick coupling), butt coupling, and also with Victaulic 009N.
The painted pipes are tested in the salt spray test in accordance with UNI EN ISO 12944-6 for 480 hours with approved results.
In addition, Ahlsell has a certificate from SBSC and the products are assessed by Sundahus and the construction goods assessment.
