Geberit

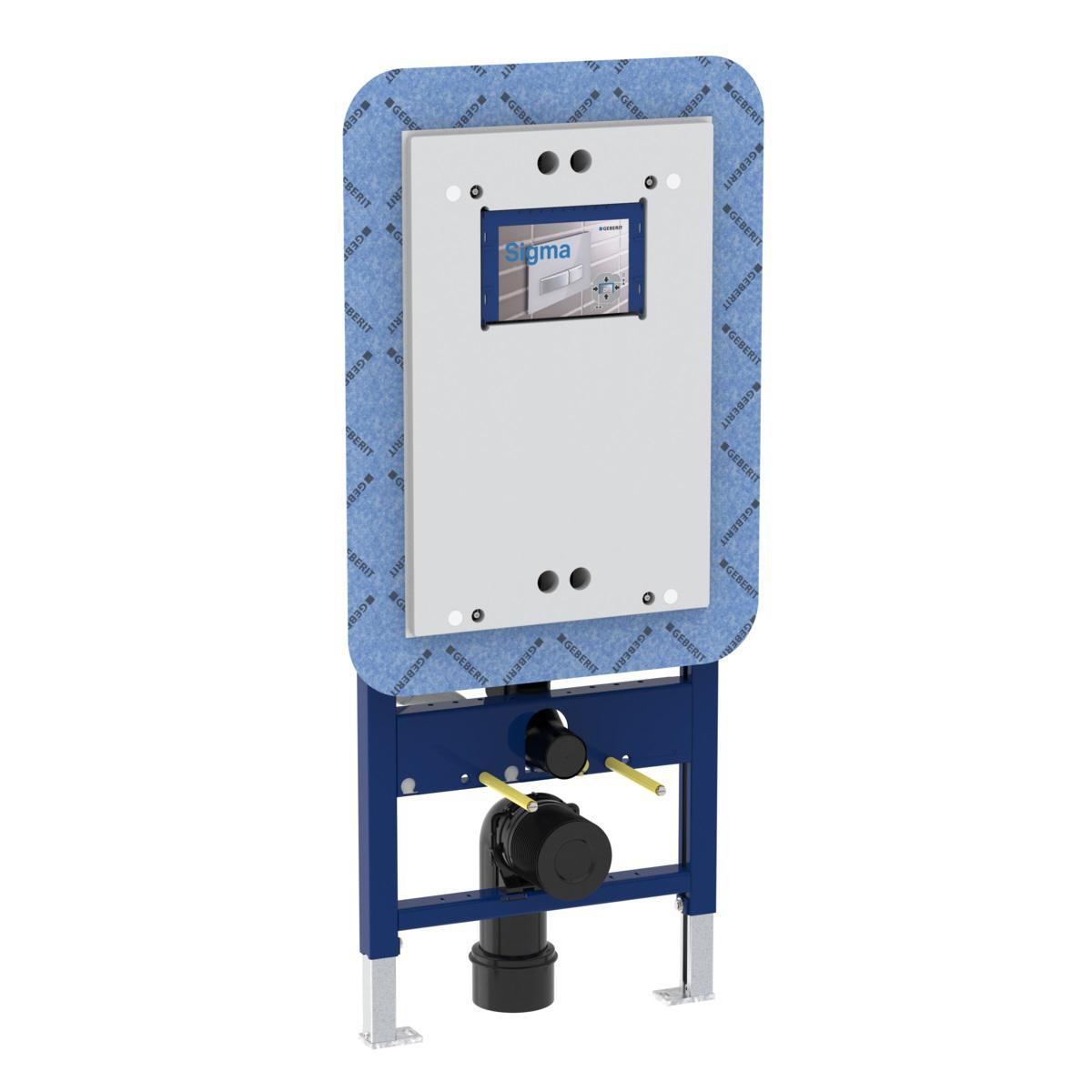

WC fixture Duofix Sigma 120cm. Geberit
GEBERIT DUOFIX WC ELEMENT SIGMA 120 TEK
Article number: Suppl. article no:
8002532
111.910.00.5
to see price and stock
Geberit has developed a concealed cistern for installation between wall studs when a smooth and seamless wall is desired instead of an installation wall. The result is a cistern that is easy for the plumber to install and easy for the tiler to connect the waterproofing membrane and tiles.
The cistern can be replaced from inside the bathroom without breaking or damaging the waterproofing membrane. This is a requirement from, among others, SINTEF Building Research in Norway.
Sigma flush plates fit
Factory-installed sealing collar
Allows cistern replacement without damaging the waterproofing membrane
Spare parts available for 25 years
The cistern can be replaced from inside the bathroom without breaking or damaging the waterproofing membrane. This is a requirement from, among others, SINTEF Building Research in Norway.
Sigma flush plates fit
Factory-installed sealing collar
Allows cistern replacement without damaging the waterproofing membrane
Spare parts available for 25 years
- Article number: 8002532
- Suppl. article no: 111.910.00.5
- Ean no: 4025416536116
- Material class PCJ131
Technical data
- Packagin Size: 1 ST/8 ST
- Tap water connection: External thread
- Width: 500 mm
- Depth: 145 mm
- Spacer under reservoir: No
- Height: 1200 mm
- Adjustable width: No
- Adjustable flushing water quantity: No
- Adjustable toilet height: No
- Adjustable depth: No
- Adjustable height: Yes
- Quality class flushing reservoir: Polyethylene (PE)
- Suitable for shelf operation: No
- Suitable for electrical operation: Yes
- Suitable for front operation: Yes
- Suitable for pneumatic operation: Yes
- Material: Steel
- Material flushing reservoir: Plastic
- With stop valve: No
- With mounting material for the toilet: Yes
- With bracket suitable for floor mounting: Yes
- With contact sound insulation set: Yes
- With bracket suitable for low wall mounting: No
- With drainage bend: Yes
- With bracket suitable for high wall mounting: Yes
- Min. shelf height: 1200 mm
- Size of tap water connection: 1/2 inch
- Frame suitable for wc with offset > 60cm: No
- Self-bearing construction: Yes
- Flushing: Other
- REACH Date: 2022-10-27
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
