Trio

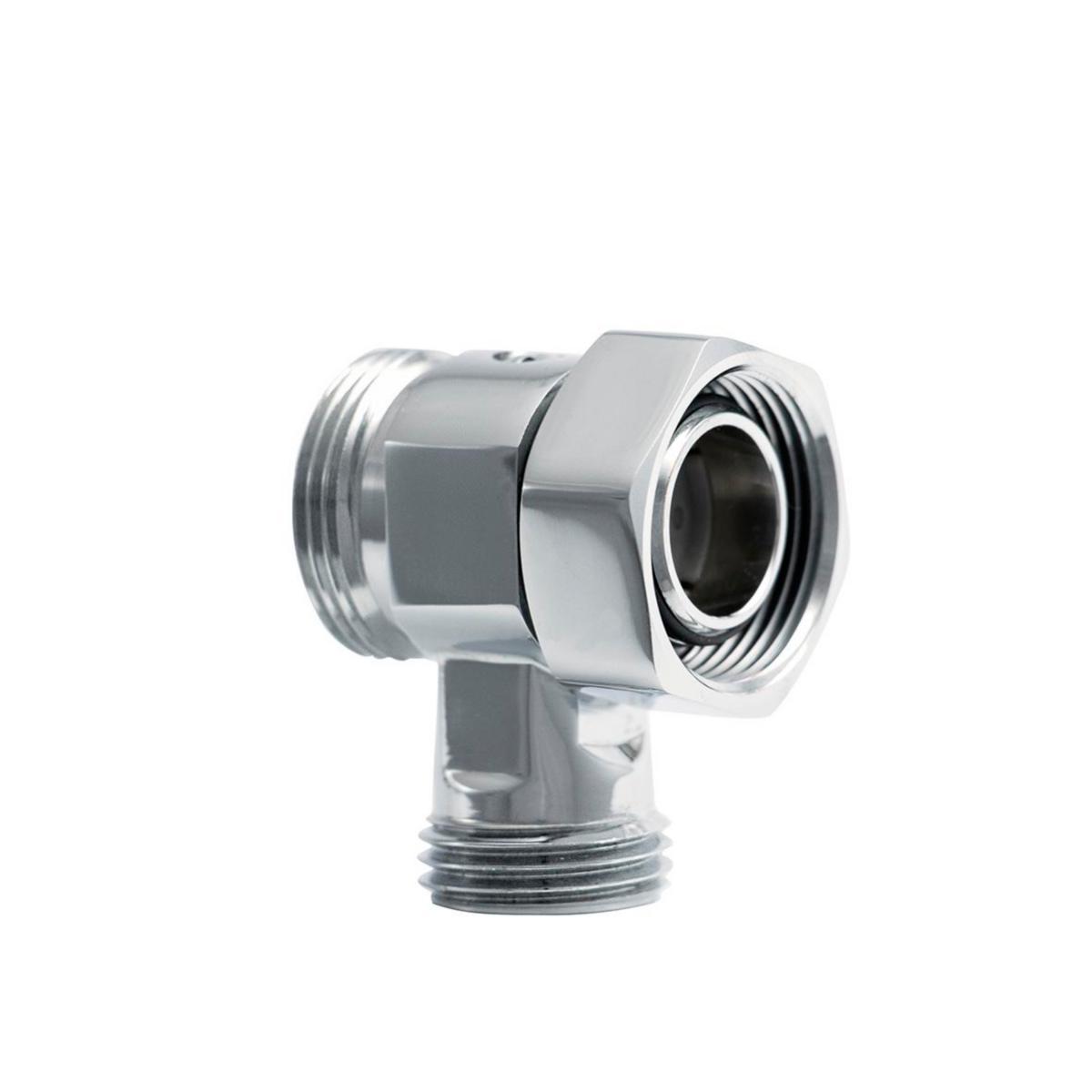

Intermediate Coupling with Branch + Shut-off, Trio
TRIO SPACER M26X1.5 WITH BALL VALVE + SPLIT
Article number: Suppl. article no:
8229254
8229254
to see price and stock
- Article number: 8229254
- Suppl. article no: 8229254
- Ean no: 7320129717157
- Replaces art.nbr: 8188014
- Material class PCP62B

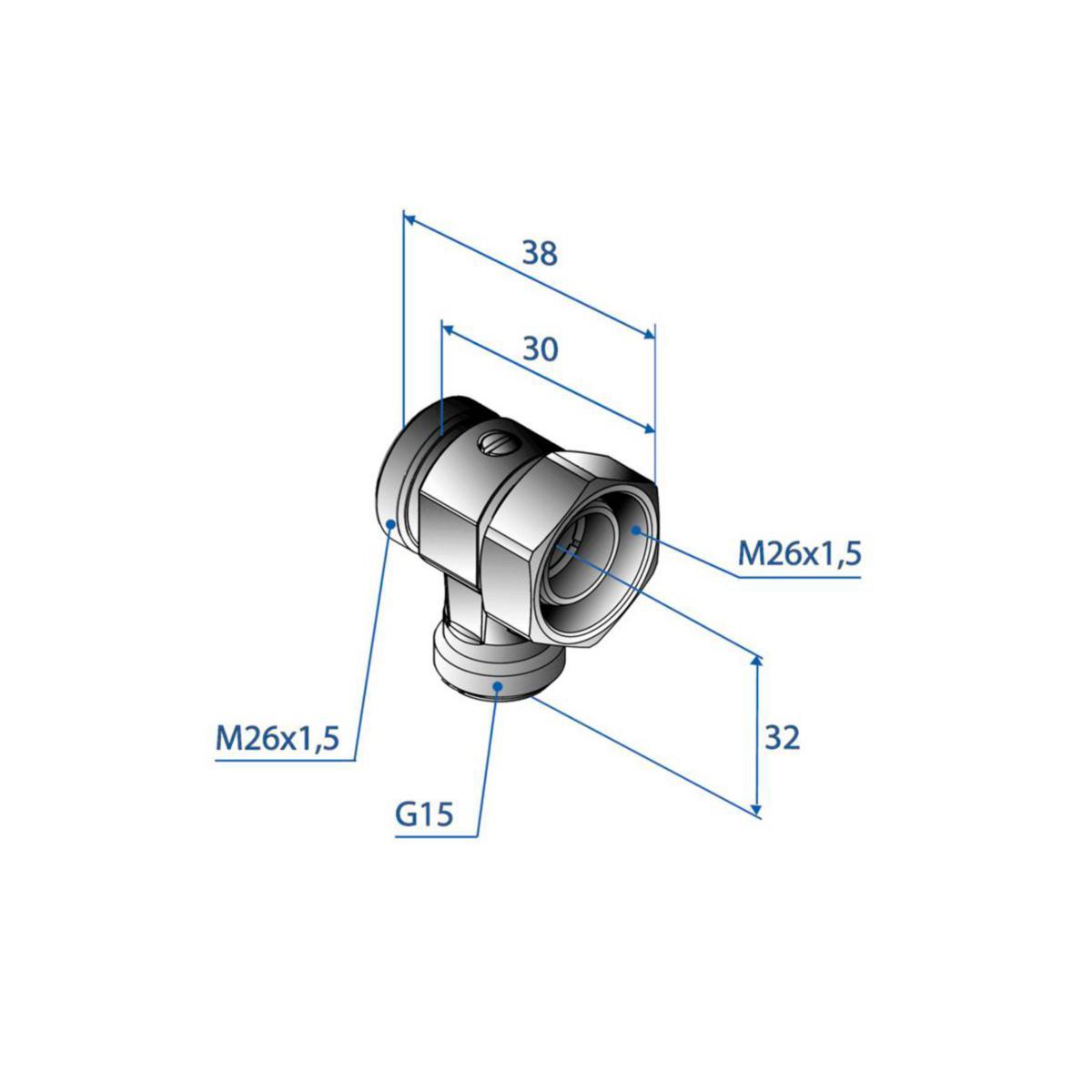

Technical data
- Packagin Size: 1 ST/100 ST
- Connection 1: External thread metric
- Connection 2: Union nut
- Connection 3: External thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection 1: M26 x 1.5
- Nominal diameter connection 2: M26 x 1.5
- Nominal diameter connection 3: 1/2 inch (15)
- Material connection 1: Brass
- Material connection 2: Brass
- Material connection 3: Brass
- Surface protection connection 1: Chromium-plated
- Surface protection connection 2: Chromium-plated
- Surface protection connection 3: Chromium-plated
- With sealing rings/gaskets: No
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Surface treatment connection 3: Untreated
- Model: Other
- FM quality mark: No
- Reducing: No
- LPCB quality mark: No
- Swept entry type (with inner radius): No
- Material quality connection 1: Dezincification resistant brass (DZR)
- Wrench width union nut: 29 mm
- System specific: No
- UL quality mark: No
- Capped: No
- With buffer stud: No
- With drain valve: No
- With de-aerator: No
- Max. operating pressure at 20 °C: 10 bar
- Material quality connection 3: CuZn39Pb2 (CW612N)
- Material quality connection 2: Dezincification resistant brass (DZR)
- ULC quality mark: No
- Medium temperature (continuous): 90 °C
- Gastec QA mark: No
- VdS quality mark: No
- Angle: 90 °
- REACH Date: 2023-04-17
- REACH Information obligation: No
