Washbasin mixer Azur I ECO gold, a-collection
BASIN MIXER AZUR ECO I CHROME WITH POP-UP WASTE
Article number: Suppl. article no:
8278325
8278325
to see price and stock
Washbasin mixer Azur I ECO with Pop-Up bottom valve. 35 mm ceramic insert. Supplied with connection hoses in Soft Pex.
• Washbasin mixer with energy- and water-saving constant-flow jet collector
• Energy class: A
• Cold start function that reduces unnecessary hot water flushing when the lever is opened straight.
• Ceramic control insert for temperature adjustment

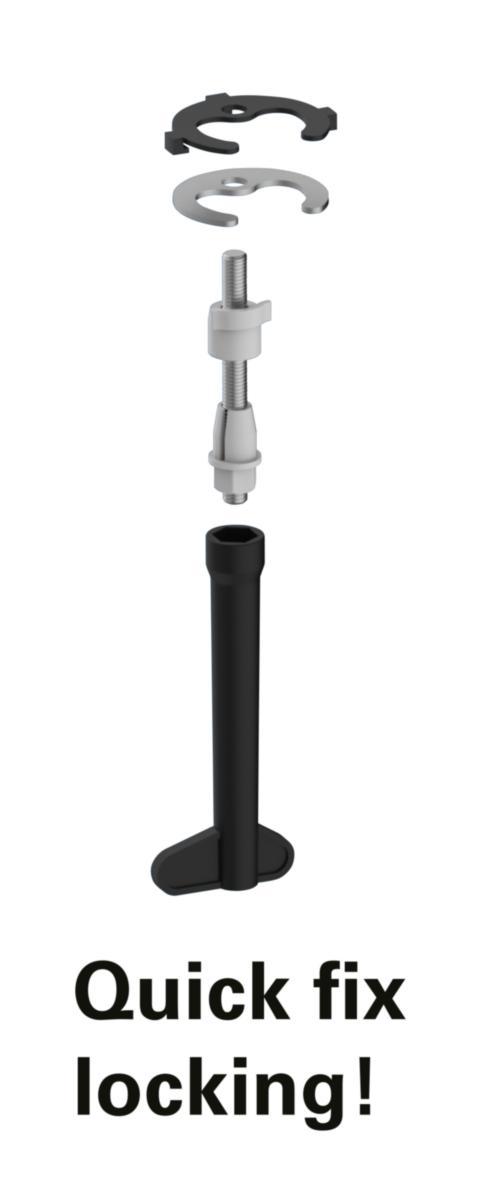

• With patented "Quickfix" for quick final assembly without additional tools
• Flexible connection hoses in metal braided Soft PEX®, with G10 running nut
• Manufactured in 4MS approved dezincification resistant brass alloy
• Surface treatment: Chrome-plated
• Washbasin mixer with energy- and water-saving constant-flow jet collector
• Energy class: A
• Cold start function that reduces unnecessary hot water flushing when the lever is opened straight.
• Ceramic control insert for temperature adjustment
• With patented "Quickfix" for quick final assembly without additional tools
• Flexible connection hoses in metal braided Soft PEX®, with G10 running nut
• Manufactured in 4MS approved dezincification resistant brass alloy
• Surface treatment: Chrome-plated
- Article number: 8278325
- Suppl. article no: 8278325
- Ean no: 7333123064592
- Replaces art.nbr: 8277792
- Material class PCK020
Technical data
- Packagin Size: 1 ST/10 ST
- Surface protection: Chromium-plated
- Surface treatment: Polished
- Mounting method: Top/tap hole
- Basic colour: Chrome
- Low-pressure model: No
- Connection supply: Hose (gland nut)
- Connection size supply: 3/8 inch (10)
- Spout overhang length: 115 mm
- Spout model: Fixed, bottom
- Type of spout: Pipe
- Accent colour: Chrome
- Max. tap capacity (at 300 kPa): 4.9 l/min
- With stop valve for external equipment: No
- With couplers: Yes
- With temperature limit: Yes
- Volume supply class: A
- Total construction height: 157 mm
- Construction height, underside of tap nozzle: 89 mm
- Cold start function: Yes
- Type approval according to BBR/EKS: Yes
- With spring-back resistance for max. flow: No
- With spring-back resistance for max. hot water temperature: No
- With override stop for flow limitation: No
- Number of tap holes: 1-hole
- Automatic cycle flushing: No
- Scald protection: Yes
- Reserve accumulator: No
- KIWA certified: Yes
- Can be disconnected under water pressure: No
- Max. supply temperature: 95 °C
- With drain plug: Yes
- With waste fitting: Yes
- With pre-filter: No
- With chain: No
- With side shower: No
- With transformer: No
- Extendible spout with hand shower: No
- Extendible spout with aerator: No
- Model: Mechanical
- Mounting: Top/tap hole
- Self-closing: No
- Flushing time adjustable: No
- Temperature limit retrofittable: No
- Type of waste fitting: Pop-up waste (click-clack)
- Type of grip: Single-grip
- Type of temperature control: Manually operated
- Tap nozzle: Foam jet nozzle
- Material tap: Brass
- Chain eye included: No
- REACH Date: 2023-01-27
- GWP-tot (A1-A3): 11,1196 kgCO2e/st
- REACH Information obligation: No
