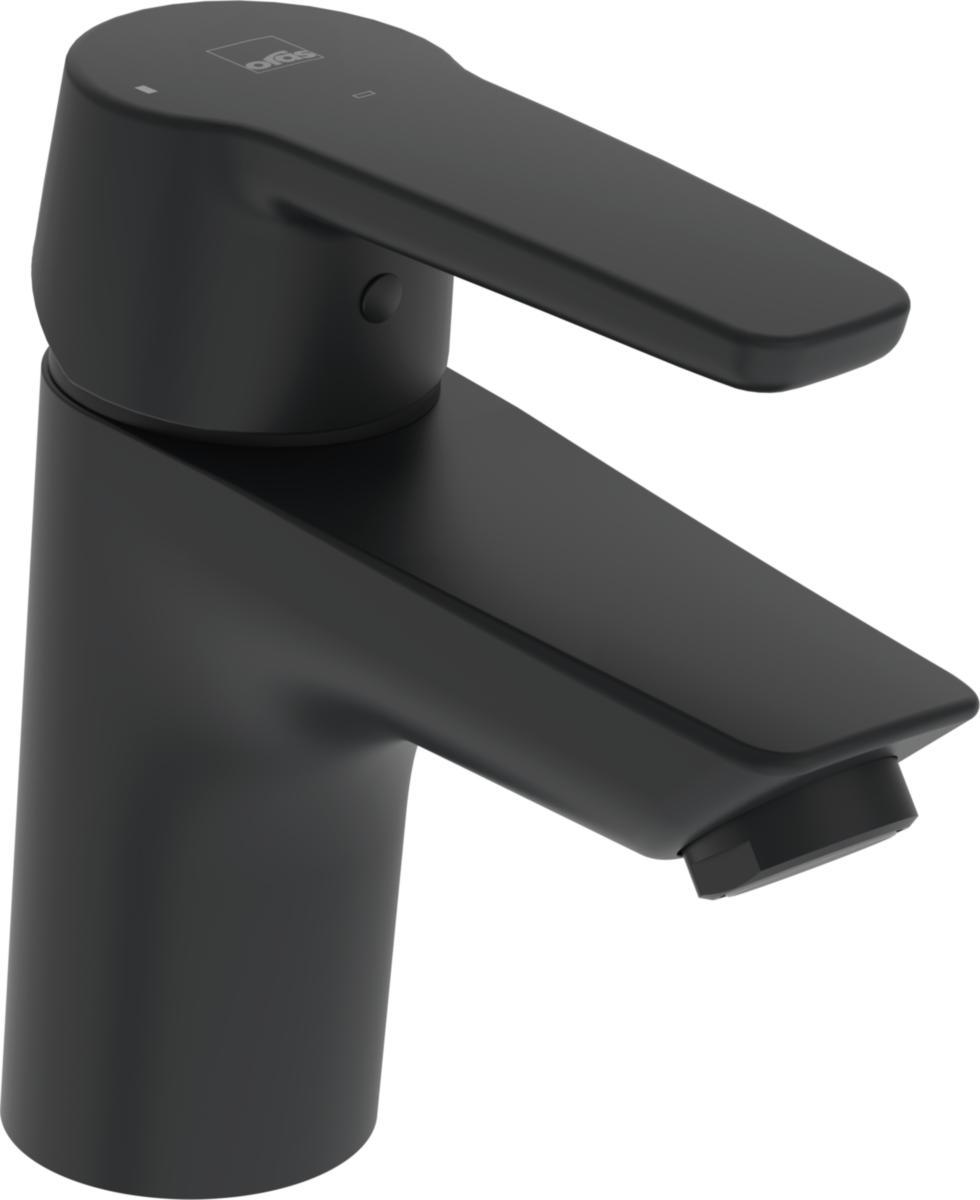

Washbasin mixer 1510F-105 Swea Oras

ORAS SWEA WASHBASIN MIXER MATTE BLACK, ENERGYCL. A
Artikelnummer:
8275664
Lev. artikelnr:
1510F-105-33





 för att se saldo och pris
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Undviks.
Washstand mixer with fixed outlet spout and jet collector. Built-in barrier for limiting temperature and flow. Cold start cassette, flow control with flow up to 5.0 l/min. F=flexible connection. G3/8" int.G. Energy class A. The product is assessed by Byggvarubedomningen. Made in 4MS approved brass alloy. The product does NOT have any limitation on the hot water side and meets BBR's requirements for tap water temperature without additional measures.
  • Article number:
    8275664
  • Suppl. article no:
    1510F-105-33
  • Ean no:
    6414150103131
  • Material class
    PCK130
Teknisk data
  • Surface protection: Coated
  • Surface treatment: Other
  • Basic colour: Black
  • Connection supply: Hose (gland nut)
  • Connection size supply: 3/8 inch (10)
  • Spout overhang length: 103 mm
  • Spout model: Fixed, bottom
  • Type of spout: Cast
  • Accent colour: Black
  • Max. tap capacity (at 300 kPa): 5 l/min
  • With temperature limit: Yes
  • Total construction height: 136 mm
  • Construction height, underside of tap nozzle: 70 mm
  • Cold start function: Yes
  • Sound class according to EN ISO 3822: Group I, <= 20 dB(A)
  • With override stop for flow limitation: Yes
  • Number of tap holes: 1-hole
  • KIWA certified: Yes
  • Max. supply temperature: 70 °C
  • With waste fitting: No
  • With side shower: No
  • Extendible spout with hand shower: No
  • Extendible spout with aerator: No
  • Model: Mechanical
  • Mounting: Top/tap hole
  • Locking mechanism: Cartouche, ceramic
  • Self-closing: No
  • Temperature limit retrofittable: Yes
  • Type of grip: Single-grip
  • Type of temperature control: Manually operated
  • Tap nozzle: Foam jet nozzle
  • Material tap: Brass
  • Backflow safeguard according to EN 1717: AA, free air gap
