Oras

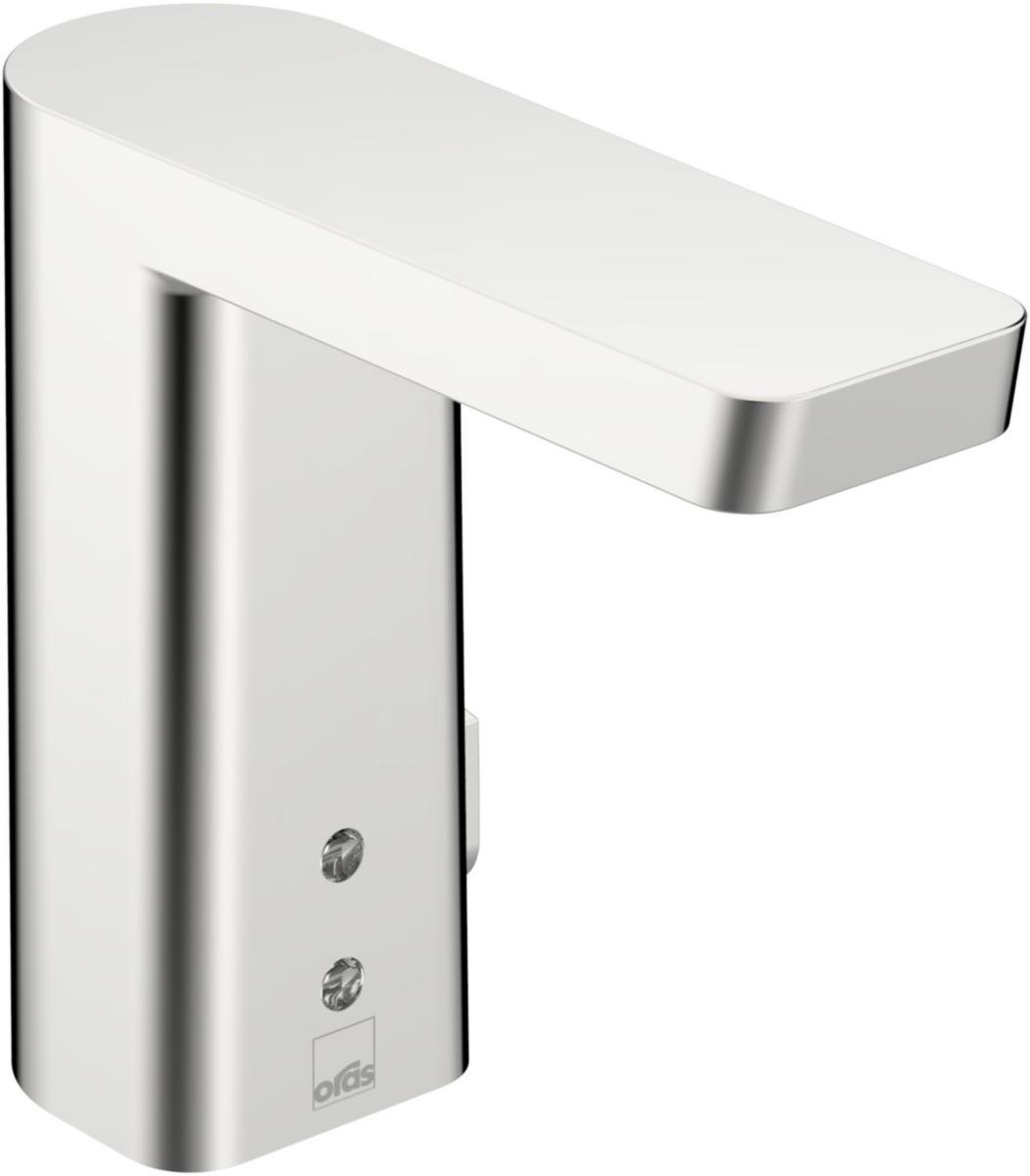

Washbasin mixer 4814FZ Oras Stela, touch-free
ORAS STELA WASHBASIN MIXER BATTERY 6V BLUETOOTH.4814Z
Article number: Suppl. article no:
8430642
4814FZ
to see price and stock
Non-contact washbasin mixer with temperature knob. Battery operation 6 V.
The mixer is equipped with a dirt filter, non-return valves, flexible connections and Oras Autofocus Bluetooth sensor which ensures that no adjustment of the mixer is necessary during installation.
The mixer's pilot valve reacts with the help of impulse technology, which gives the battery a long life.
The non-contact function in combination with a low flow (6 l / min) provides a very low water and energy consumption.
Bluetooth connection enables easy monitoring and adjustment of the mixer.
The mixer can be easily modified for preset temperature, maximum temperature or premixed water using the supplied parts.
The mixer is equipped with a dirt filter, non-return valves, flexible connections and Oras Autofocus Bluetooth sensor which ensures that no adjustment of the mixer is necessary during installation.
The mixer's pilot valve reacts with the help of impulse technology, which gives the battery a long life.
The non-contact function in combination with a low flow (6 l / min) provides a very low water and energy consumption.
Bluetooth connection enables easy monitoring and adjustment of the mixer.
The mixer can be easily modified for preset temperature, maximum temperature or premixed water using the supplied parts.
- Article number: 8430642
- Suppl. article no: 4814FZ
- Ean no: 6414150097089
- Material class PCM13B
Technical data
- Packagin Size: 1 ST/5 ST
- Connection size supply: 3/8 inch (10)
- Connection supply: Hose (gland nut)

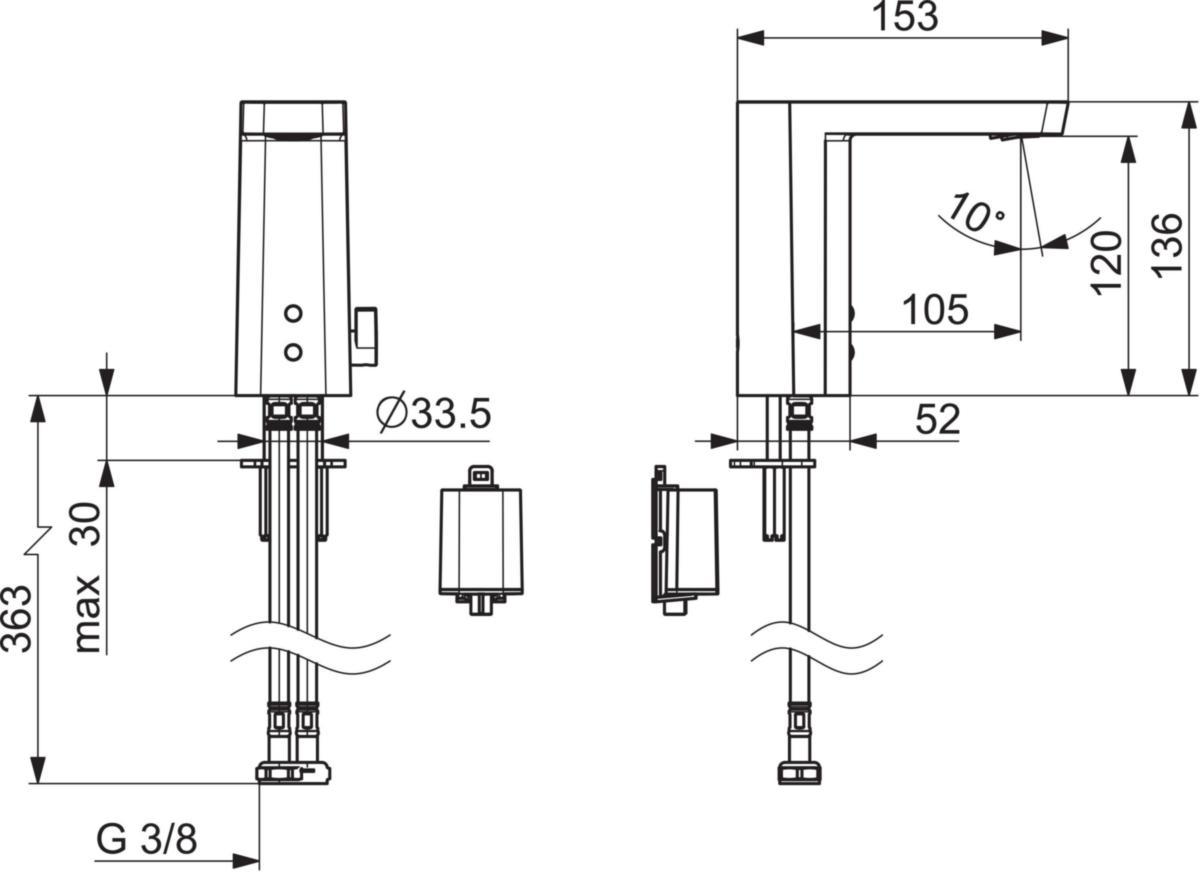

- Construction height, underside of tap nozzle: 136 mm
- Basic colour: Chrome
- Spout overhang length: 105 mm
- With temperature limit: Yes
- Backflow safeguard according to EN 1717: EB
- Spout model: Fixed, bottom
- Type of spout: Cast
- Surface treatment: Polished
- Surface protection: Chromium-plated
- Max. tap capacity (at 300 kPa): 6 l/min
- Number of tap holes: 1-hole
- Sound class according to EN ISO 3822: Group I, <=20 dB(A)
- Material tap: Brass
- Temperature limit retrofittable: Yes
- Type of power supply: Battery
- Connection voltage: 6 V
- Automatic cycle flushing: Yes
- Operating distance: 60-110 mm
- Degree of protection (IP): IP55
- With pre-filter: Yes
- Programming: Remote control
- Self-closing: Yes
- Flushing time adjustable: Yes
- Type of electronic operating method: Sensor
- Type of temperature control: Manually operated
- Tap nozzle: Foam jet nozzle
- Mounting method: Top/tap hole
- Flushing time: 1-2 s
- REACH Date: 2022-05-06
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
