Oras

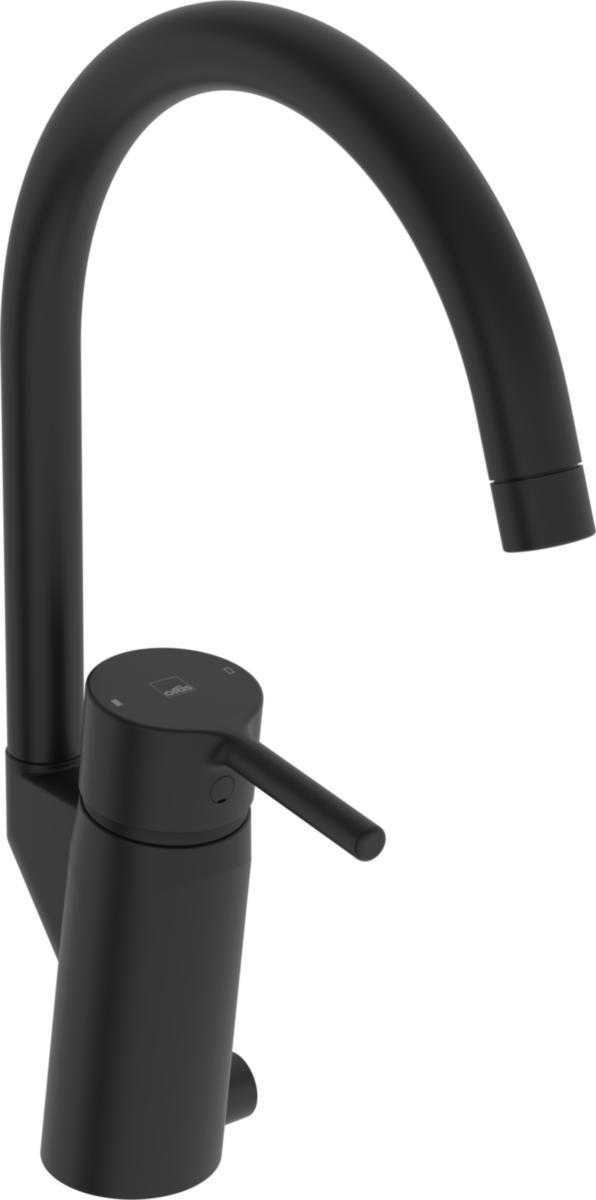

Kitchen faucet 2839FN-33 Oras Optima
ORAS OPTIMA KITCHEN MIXER W. EDWV, MATTEBLACK
Article number: Suppl. article no:
8312102
2839FN-33
to see price and stock
Matte black kitchen mixer with electronic shut-off valve 3V battery operation, automatic shut-off 4/12 hours. One-touch operation via stick lever, high swiveling C outlet spout and jet collector. The swivel radius of the outlet spout is preset to 120° (can be limited to 0°/60°/360°) Built-in barrier for limiting temperature and flow via the Oras 4.0 ceramic cassette.
F = flexible connection.
F = flexible connection.
- Article number: 8312102
- Suppl. article no: 2839FN-33
- Ean no: 6414150102448
- Material class PCM130
Technical data
- With stop valve for external equipment: Yes
- Connection supply: Hose (gland nut)
- Connection size supply: 3/8 inch (10)
- Type of stop valve for external equipment: Electronic
- Basic colour: Black
- Spout model: Rotating, top
- Surface protection: Coated
- Surface treatment: Other
- Type of spout: Pipe
- With couplers: Yes
- With temperature limit: Yes

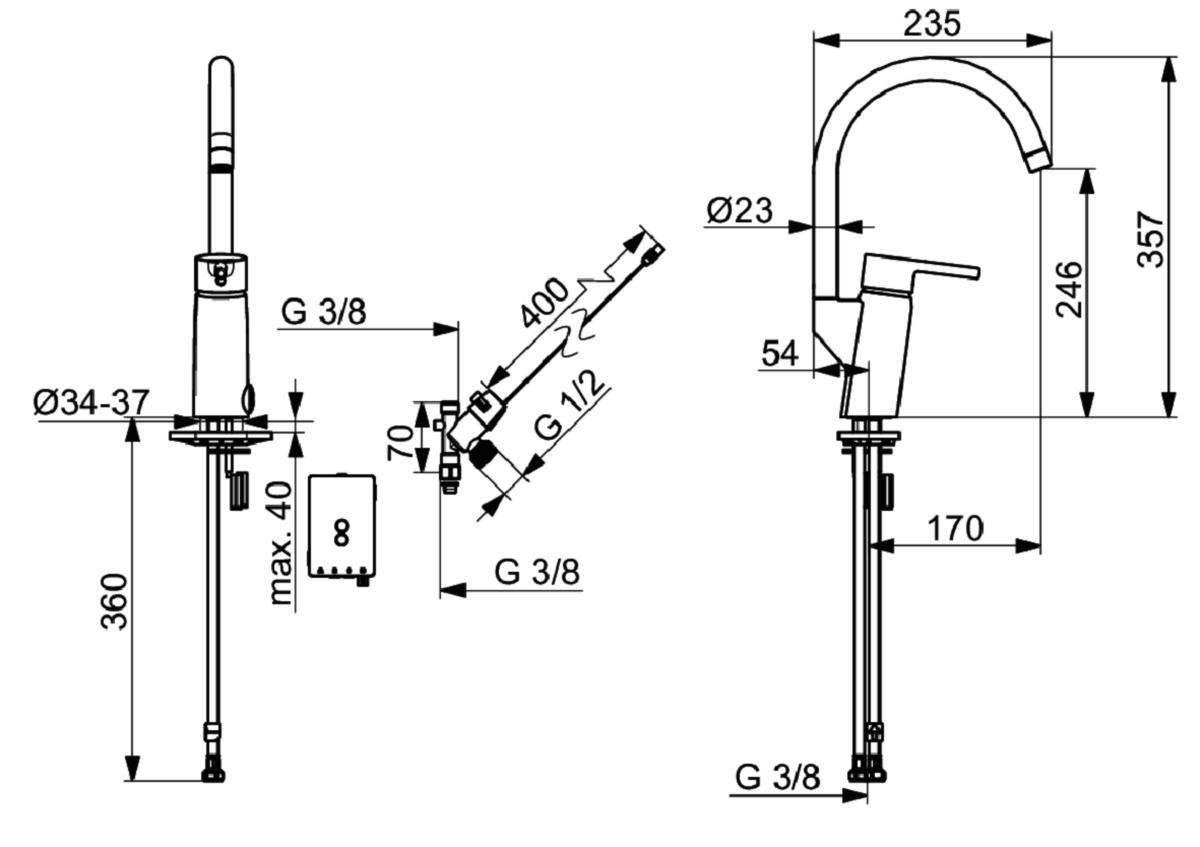

- Total construction height: 357 mm
- Construction height, underside of tap nozzle: 246 mm
- Spout overhang length: 170 mm
- Can be disconnected under water pressure: No
- Max. tap capacity (at 300 kPa): 10.8 l/min
- Sound class according to EN ISO 3822: Group I, <= 20 dB(A)
- Connection voltage: 3 V
- Number of tap holes: 1-hole
- Degree of protection (IP): IP55
- Suitable for boiling water: No
- Material tap: Brass
- Max. supply temperature: 70 °C
- Model: Mechanical
- Mounting: Top/tap hole
- Possibility to limit the max. turning radius of the spout: Yes
- Flushing time adjustable: Yes
- Temperature limit retrofittable: Yes
- Type of electronic operating method: Touch control/push button
- Type of grip: Single-grip
- Type of power supply: Battery
- Type of temperature control: Manually operated
- Spout turning radius: 0-120 °
- Tap nozzle: Foam jet nozzle
- Backflow safeguard according to EN 1717: AA, free air gap
- GWP-tot (A1-A3): 17,0779 kgCO2e/ST
