Gustavsberg

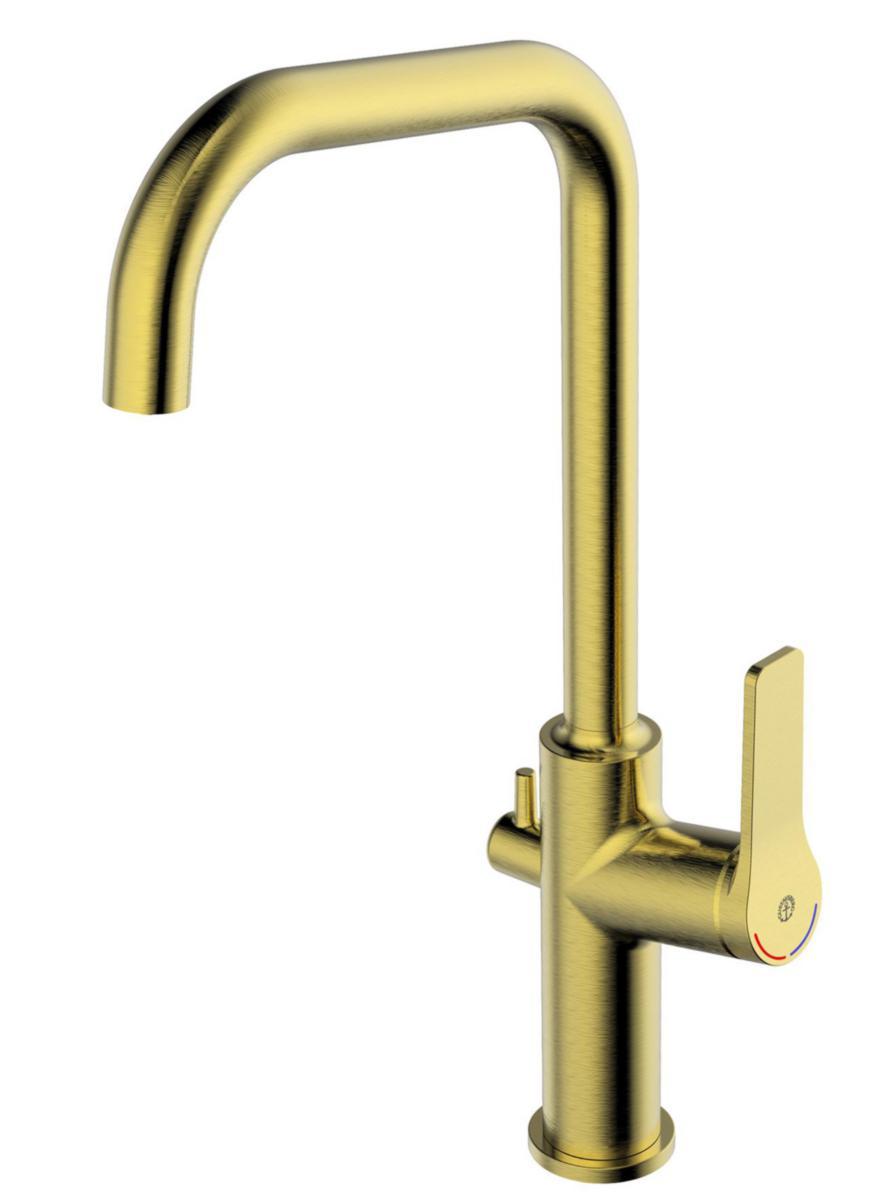

Kitchen Mixer Epic with Shut-off, Gustavsberg
GBG EPIC KITCHEN MIXER W.DW VALVE. HIGH SPOUT BRASS
Article number: Suppl. article no:
8311190
GB41209996 24
to see price and stock
• Ceramic seal for drip protection and long service life
• Eco-flow for water and energy efficiency
• Lever with clear color marking for hot and cold water
• All components in food-grade materials
Swivel spout 110 °
• Adjustable maximum temperature for increased scald protection
• Type-approved flexible water connection with 3/8
• Backflow protection according to SS-EN 1717 [AA]
• Available in chrome, matt black and brushed brass
• Eco-flow for water and energy efficiency
• Lever with clear color marking for hot and cold water
• All components in food-grade materials
Swivel spout 110 °
• Adjustable maximum temperature for increased scald protection
• Type-approved flexible water connection with 3/8
• Backflow protection according to SS-EN 1717 [AA]
• Available in chrome, matt black and brushed brass
- Article number: 8311190
- Suppl. article no: GB41209996 24
- Ean no: 7393792233835
- Material class PCM120
Technical data
- Packagin Size: 1 ST/4 ST
- With stop valve for external equipment: Yes
- Connection supply: Hose (gland nut)
- Connection size supply: 3/8 inch (10)
- Type of stop valve for external equipment: Mechanical
- Basic colour: Brass
- Spout model: Rotating, top
- Surface protection: Coated
- Surface treatment: Brushed
- Type of spout: Pipe
- Low-pressure model: No
- Total construction height: 420 mm
- Construction height, underside of tap nozzle: 340 mm
- Spout overhang length: 200 mm
- Max. tap capacity (at 300 kPa): 9.36 l/min
- Type approval according to BBR/EKS: Yes
- Cold start function: No
- Sound class according to EN ISO 3822: Group II, <= 30 dB(A)
- With spring-back resistance for max. hot water temperature: No
- With override stop for flow limitation: Yes
- Number of tap holes: 1-hole
- Suitable for boiling water: No
- Material tap: Brass
- Max. supply temperature: 80 °C
- With drain plug: No
- Mounting: Top/tap hole
- Locking mechanism: Top section, ceramic
- Type of grip: Single-grip
- Type of temperature control: Manually operated
- Tap nozzle: Foam jet nozzle
- Backflow safeguard according to EN 1717: AA, free air gap
- REACH Date: 2023-04-05
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
