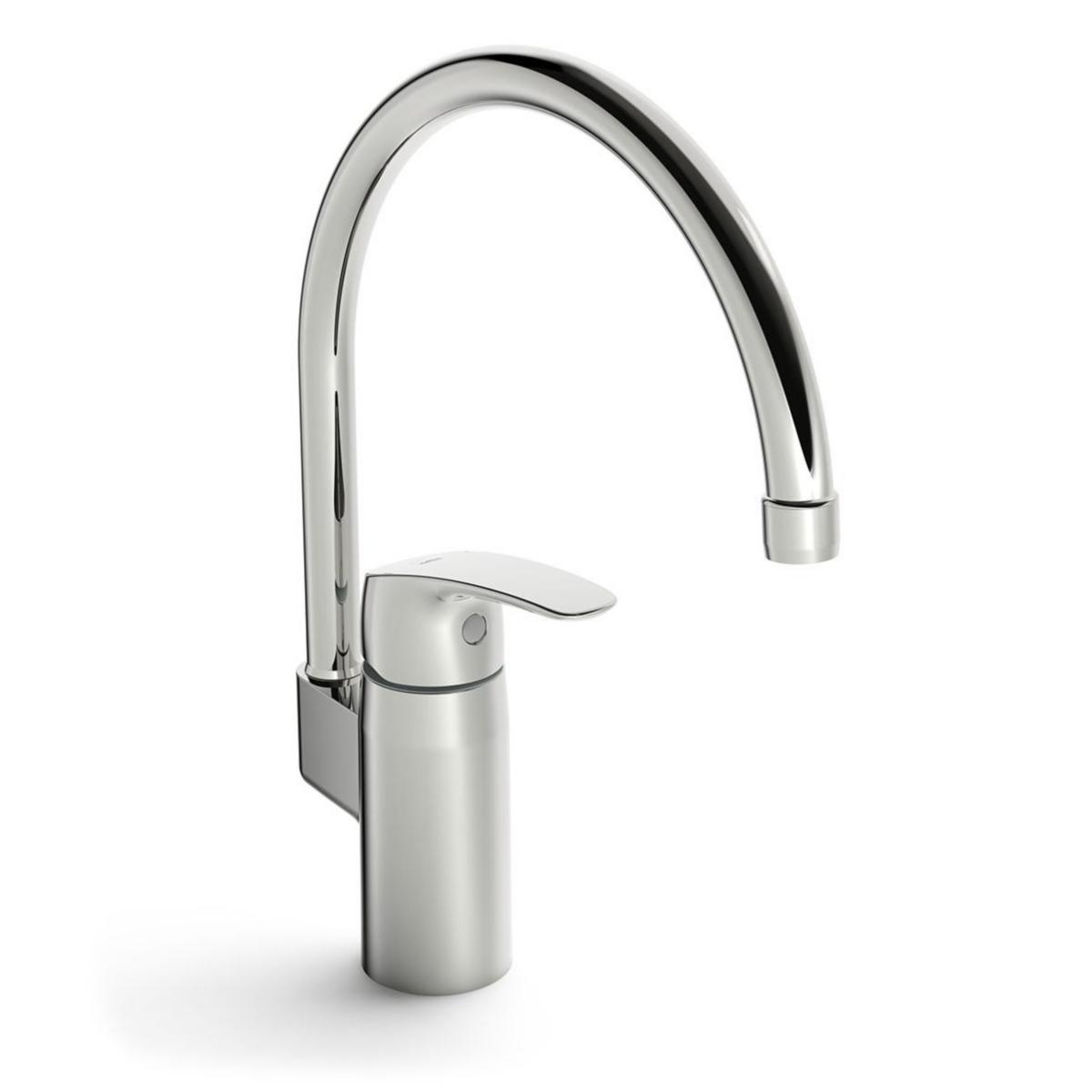

Kitchen Mixer 1038F Oras Safira
ORAS SAFIRA KITCHEN MIXER 1038F
Article number: Suppl. article no:
8310573
1038F
to see price and stock
Kitchen mixer, single lever with high spout, without dishwasher shut-off. User-friendly lever bracket for all types of applications. Built-in lock to limit temperature and flow. Flexible connection
- Article number: 8310573
- Suppl. article no: 1038F
- Ean no: 6414150078927
- Replaces art.nbr: 8347458 8347957
- Material class PCK13B
Technical data
- Packagin Size: 1 ST/10 ST
- With stop valve for external equipment: No
- Connection supply: Hose (gland nut)
- Connection size supply: 3/8 inch (10)
- Basic colour: Chrome
- Spout model: Rotating, top
- Surface protection: Chromium-plated
- Surface treatment: Polished
- Mounting method: Top/tap hole
- Accent colour: Chrome
- With diverter unit: No
- With temperature limit: Yes
- Low-pressure model: No
- Total construction height: 338 mm
- Construction height, underside of tap nozzle: 206 mm
- Spout overhang length: 178 mm
- Can be disconnected under water pressure: No
- Tap can be folded in (bayonet): No
- Max. tap capacity (at 300 kPa): 12 l/min
- Cold start function: Yes
- With override stop for flow limitation: Yes
- Number of tap holes: 1-hole
- Suitable for boiling water: No
- Material tap: Brass
- Extendible side shower: No
- Extendible spout with hand shower: No
- Extendible spout with aerator: No
- Mounting: Top/tap hole
- Locking mechanism: Cartouche, ceramic
- Type of grip: Single-grip
- Type of temperature control: Manually operated
- Tap nozzle: Foam jet nozzle
- Backflow safeguard according to EN 1717: AA, free air gap
- REACH Date: 2022-05-06
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
