Trio

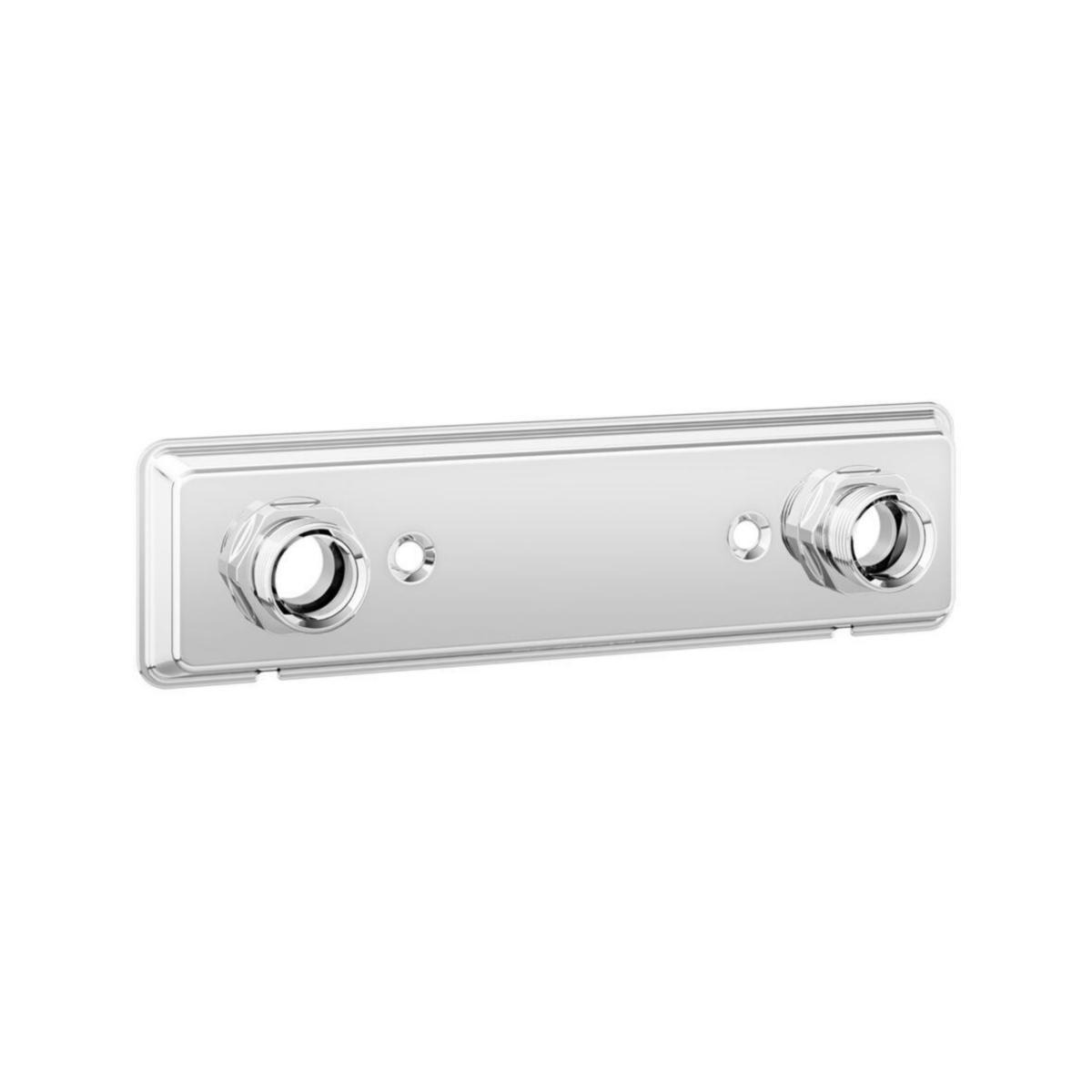

Mixer bracket 150 c/c, concealed piping lead-free, Trio
TRIO MIXER BRACKET 150C/C 15/12 CU
Article number: Suppl. article no:
8265219
8265219
to see price and stock
Stainless steel, polished mixer bracket 150cc, which is intended for concealed piping.
Connects with G20 to the mixer.
Including detachable couplings and plumbing screw included.
Adapted to new industry rules 2021 with space for waterproofing.
Dimensions: 220x60 mm. Screw hole 90cc.
Connects with G20 to the mixer.
Including detachable couplings and plumbing screw included.
Adapted to new industry rules 2021 with space for waterproofing.
Dimensions: 220x60 mm. Screw hole 90cc.
- Article number: 8265219
- Suppl. article no: 8265219
- Ean no: 7320129780113
- Material class PCO13B
Technical data
- Packagin Size: 1 ST/15 ST
- Centre-to-centre distance of connections: 150 mm
- Connection: External thread cylindrical BSPP-G (ISO 228-1)
- Suitable for pipe diameter: 12 mm
- Connection sizes: 3/4 inch (20)
- Type of pipe connection: Concealed
- System specific: No
- Colour: Chrome
- Material: Stainless steel
- Surface treatment: Polished
- Number of connection points: 2
- Width mounting plate: 220 mm
- Depth mounting plate: 14 mm
- Shape: Rectangular
- Height mounting plate: 60 mm
- Suitable for plastic multi-layer pipes: No
- Suitable for copper tube: Yes
- Suitable for plastic tube: No
- With stop valve: No
- Surface finishing: Glossy
- Wall thickness: 1.0 mm
- Free radial space for protective tube/waterproofing membrane (width): 37 mm
- Free axial space for protective tube/waterproofing membrane (depth): 9 mm
- Type approval according to BBR/EKS: Yes
- REACH Date: 2023-04-17
- Design: 12-15 Cu
- REACH Information obligation: No
