Trio

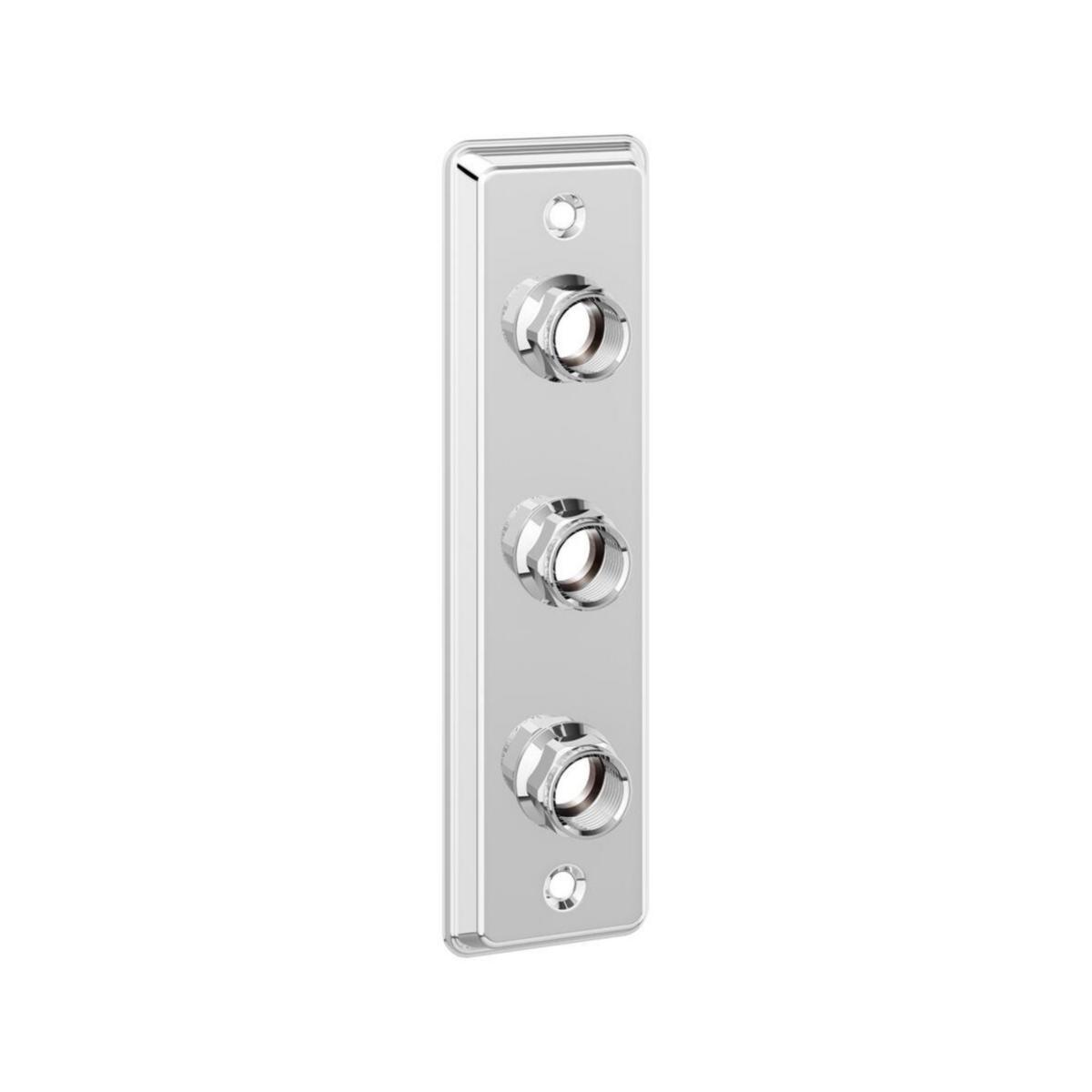

Wall plate 3-hole 60cc A-Pex, Trio
TRIO WALL BRACKET TRIPLE 60C/C G15-ø15PEX.STAINLESS. POL.
Article number: Suppl. article no:
8505117
8505117
to see price and stock
Stainless steel triple wall washer with internal thread G15.
Including detachable couplings for Pex / alupex / Pb pipes and plumbing screws.
Adapted to new industry rules 2021 with space for waterproofing and 60 cc installations.
Tray dimensions: 220 × 60 mm. Screw hole 180 cc.
Including detachable couplings for Pex / alupex / Pb pipes and plumbing screws.
Adapted to new industry rules 2021 with space for waterproofing and 60 cc installations.
Tray dimensions: 220 × 60 mm. Screw hole 180 cc.
- Article number: 8505117
- Suppl. article no: 8505117
- Ean no: 7320129780526
- Material class PCO13B
Technical data
- Packagin Size: 1 ST/30 ST
- Centre-to-centre distance of connections: 60 mm
- Connection: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection sizes: 1/2 inch (15)
- Type of pipe connection: Concealed
- System specific: No
- Colour: Stainless steel
- Surface protection: Other
- Material: Stainless steel
- Surface treatment: Untreated
- Number of connection points: 3
- Width mounting plate: 60 mm
- Depth mounting plate: 14 mm
- Shape: Rectangular
- Height mounting plate: 220 mm
- Suitable for plastic multi-layer pipes: No
- Suitable for copper tube: No
- Suitable for plastic tube: Yes
- With stop valve: No
- Surface finishing: Glossy
- Wall thickness: 2.5 mm
- Suitable for pipe diameter: 15 mm
- Free radial space for protective tube/waterproofing membrane (width): 37 mm
- Free axial space for protective tube/waterproofing membrane (depth): 9 mm
- Type approval according to BBR/EKS: Yes
- REACH Date: 2023-04-17
- REACH Information obligation: No
