Trio

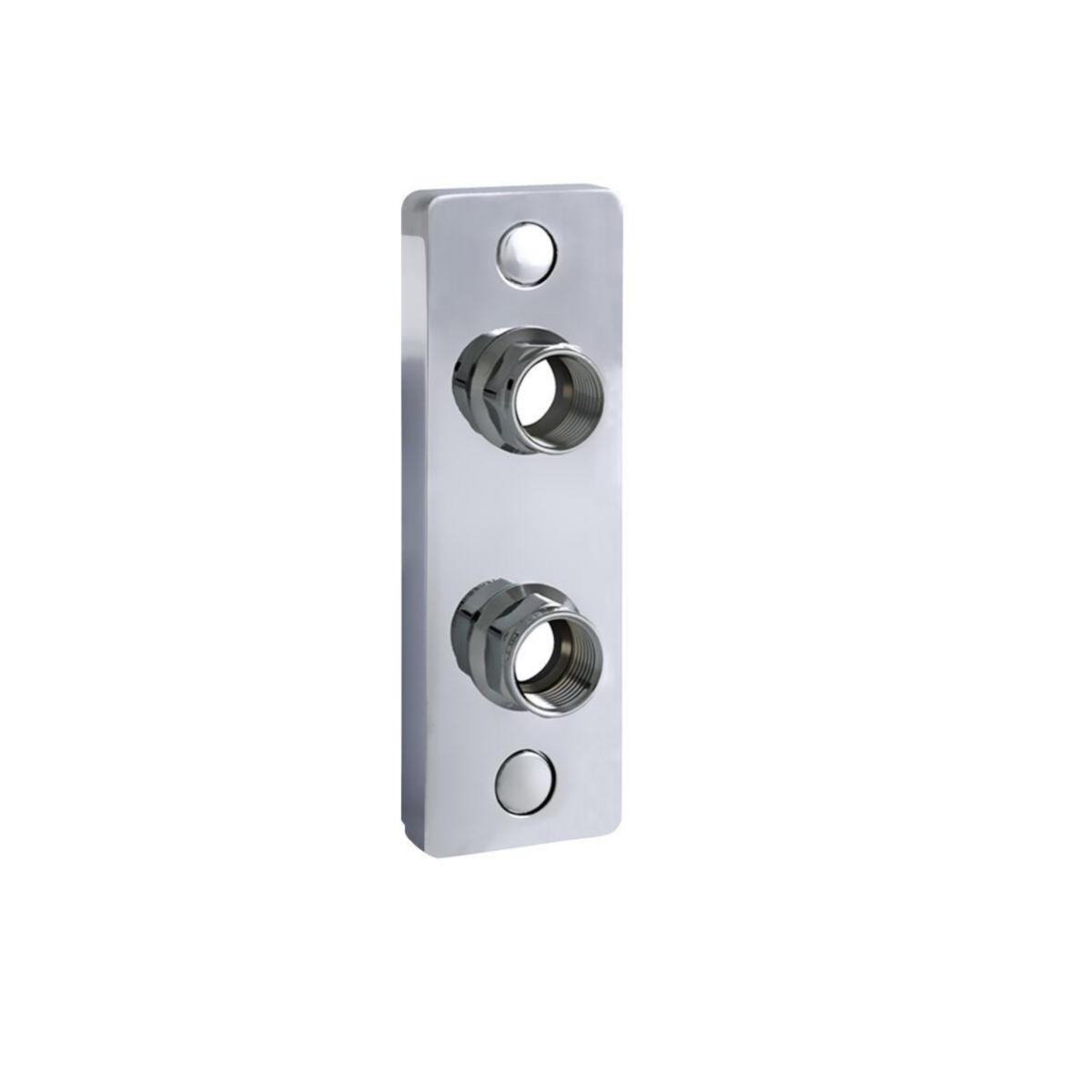

Wall plate 2-hole 60cc A-Pex Design Line, Trio
TRIO WALL BRACKET DOUBLE 60C/C DESIGN LINE.G15-ø15 PEX. CR.
Article number: Suppl. article no:
8505102
8505102
to see price and stock
Lead-free and chrome-plated wall washer with internal play nut, for two pipes. Intended for Pex / alupex / Pb pipes x G15.
Detachable couplings and plumbing screw included.
Adapted to the new industry rules 2021, with space for waterproofing and 60 cc installations.
Screw hole: 120cc. Dimensions: 150x50 mm.
Detachable couplings and plumbing screw included.
Adapted to the new industry rules 2021, with space for waterproofing and 60 cc installations.
Screw hole: 120cc. Dimensions: 150x50 mm.
- Article number: 8505102
- Suppl. article no: 8505102
- Ean no: 7320129780458
- Material class PCO13B
- This is an alternative to item 8531930
Technical data
- Packagin Size: 1 ST/30 ST
- Centre-to-centre distance of connections: 60 mm
- Connection: Internal thread cylindrical BSPP-G (ISO 228-1)
- Suitable for pipe diameter: 15 mm
- Connection sizes: 1/2 inch (15)
- Type of pipe connection: Concealed
- System specific: No
- Colour: Chrome
- Surface protection: Chromium-plated
- Material: Other
- Surface treatment: Polished
- Number of connection points: 2
- Width mounting plate: 50 mm
- Depth mounting plate: 14 mm
- Shape: Rectangular
- Height mounting plate: 150 mm
- Suitable for plastic multi-layer pipes: No
- Suitable for copper tube: No
- Suitable for plastic tube: Yes
- With stop valve: No
- Surface finishing: Glossy
- Wall thickness: 2.5 mm
- Suitable for pipe diameter: 15 mm
- Free radial space for protective tube/waterproofing membrane (width): 37 mm
- Free axial space for protective tube/waterproofing membrane (depth): 9 mm
- Type approval according to BBR/EKS: Yes
- REACH Date: 2023-04-17
- REACH Information obligation: No
