Distributor 2 chrome-plated with ball valve 60cc, Trio
TRIO DISTRIBUTOR 2 W. VALVE 60 CC. CHROMED
Artikelnummer: Lev. artikelnr:
8505058
8505058
för att se saldo och pris

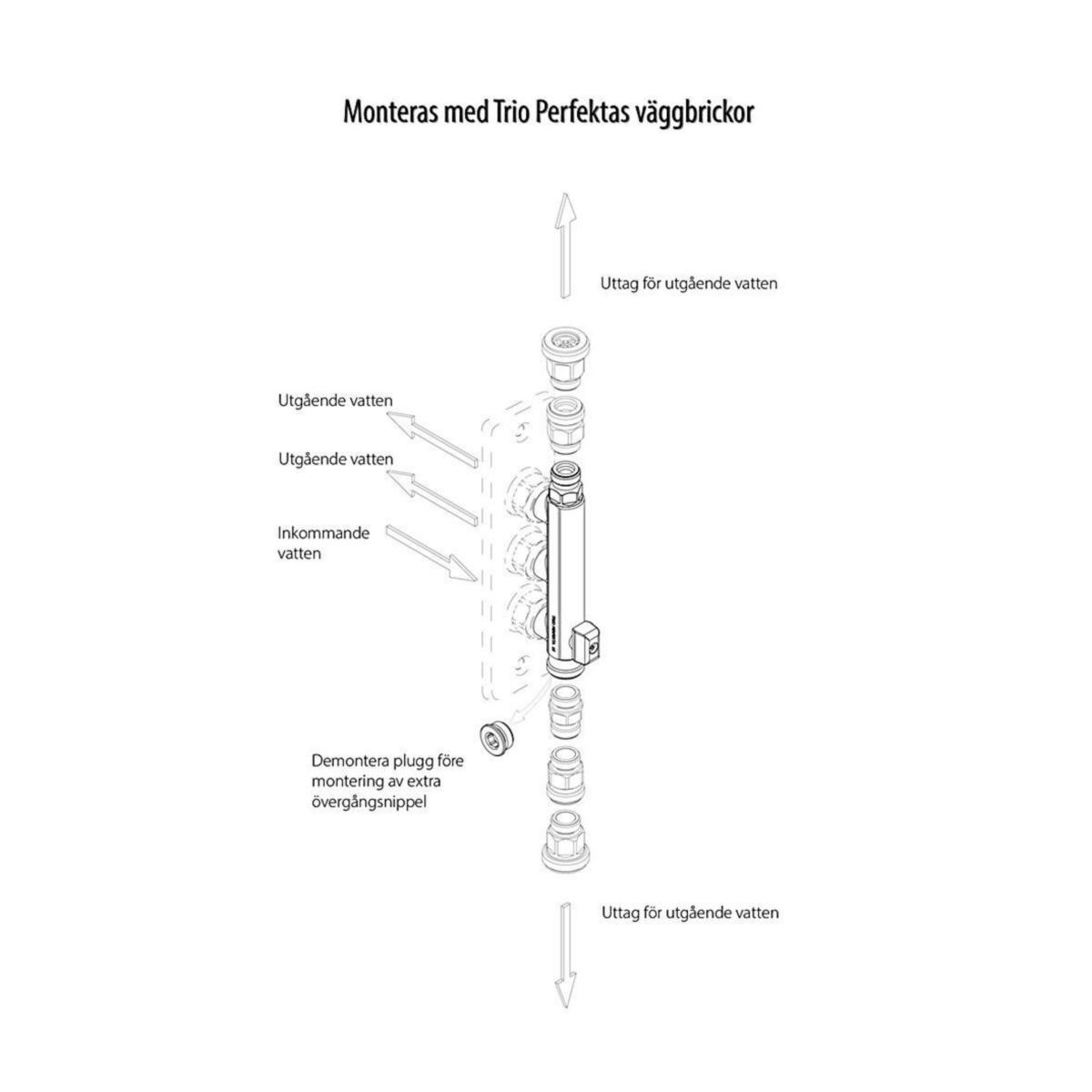

Distributor 2-way, 60cc intended for mounting on a wall washer with G15 connection.
With G10 external thread on top for connection of eg half coupling or connection hose with playful nut and flat gasket. Chrome-plated. In lead-free dezincification-resistant brass.
Nipples in dimensions G10, G15 and G20 are available as accessories.
With G10 external thread on top for connection of eg half coupling or connection hose with playful nut and flat gasket. Chrome-plated. In lead-free dezincification-resistant brass.
Nipples in dimensions G10, G15 and G20 are available as accessories.
- Article number: 8505058
- Suppl. article no: 8505058
- Ean no: 07320129710158
- Material class PCO13B
- This is an alternative to item 8504997
Teknisk data
- Packagin Size: 1 ST/50 ST
- Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection branches: Internal thread cylindrical BSPP-G (ISO 228-1)
- Number of branches: 2
- Number of branching directions: 1
- Deviant distance between branches: No
- Width: 21 mm
- Nominal diameter connection 1: 3/8 inch (10)
- Nominal diameter connection 2: 3/8 inch (10)
- Nominal diameter branches: 1/2 inch (15)
- Depth: 47 mm
- Suitable for glycol: No
- Suitable for tap water: Yes
- Suitable for compressed air: No
- Suitable for central heating water: Yes
- Material: Brass
- Material quality: Dezincification resistant brass (DZR)
- With de-aeration: No
- With shut-off valve: Yes
- With legs: No
- With insulation: No
- With mounting material: No
- With filling/drain tap: No
- With wall-mounting bracket: No
- Mounting method: Surface mounting
- System specific: No
- Article compression class: PN 10
- Surface protection: Chromium-plated
- Distance between offset: 60 mm
- Height: 118 mm
- Length distributor: 118 mm
- Max. medium temperature (continuous): 90 °C
- REACH Date: 2023-04-17
- REACH Information obligation: No
