Trio

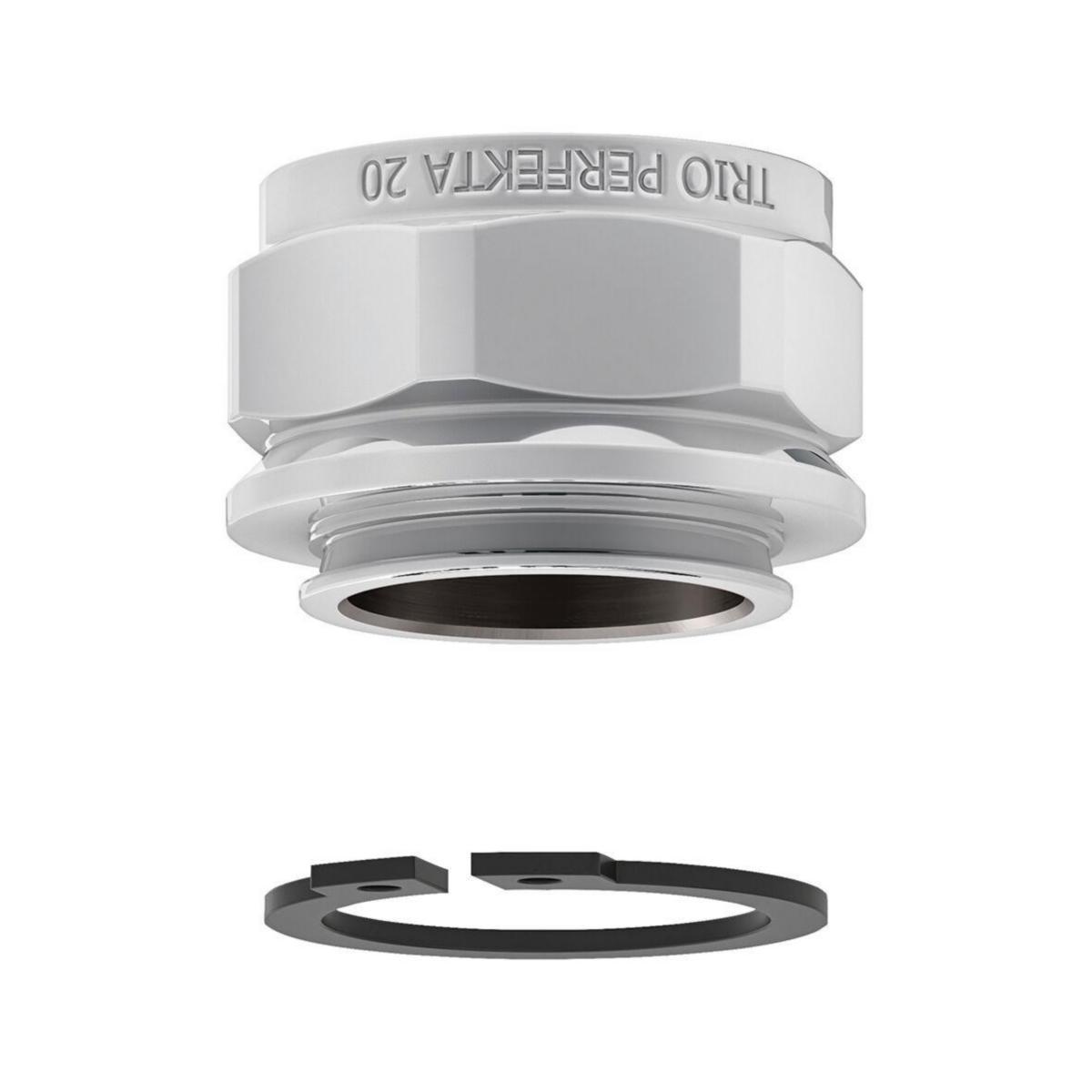

Coupling nut Chrome, Trio
TRIO CLUTCH NUT F.BRACKET G20X20MM, LF, CHROME
Article number: Suppl. article no:
1962060
1962060
to see price and stock
Chrome-plated and lead-free coupling nut G20 x 20 mm for plastic pipe for mounting on wall plate. For a complete product, the nut is supplemented with a coupling kit for 20 mm plastic pipe, RSK 1962053, 1962054 or 1962055 depending on which pipe dimension is used
- Article number: 1962060
- Suppl. article no: 1962060
- Ean no: 7320129710141
- Material class PCO13B
Technical data
- Packagin Size: 1 PCS/200 PCS
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection 1: 3/4 inch (20)
- Surface protection connection 1: Chromium-plated
- Material connection 1: Brass
- Shape: Straight
- Length: 22 mm
- Material quality connection 1: CuZn21Si3P (CW724R)
- Model: 1-part
- Length of connection 1: 12 mm
- Wrench width: 30 mm
- Type approval according to BBR/EKS: Yes
- REACH Date: 2024-05-20
- REACH Information obligation: No
