Trio
Connecting part T-tube Chrome, Trio
TRIO COUPLING PART, TEE F.60C/C, G15XG15XG15, LF, CHR.
Article number: Suppl. article no:
1962057
1962057
to see price and stock

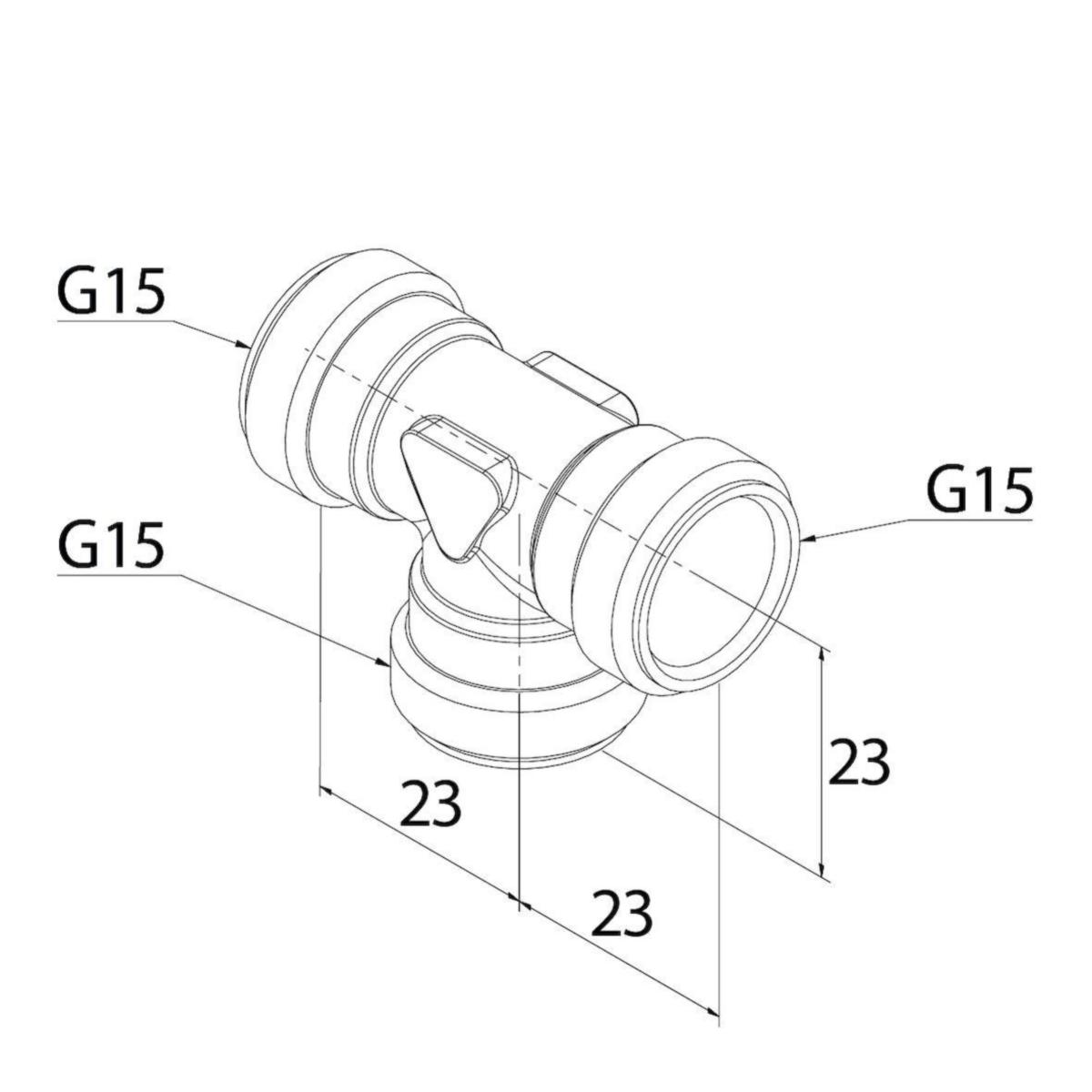

Chrome-plated and lead-free coupling part, T-tube G15 x G15 x G15 with construction dimensions for 60 cc installations. Used together with double nut to build your own distributor solution.
- Article number: 1962057
- Suppl. article no: 1962057
- Ean no: 7320129710172
- Material class PCO13B
Technical data
- Packagin Size: 1 PCS/200 PCS
- Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 3: External thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection 1: 1/2 inch (15)
- Nominal diameter connection 2: 1/2 inch (15)
- Nominal diameter connection 3: 1/2 inch (15)
- Material connection 1: Brass
- Material connection 2: Brass
- Material connection 3: Brass
- Surface protection connection 1: Chromium-plated
- Surface protection connection 2: Chromium-plated
- Surface protection connection 3: Chromium-plated
- Model: T-piece
- Material quality connection 1: CuZn21Si3P (CW724R)
- Material quality connection 3: CuZn21Si3P (CW724R)
- Material quality connection 2: CuZn21Si3P (CW724R)
- Angle: 90 °
- Length of connection 1: 8 mm
- Length of connection 2: 8 mm
- Length of connection 3: 8 mm
- Wrench width: 16 mm
- Type approval according to BBR/EKS: Yes
- REACH Date: 2024-05-20
- REACH Information obligation: No
