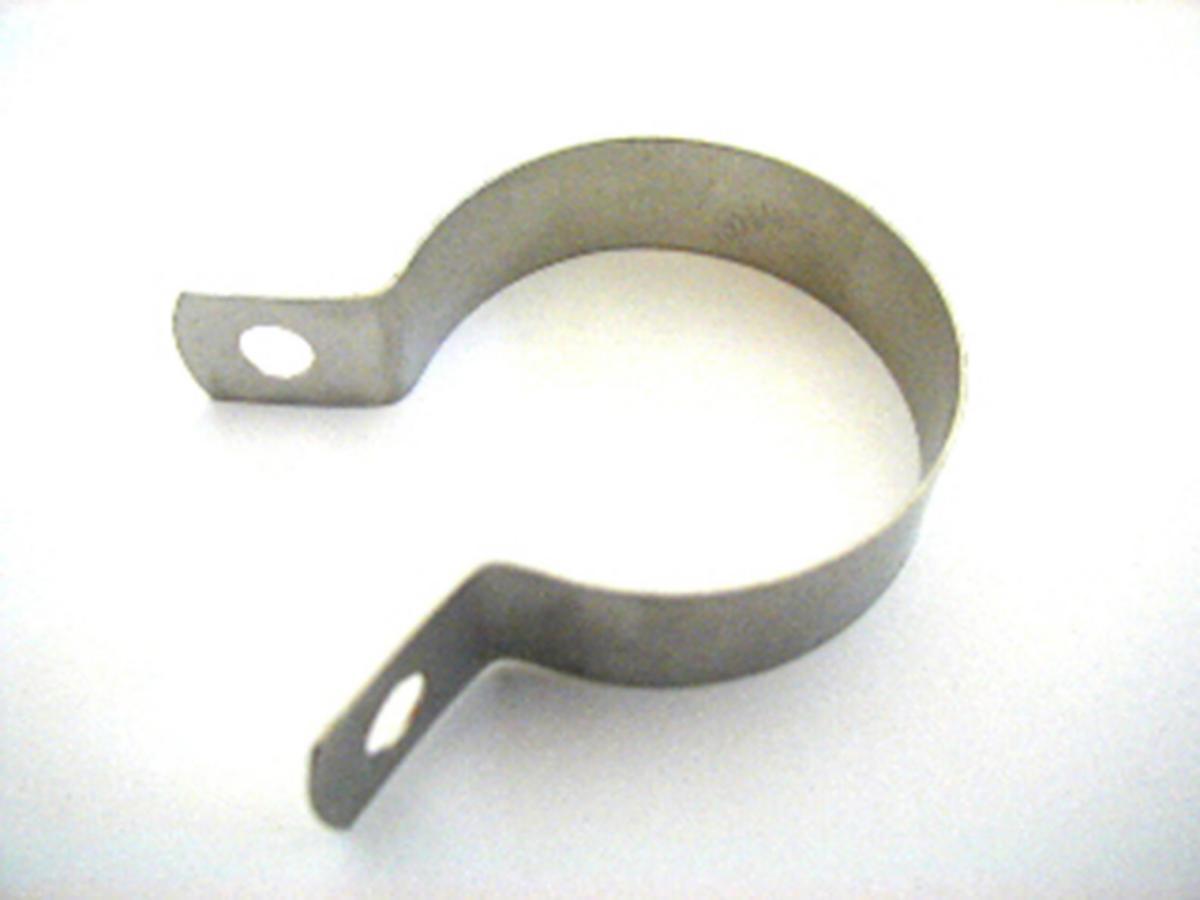

Stainless steel clamp sleeve 316L
CLAMP R2343 110 0
Article number:
3804863
to see price and stock
- Article number: 3804863
- Material class PLG120
Technical data
- Outer pipe diameter: 110 mm
- Hole diameter: 9 mm
- Bandwidth: 20 mm
- Material thickness: 1.0 mm
- Corrosiveness class: C5-I
- Recommended screw: 8x30
- Material: Stainless steel
- Suitable for copper tube: Yes
- Suitable for plastic tube: Yes
- Suitable for stainless steel tube: Yes
- Suitable for thin-walled pipe: Yes
- Connection facility: Hole
- Suitable for aluminium tube: Yes
- Suitable for steel tube: Yes
- Max. medium temperature (continuous): 110 °C
- Min. medium temperature (continuous): -45 °C
- Dimension other: 20x1.0 mm
