Rubber-Coated M8/M10 Clips 272, Stainless Steel 316L, Jirva
CLAMP 801 SS 316L 108-114 RUBBER LINED M8/M10. JIRVA
Article number:
19034165
to see price and stock
Stainless acid-proof 316L split clamp with 2 supplied screws, of which one is equipped with quick release. Size 10-12 with one screw closing.
Connection thread combined M8 or combined M8/M10–thread or M10. Rubber profile of aging-resistant EPDM rubber, 20x4,5/7,5mm.
Temperature-resistant between –50°C and +110°C. Recommended maximum load up to the 91mm size is 1.0 kN, and for the 220 size, 1.5 kN.
Connection thread combined M8 or combined M8/M10–thread or M10. Rubber profile of aging-resistant EPDM rubber, 20x4,5/7,5mm.
Temperature-resistant between –50°C and +110°C. Recommended maximum load up to the 91mm size is 1.0 kN, and for the 220 size, 1.5 kN.
- Article number: 19034165
- Material class PLF120

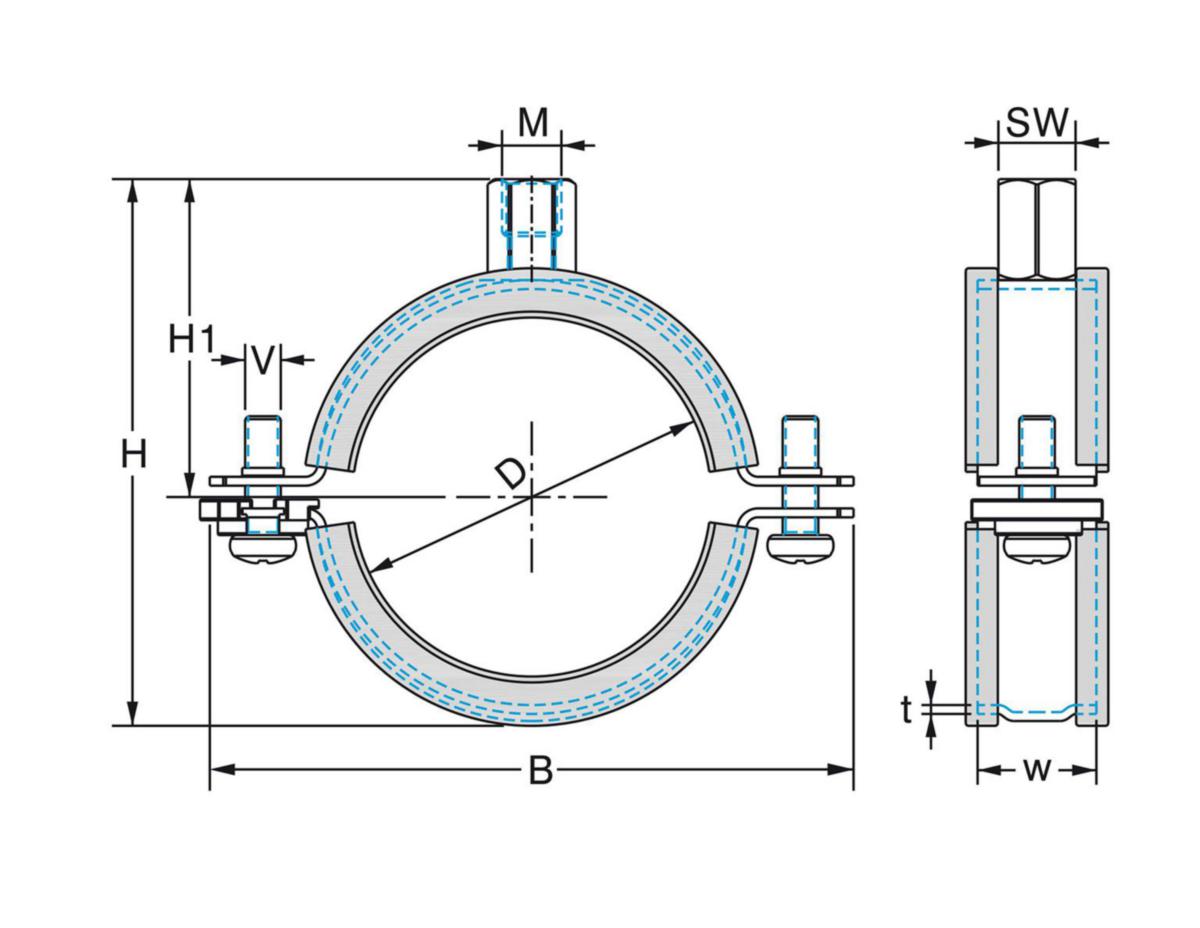

Technical data
- Packagin Size: 1 ST/25 ST
- Outer pipe diameter: 108-114 mm
- Width: 20 mm
- Material thickness: 2.0 mm
- Corrosiveness class: C5-I
- Connection size, connection facility: M8/M10
- Max loading: 2.1 kN
- Material: Stainless steel
- Inlay: Rubber
- Connection facility: Internal thread
- Suitable for aluminium tube: Yes
- Suitable for number of pipes: 1
- Suitable for copper tube: Yes
- Suitable for plastic tube: Yes
- Suitable for stainless steel tube: Yes
- Suitable for steel tube: Yes
- With screw: M8x25
- Medium temperature (continuous): -50-110 °C
- Material dimension: 20x2.5
