Stainless Steel 316L Clip with Connecting Nut 378, Jirva
CLAMP 802 M8/M10 15-19MM SS 316L. JIRVA
Article number:
19033120
to see price and stock

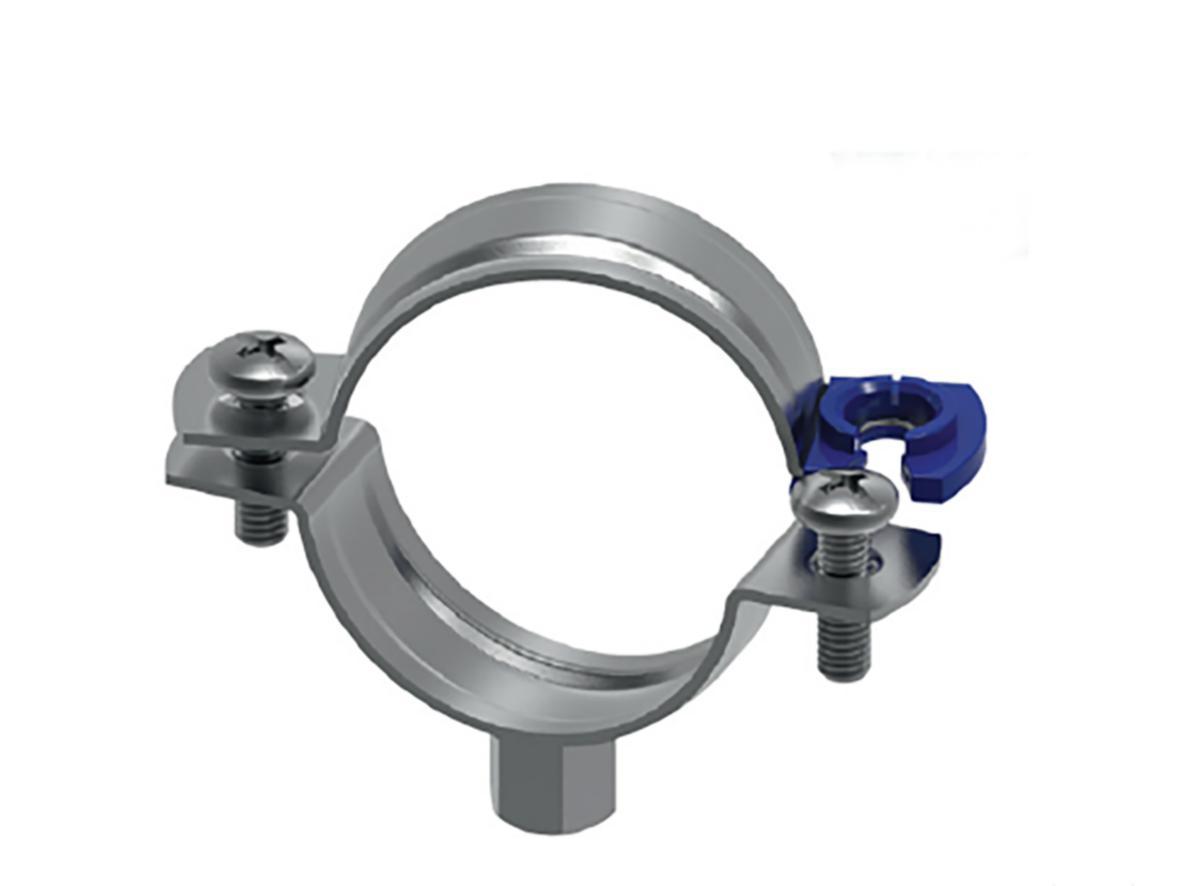

Stainless steel dual clamp with 2 accompanying screws in accordance with 316L. Connection thread, combined M8 or M10–thread.
- Article number: 19033120
- Ean no: 7340080704201
- Material class PLG120
Technical data
- Packagin Size: 1 ST/100 ST
- Outer pipe diameter: 15-19 mm
- Width: 20 mm
- Material thickness: 1.2 mm
- Corrosiveness class: C5-I
- Connection size, connection facility: M8/M10
- Max loading: 1.0 kN
- Material: Stainless steel
- Connection facility: Internal thread
- Suitable for aluminium tube: Yes
- Suitable for number of pipes: 1
- Suitable for cast iron pipe: Yes
- Suitable for plastic tube: Yes
- Suitable for stainless steel tube: Yes
- With screw: M5x16
- Material dimension: 20x1.2
