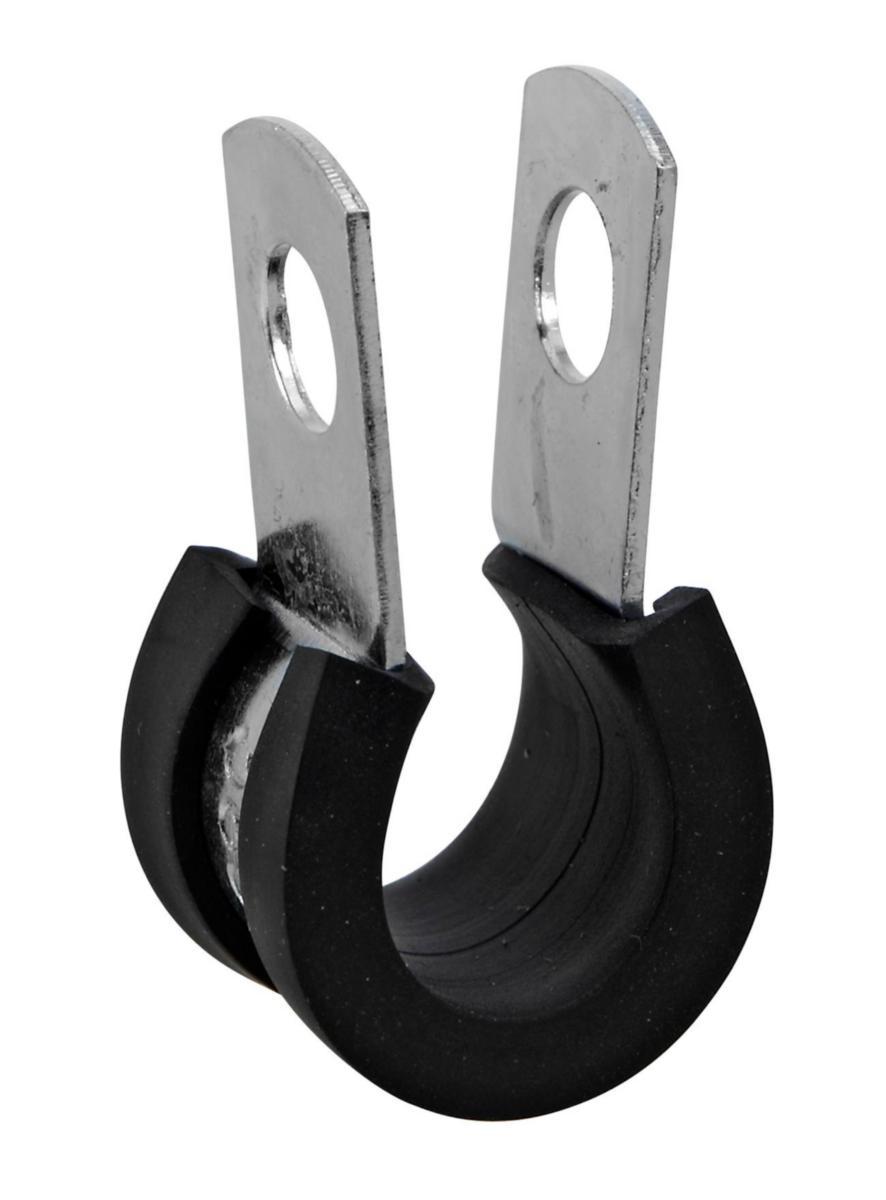

Rubber-lined clamp sleeve, electro-galvanized
RUBBER CLAMP GK-12 EPDM 12MM(1/2")
Article number:
3807879
to see price and stock
Recommended screw M6 x 20. Hole diameter 6.4 mm.
- Article number: 3807879
- Ean no: 7333123071507
- Material class PLF100
Technical data
- Packagin Size: 1 ST/100 ST/200 ST/800 ST
- Outer pipe diameter: 12 mm
- Hole diameter: 6.4 mm
- Bandwidth: 12.7 mm
- Material thickness: 0.8 mm
- Corrosiveness class: C1
- Material: Steel
- Suitable for copper tube: Yes
- Suitable for plastic tube: Yes
- Suitable for stainless steel tube: Yes
- Suitable for thin-walled pipe: Yes
- Surface protection: Galvanic/electrolytic zinc plated
- Connection facility: Hole
- Suitable for aluminium tube: Yes
- Suitable for cast iron pipe: Yes
- Suitable for steel tube: Yes
- Inlay: Rubber
- Max. medium temperature (continuous): 110 °C
- Min. medium temperature (continuous): -45 °C
- Dimension other: 12.7x0.8 mm
