Ahlsell Products Heating and Sanitation Assembly Clamp Piping clamps and clamps, rubber-coated

Rubber-Coated Single-Screw M8 Clips 231, Jirva - CLAMP 231 12-14MM JIRVA RUBBER-COVERED WITH M8- THREAD

https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/35/90/3793590.jpg

https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/90/_a/3793590_a.jpg

a-collection

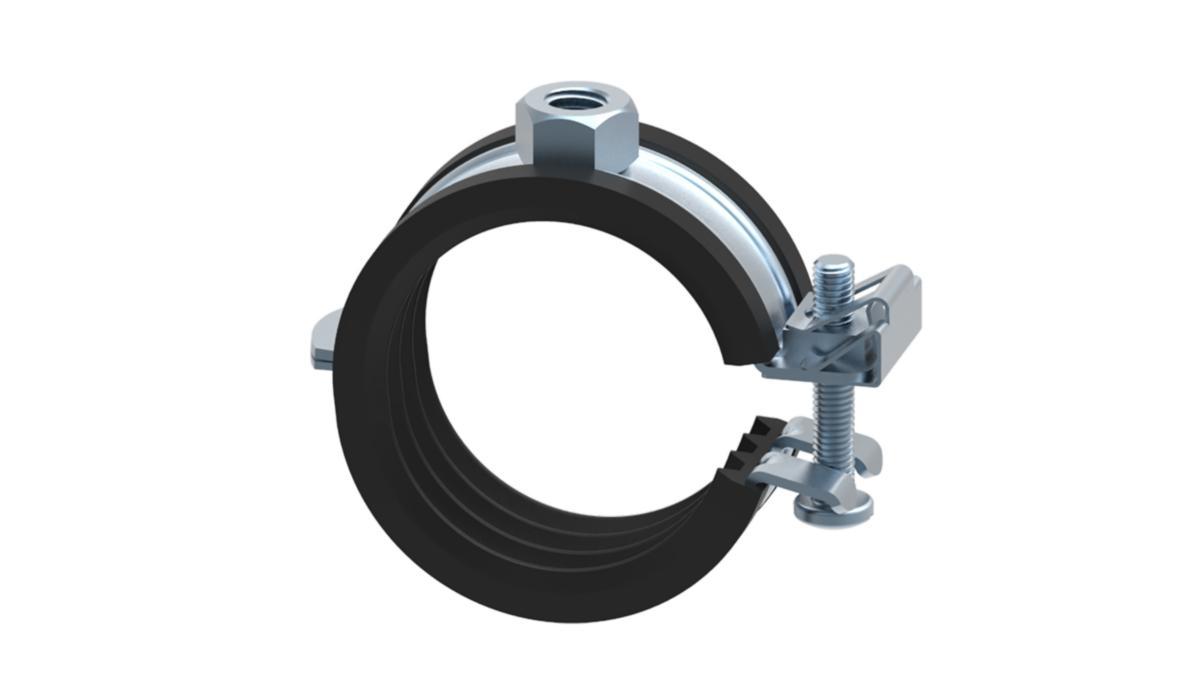

Rubber-Coated Single-Screw M8 Clips 231, Jirva

CLAMP 231 12-14MM JIRVA RUBBER-COVERED WITH M8- THREAD

Article number:

3793590

‌
‌
‌

‌
‌

to see price and stock

Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.

Article number:
3793590
Copy to clipboard
Ean no:
7340080789994
Copy to clipboard
Replaces art.nbr:
3807905 3808012 3808245
Copy to clipboard
Material class
PLF100
Copy to clipboard

Technical data

Packagin Size: 1 ST/100 ST
Outer pipe diameter: 12-14 mm
Width: 20 mm
Material thickness: 1.0 mm
Corrosiveness class: C1
Connection size, connection facility: M8
Material: Steel
Permitted work load: 800 N
Inlay: Rubber
Connection facility: Internal thread
Suitable for aluminium tube: Yes
Suitable for cast iron pipe: Yes
Suitable for plastic tube: Yes
Suitable for stainless steel tube: Yes
Suitable for pipe coil: Yes
Suitable for steel tube: Yes
Height: 35 mm
Key width: 13 mm
