Fixing Clamp EF FGL, MEFA
PIPE CLAMP FGL 20-23 FIXSVEP .MEFA
Article number: Suppl. article no:
4024376
69047
to see price and stock

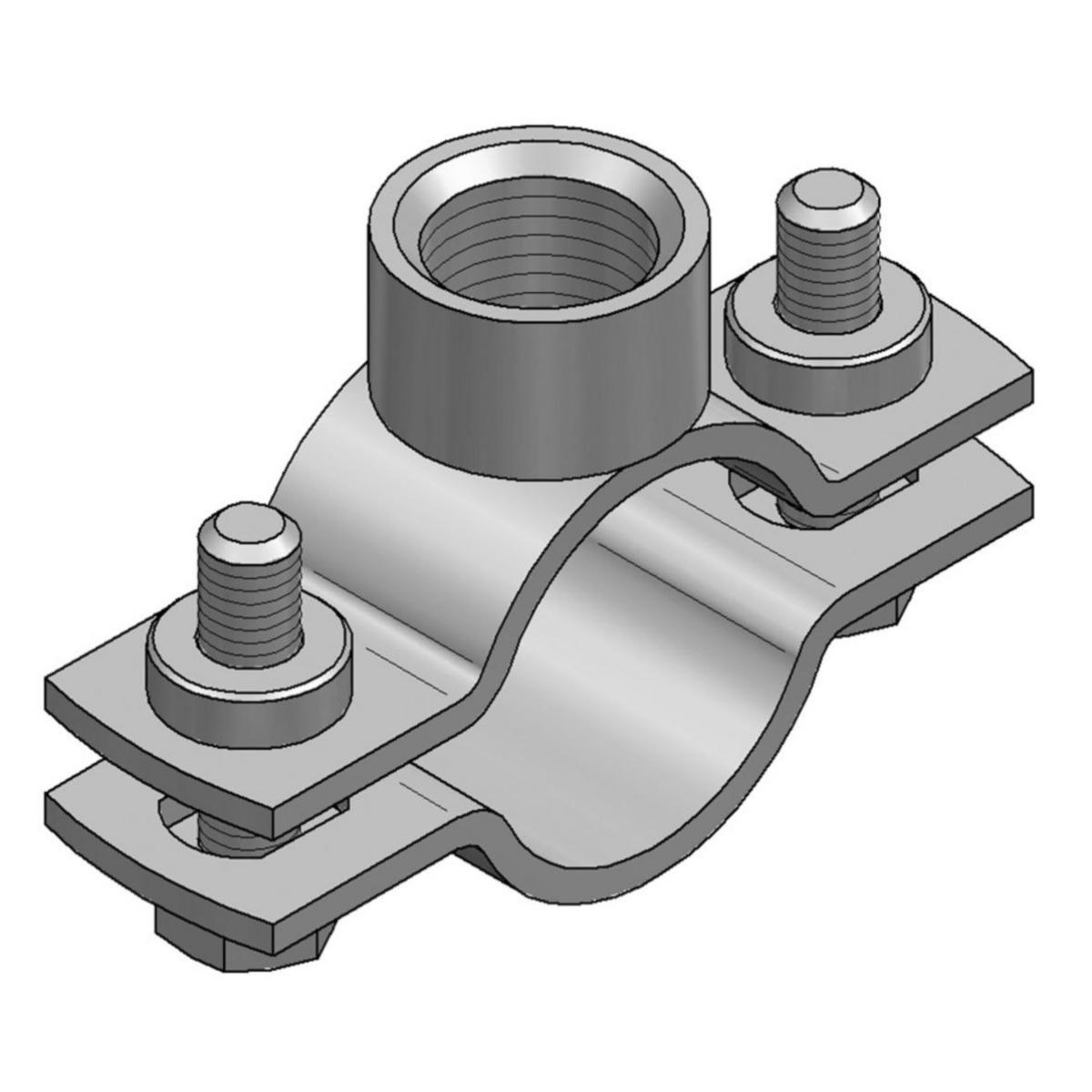

Electro-galvanized Fix Clamp with M8/M10 and 1/2" suspension option. The dimensions of the pipe clamp are 25 x 3.0 mm. Recommended for a maximum axial force of 0.7 kN.
- Article number: 4024376
- Suppl. article no: 69047
- Ean no: 4250928402684
- Material class PLF200
Technical data
- Outer pipe diameter: 20-23 mm
- Width: 25 mm
- Connection size, connection facility: M8/M10
- Material: Steel
- Connection facility: Internal thread
- Suitable for aluminium tube: Yes
- Suitable for number of pipes: 1
- Suitable for cast iron pipe: Yes
- Suitable for copper tube: Yes
- Suitable for plastic tube: Yes
- Suitable for stainless steel tube: Yes
- Suitable for pipe coil: Yes
- Suitable for steel tube: Yes
- Surface protection: Galvanic/electrolytic zinc plated
