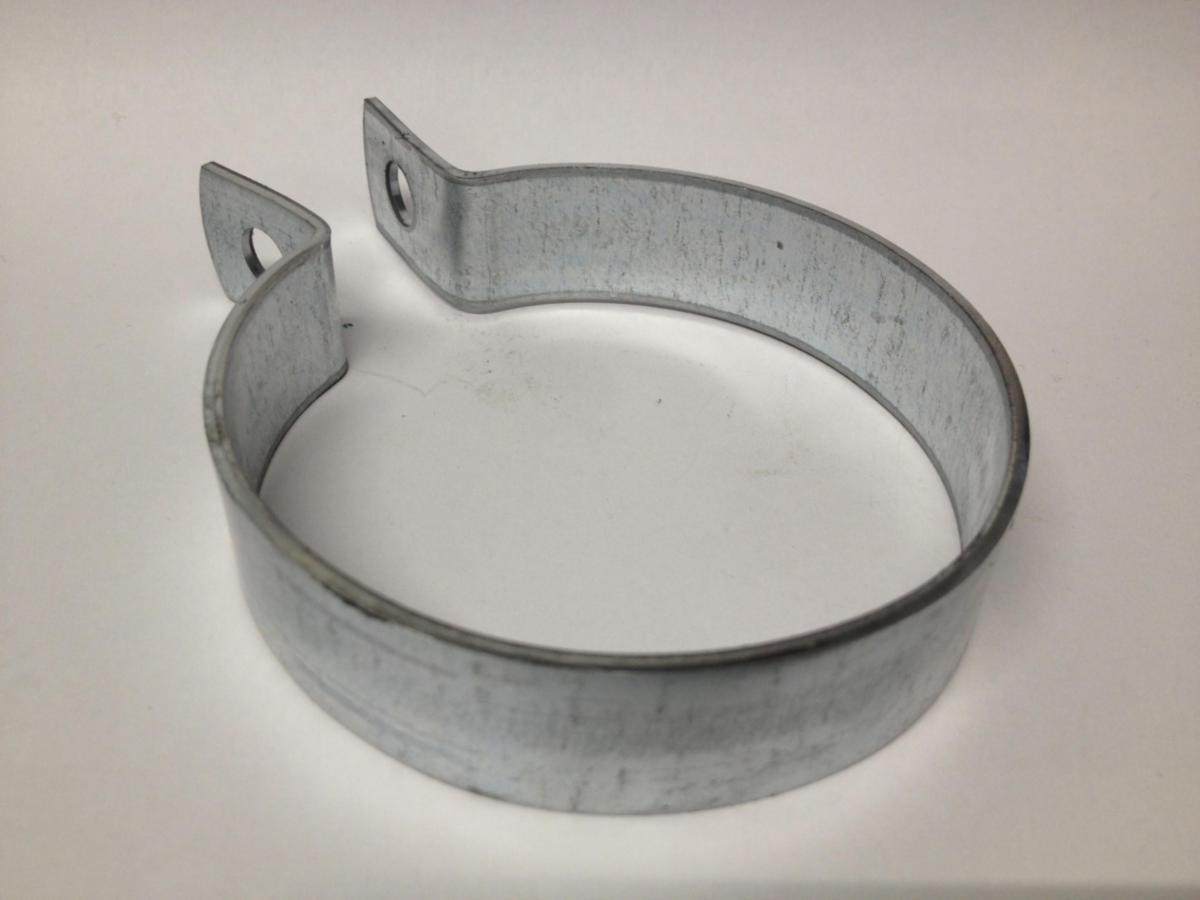

Clamp wrap for thicker steel pipes
CLAMP COARSER 88.9 FFZV 0
Article number:
3804739
to see price and stock
Coarser type. Zinc Plated Galv. Hole diameter 9.0 mm for dimensions up to 139.7 mm, and larger with hole diameter 11 mm.
- Article number: 3804739
- Material class PLG100
Technical data
- Packagin Size: 1 ST/10 ST
- Outer pipe diameter: 88.9 mm
- Hole diameter: 9 mm
- Bandwidth: 20 mm
- Material thickness: 1.5 mm
- Corrosiveness class: C2
- Recommended screw: M 8x25
- Material: Steel
- Suitable for copper tube: Yes
- Suitable for plastic tube: Yes
- Suitable for stainless steel tube: Yes
- Suitable for thin-walled pipe: Yes
- Surface protection: Galvanic/electrolytic zinc plated
- Connection facility: Hole
- Suitable for aluminium tube: Yes
- Suitable for cast iron pipe: Yes
- Suitable for steel tube: Yes
- Max. medium temperature (continuous): 110 °C
- Min. medium temperature (continuous): -45 °C
- Dimension other: 20x1.5 mm
