Schneider Electric

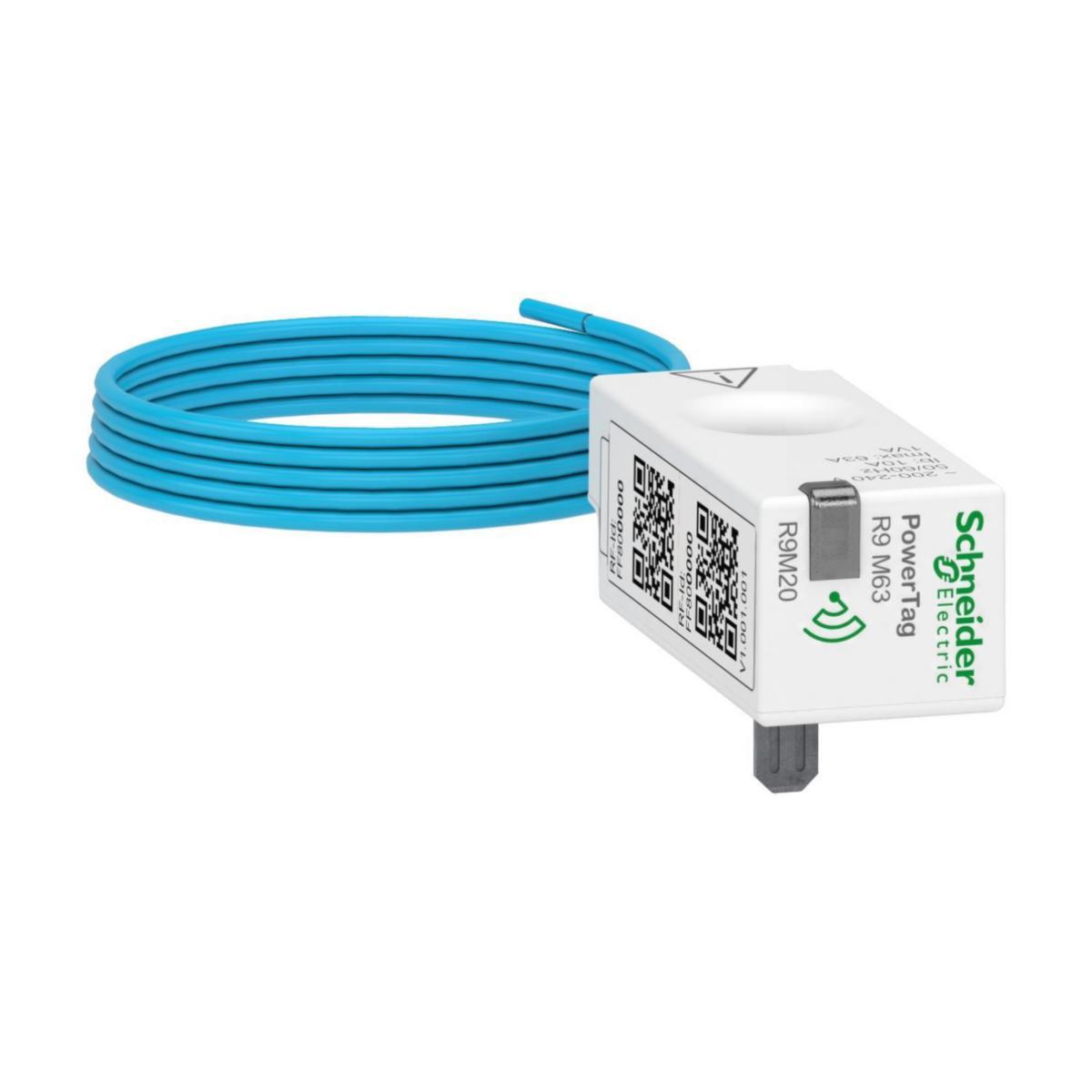

Power sensor PowerTag Resi9
R9 POWERTAG 1P R9M20
Article number: Suppl. article no:
4262838
R9M20
to see price and stock
The energy sensor is mounted on single-connection dwarf switches such as Resi9 and Multi9, but also fits other dwarf switches with similar connections. Together with the Wiser Gateway CCT501901, the communication takes place wirelessly with Zigbee. For measurement in real time, as well as historical data on a daily, weekly, monthly and yearly basis, this is shown in the Wiser by SE app. The user can easily create an automation such as acts as a power monitor, if the total consumption exceeds x kWh and then notify the user via the app.
- Article number: 4262838
- Suppl. article no: R9M20
- Ean no: 3606489524760
- Material class QL5520
Technical data
- Packagin Size: 1 ST/48 ST/48 ST
- Width in number of modular spacings: 1
- Model: Direct measurement
- Nominal voltage (Un) L-L: 220-240 V
- Nominal voltage (Un) N-L: 220-240 V
- Pole type: Single phase
- EEC40 signature: No
- Frequency: 50-60 Hz
- Approval: Domestic
- Energy type: Effective power and reactive power
- Suitable for: Purchase
- With lock code: No
- Mounting method: Plug-in technique
- Accuracy class: B
- Pulse output: None
- Degree of protection (IP): IP20
- Escapement mechanism: No
- Tariff type: One-tariff
- Type of interface: Other
- Type of indication: None
- Type of meter: Electronic
- Degree of protection (NEMA): 1
- Width: 18 mm
- Depth: 43 mm
- Height: 16.5 mm
- Calibrated: Yes
- Max. current (Imax): 63 A
- Nominal current (In): 63 A
- Measurement type load profile: No
- Product series: Resi9, Multi 9
- REACH Date: 2022-07-20
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
