Testboy

Wall socket tester Testavit Schuki 2K with ground fault breaker test and connection cord

SOCKETTES TESTBOY TESTAVIT2K 0
Article number:
4200364
Suppl. article no:
59862





 to see price and stock

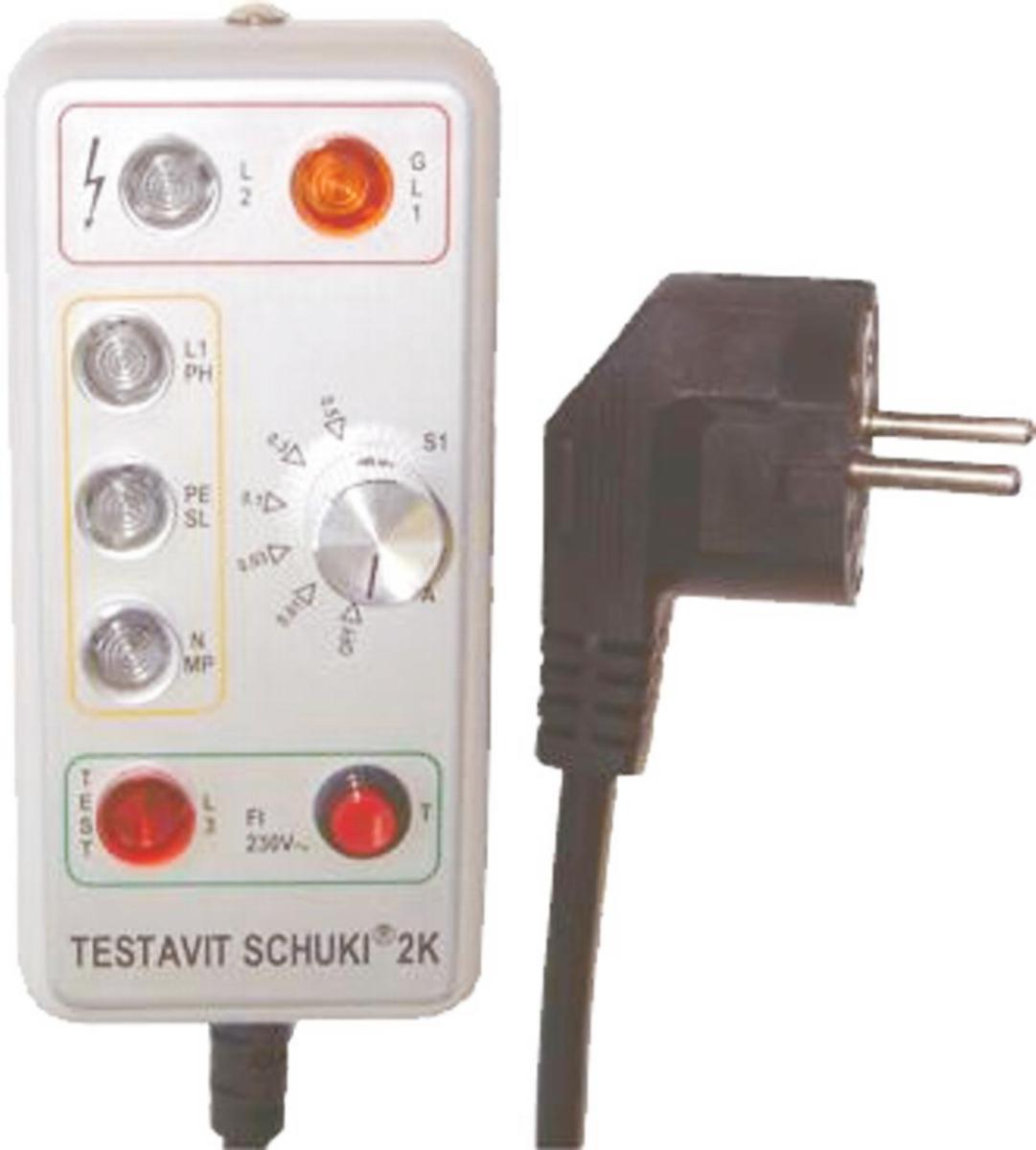

Testboy Testavit Schuki 2K shows the current configuration in the wall socket. The attached cable makes connection to the wall socket easy and comfortable even for inaccessible sockets. Glowlamps indicate the presence of live, neutral and earth as well as any misconnections. With a button, the function on a 10, 30, 100, 300 and 500 mA earth fault breaker can also be tested. In combination with Testboy CEE socket tester, the earth fault breaker for CEE sockets can also be tested. Testboy Testavit Schuki 2K is also equipped with a touch electrode, is powered via the wall socket and is approved in accordance with EN 61010-1, CAT III600V, TÜV/GS. Supplied with a user’s manual and case.
  • Article number:
    4200364
  • Suppl. article no:
    59862
  • Ean no:
    4028532220006
  • Material class
    QF2800
Technical data
  • Type: Testboy Testavit Schuki 2K
  • Operating voltage: 230 V
  • Frequency: 50 Hz
  • Indication: Glowlamps
  • Width: 93 mm
  • Depth: 62 mm
  • Length: 220 mm
  • Protection class: IP20
  • Power supply: From the measurement object
  • Weight: 250 g
  • Over voltage category: CAT III 600V
  • Guarantee: 3 years
