Elma

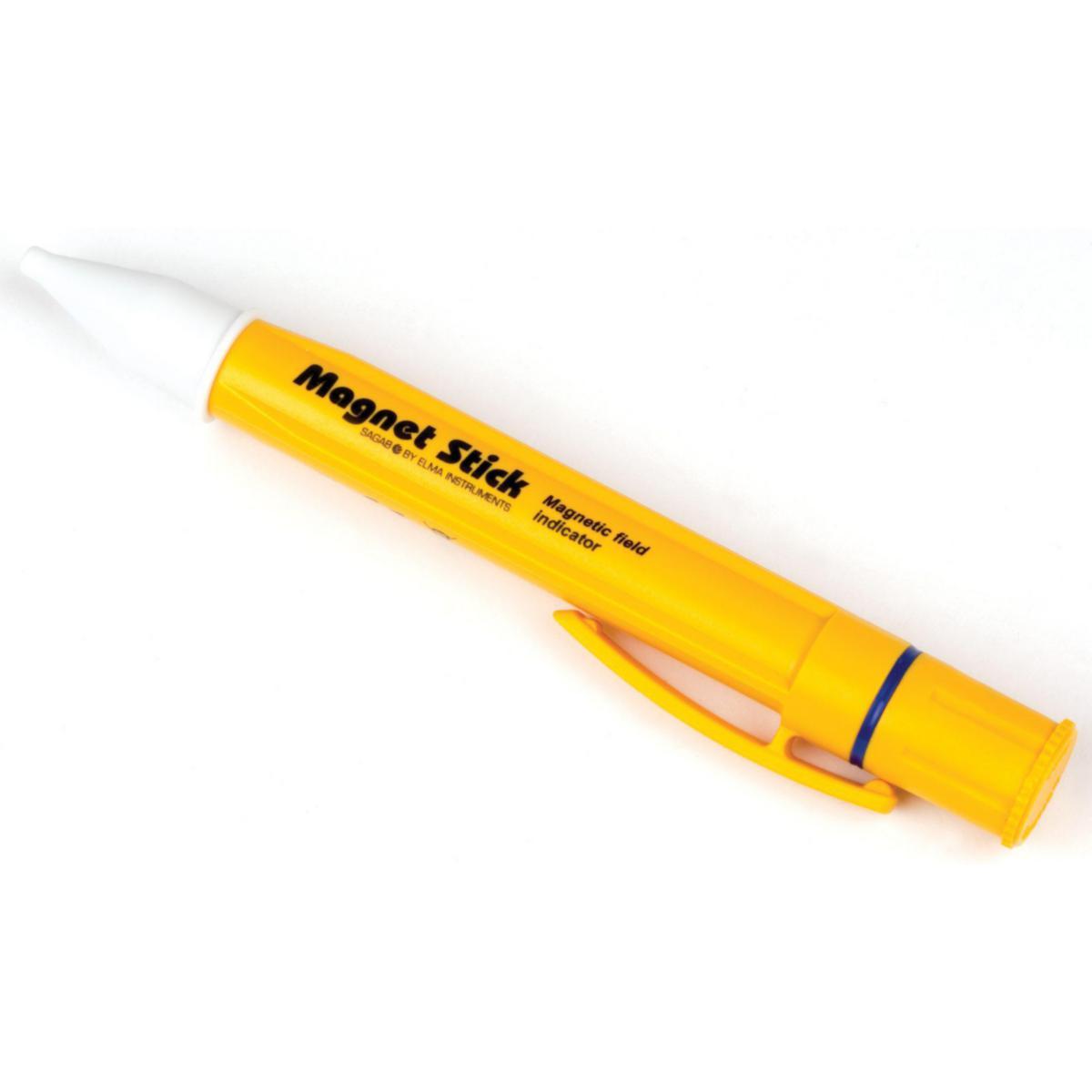

Magnetic field tester Magnet Stick 702-42
MAGNET STICK 0
Article number: Suppl. article no:
4201209
7392016012096
to see price and stock
Testing of solenoid valves in pneumatic and hydraulic control equipment.

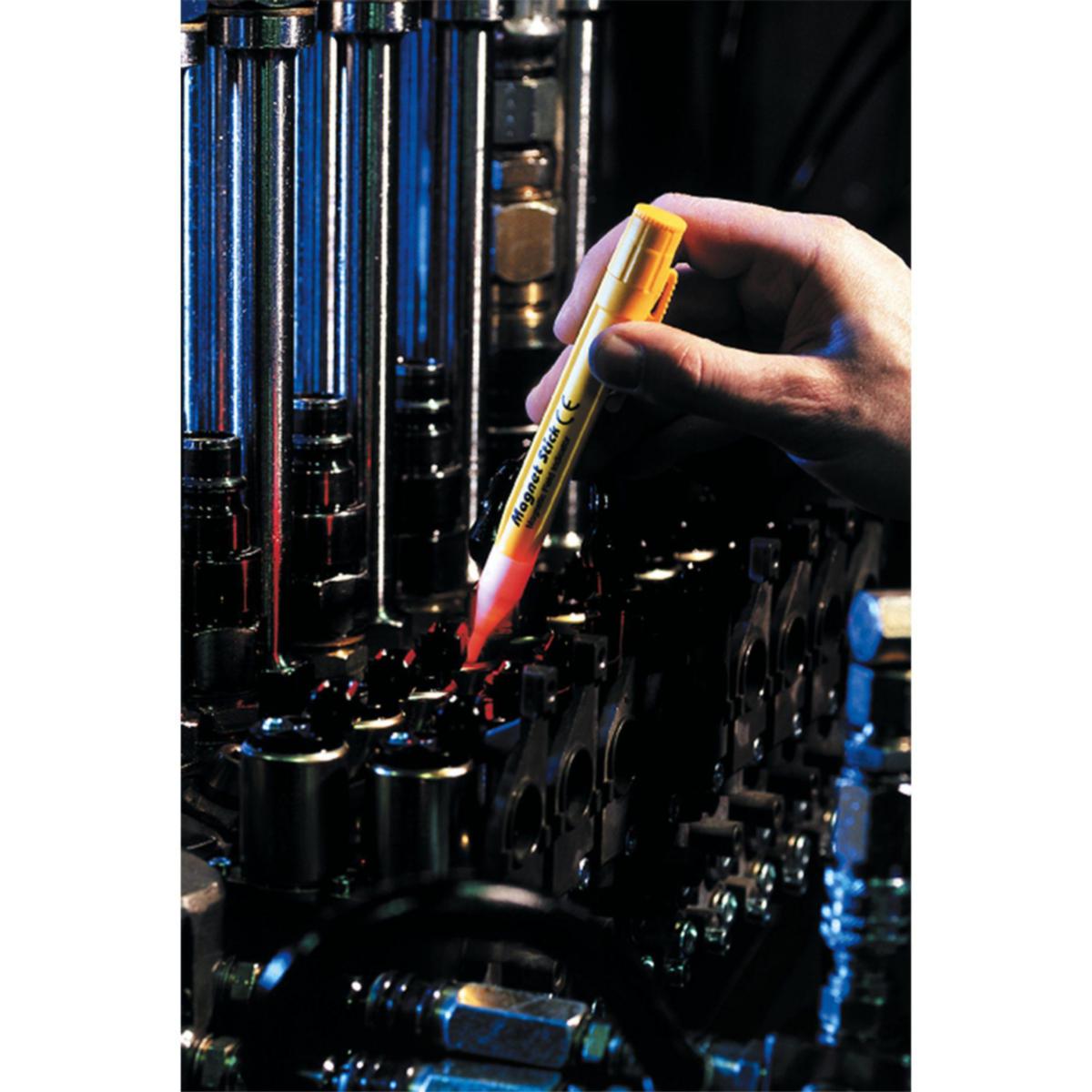

Testing of electrically controlled solenoid valves in most vehicles and machinery.
Testing of solenoid valves for servicing of oil burners.

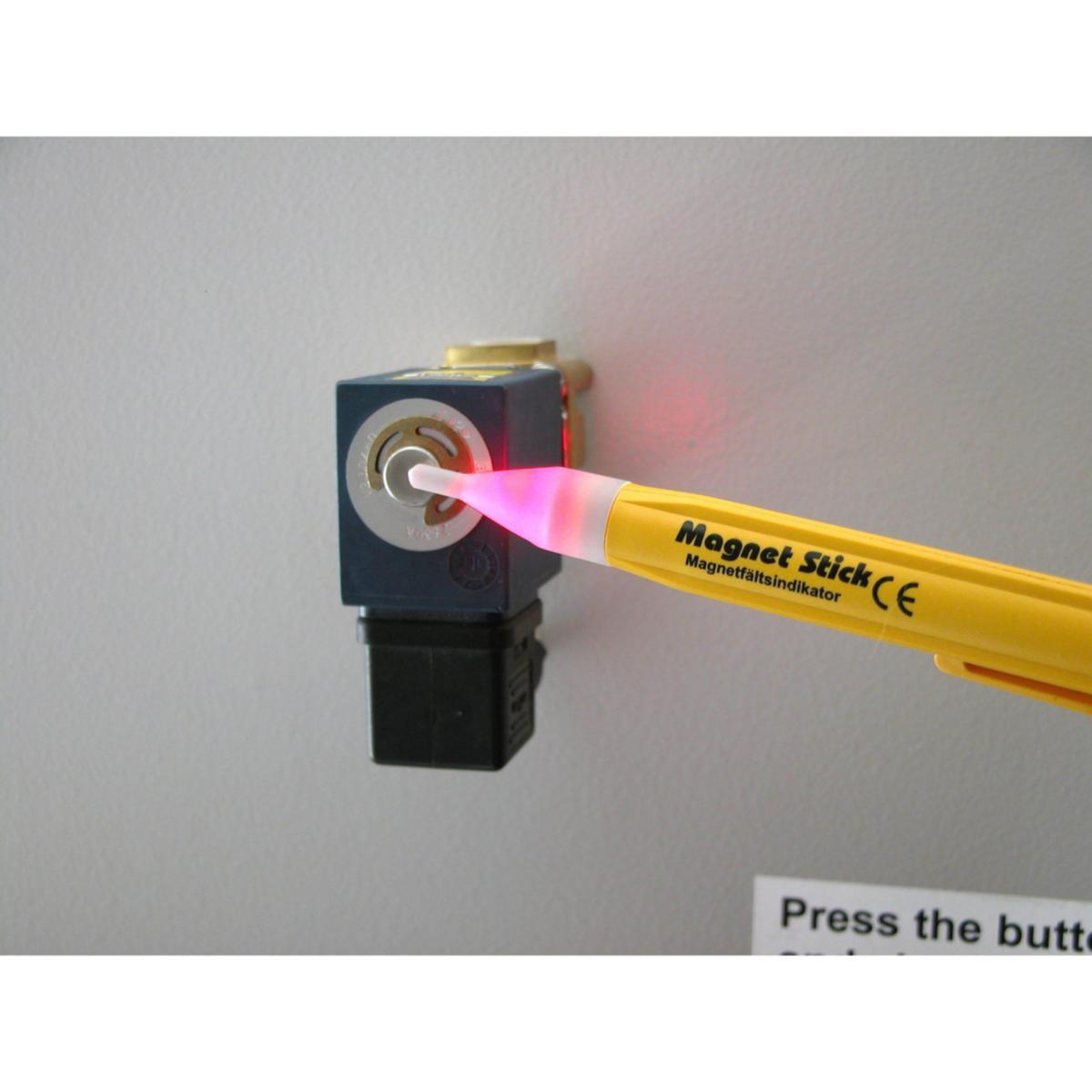

The tip glows red immediately on contact with a magnetic field, e.g. an activated magnetic coil of a solenoid valve.
The tip mars all kinds of magnetic field, alternating current, direct current and permanent magnets.
Testing of electrically controlled solenoid valves in most vehicles and machinery.
Testing of solenoid valves for servicing of oil burners.
The tip glows red immediately on contact with a magnetic field, e.g. an activated magnetic coil of a solenoid valve.
The tip mars all kinds of magnetic field, alternating current, direct current and permanent magnets.
- Article number: 4201209
- Suppl. article no: 7392016012096
- Ean no: 7392016012096
- Material class QF250A
Technical data
- Packagin Size: 1 ST/20 ST/200 ST
- Type: Magnetic field tester Magnet Stick 702-42
- Sensitivity: 300 Gauss (0.3 mT)
- Altitude: < 2000 m
- Work temperature: -10-50 °C
- Material: Pa6, PP COP
- RH: 80% @ 30ºC, 50% @ 40ºC
- Size other: Length 152 mm, Ø max 17 mm
- Weight: 40 g
- Information: Ex-class: EEx ib IIC T4
Supply voltage: 2 AAA (LR03) batteries are included - REACH Date: 2021-12-06
- REACH Information obligation: No
