RCO

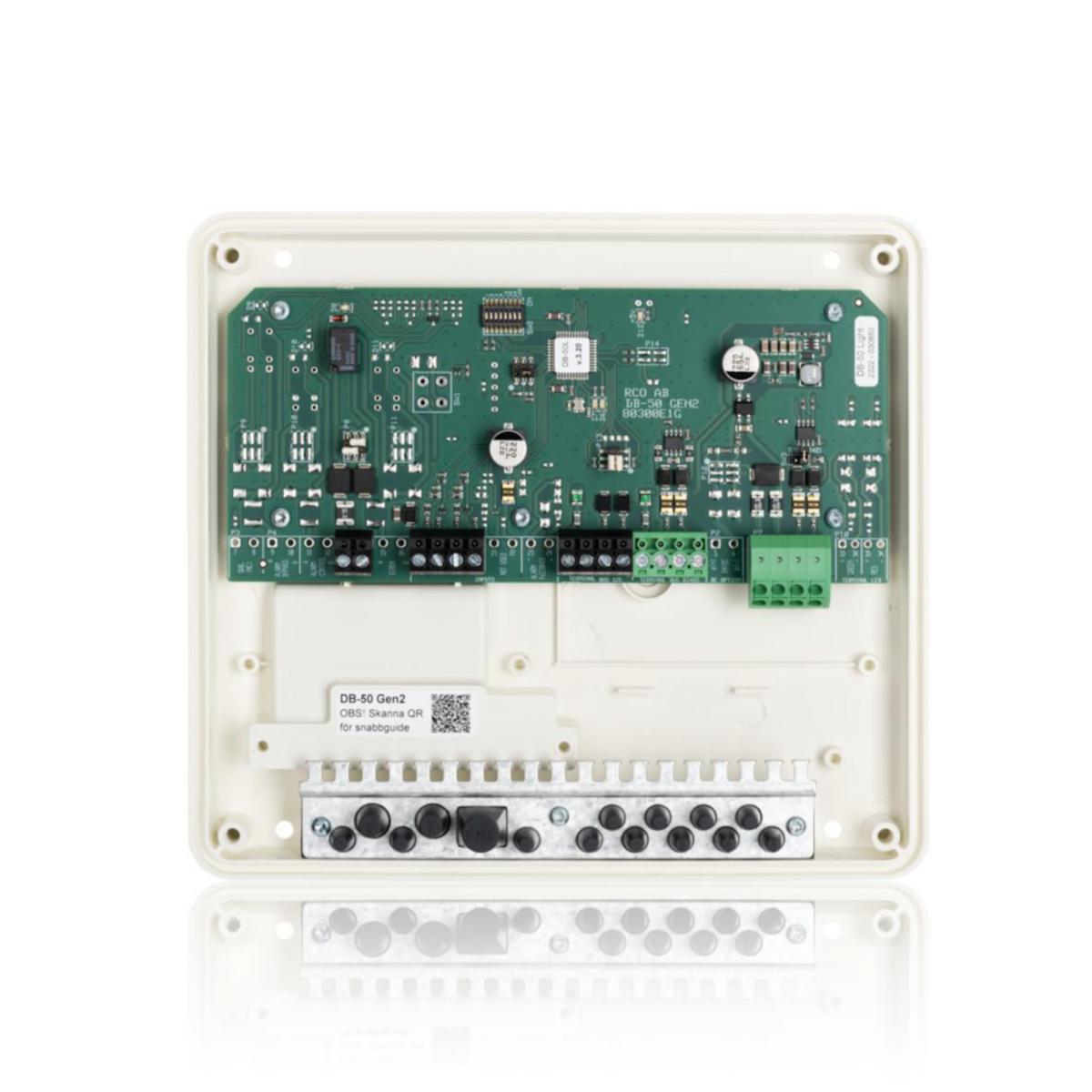

Distribution box DB-50 Light Gen2

Door control unit 2 in / 1 out
Artikelnummer:
5872019
Lev. artikelnr:
20080312
‌
‌
‌
‌
‌
 för att se saldo och pris
Door central for up to two card readers that can be connected on the I2C or TB-485 bus. DB-50 Light Gen2 has 2 inputs and 1 output. Used to connect card readers, electric locks, open button, door detection and other possible accessories. Connects to UC -50 via local bus RS-485 Supply voltage: 10-27.3VDC Current consumption: Max 47mA @24VDC.

IMPORTANT! R-CARD M5 needs to have the following software version or later for DB-50 Light Gen2 to be used: M5 Version 5.49.4.
  • Article number:
    5872019
  • Suppl. article no:
    20080312
  • Ean no:
    7340029312184
  • Material class
    QS2400
Teknisk data
  • Type: DB-50 LIGHT GEN2
  • Model: Controller unit
  • Standalone: No
  • Networkable: No
  • PC-binding: No
  • Type of interface: Bus system
  • Operating temperature: 5-60 °C
  • Colour: White
  • VdS class: None
  • Mounting method: Surface mounted
  • Operating voltage DC: 10-27.3 V
  • Width: 200 mm
  • Height: 180 mm
  • Depth: 50 mm
  • Degree of protection (IP): IP20
  • Material: Plastic
  • Power over Ethernet (PoE): None
  • Compatible with Amazon Alexa: No
  • Compatible with Apple HomeKit: No
  • Compatible with Google Assistant: No
  • IFTTT support available: No
  • REACH Date: 2023-04-04
  • REACH Information obligation: No
