Schneider Electric

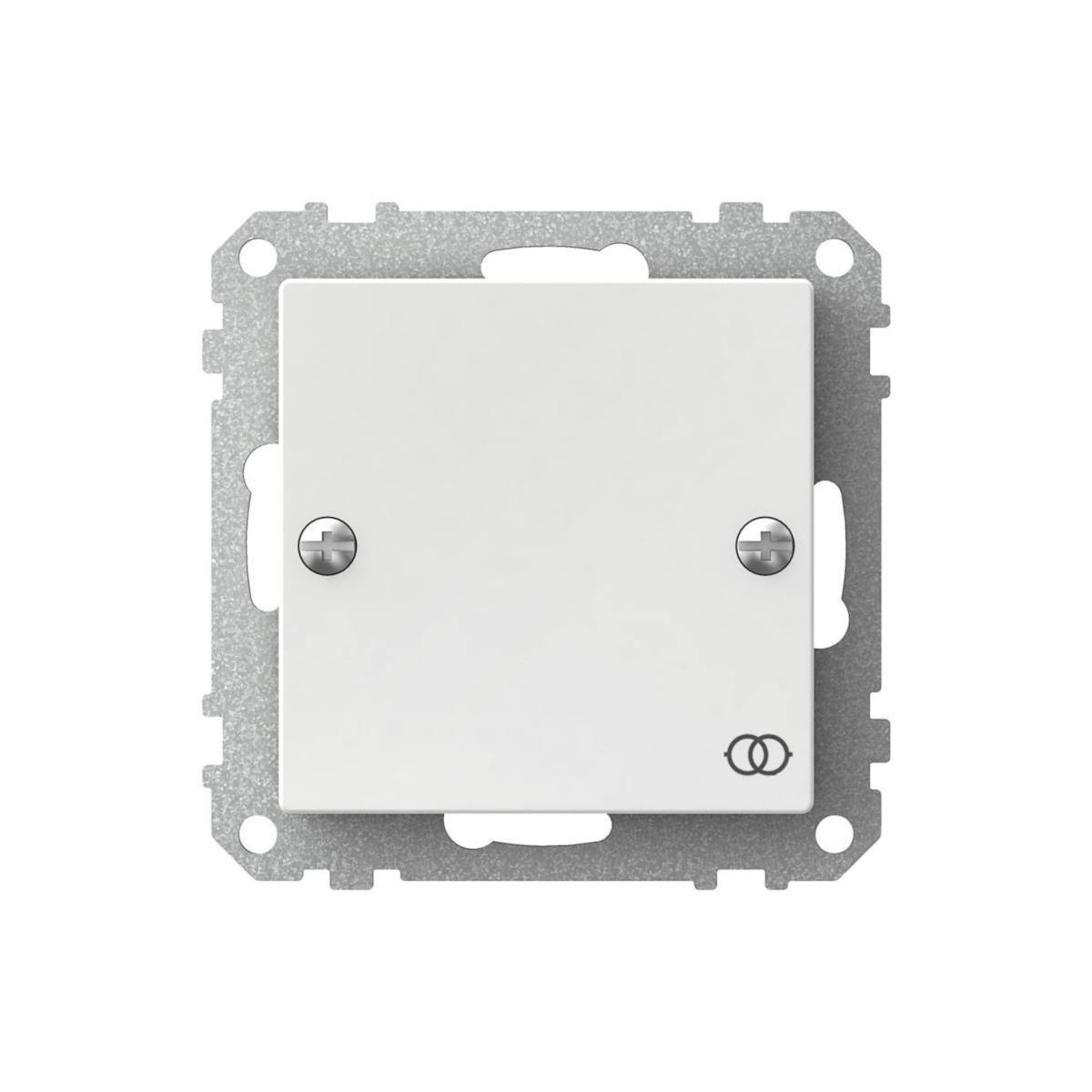

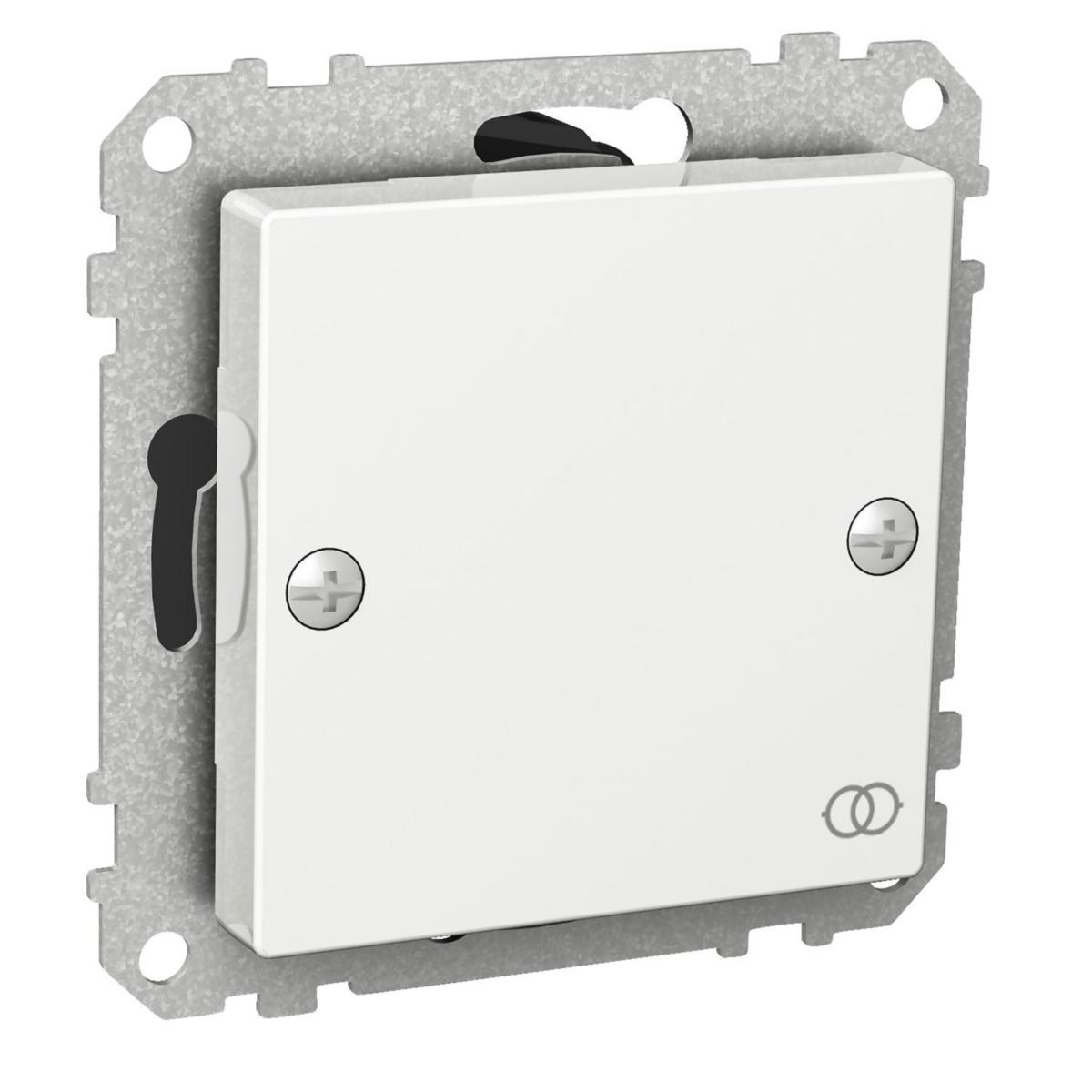

RWC transformer
RWC TRANSFORMATOR 12 WH EXXACT
Article number: Suppl. article no:
5506356
WDE002255
to see price and stock
Transformer 230/12V AC for powering Exxact RWC devices; powers max. one RWC package. For mounting in apparatus box c/c 60 mm or surface mounting in box 35 mm. Supplemented by optional Exxact frame.
- Article number: 5506356
- Suppl. article no: WDE002255
- Ean no: 3606480207266
- Material class QS1000
Technical data
- Packagin Size: 1 ST/10 ST/10 ST
- Product series: Exxact
- Secondary voltage 1: 12 V
- Secondary amperage 1: 0.5 A
- Max. output power: 6 W
- Max. output current: 0.5 mA
- Type of transformer: Standard bell ringing transformer
- Width in number of modular spacings: 0
- With on/off switch: No
- Width: 71 mm
- Height: 12 mm
- Length: 71
- Primary voltage: 230 V
- Suitable for distribution board: No
- Short-circuit protected: Yes
- Flush-mounted installation: Yes
- Surface mounting: No
- Max. power loss: 6 W
- Secondary voltage 2: 0 V
- Secondary voltage 3: 0 V
- Secondary amperage 2: 0 A
- Secondary amperage 3: 0 A
- Temperature protection: Yes
- RAL-number (similar): 9003
- Nominal voltage AC: 230 V
- REACH Date: 2022-07-20
- Device depth: 20 mm
- Device height: 71 mm
- Device width: 71 mm
- Degree of protection (IP): IP20
- Colour: White
- REACH Information obligation: No
- Voltage type: AC
- Model: Power supply unit
