Indication Kombi red Lens CLICK

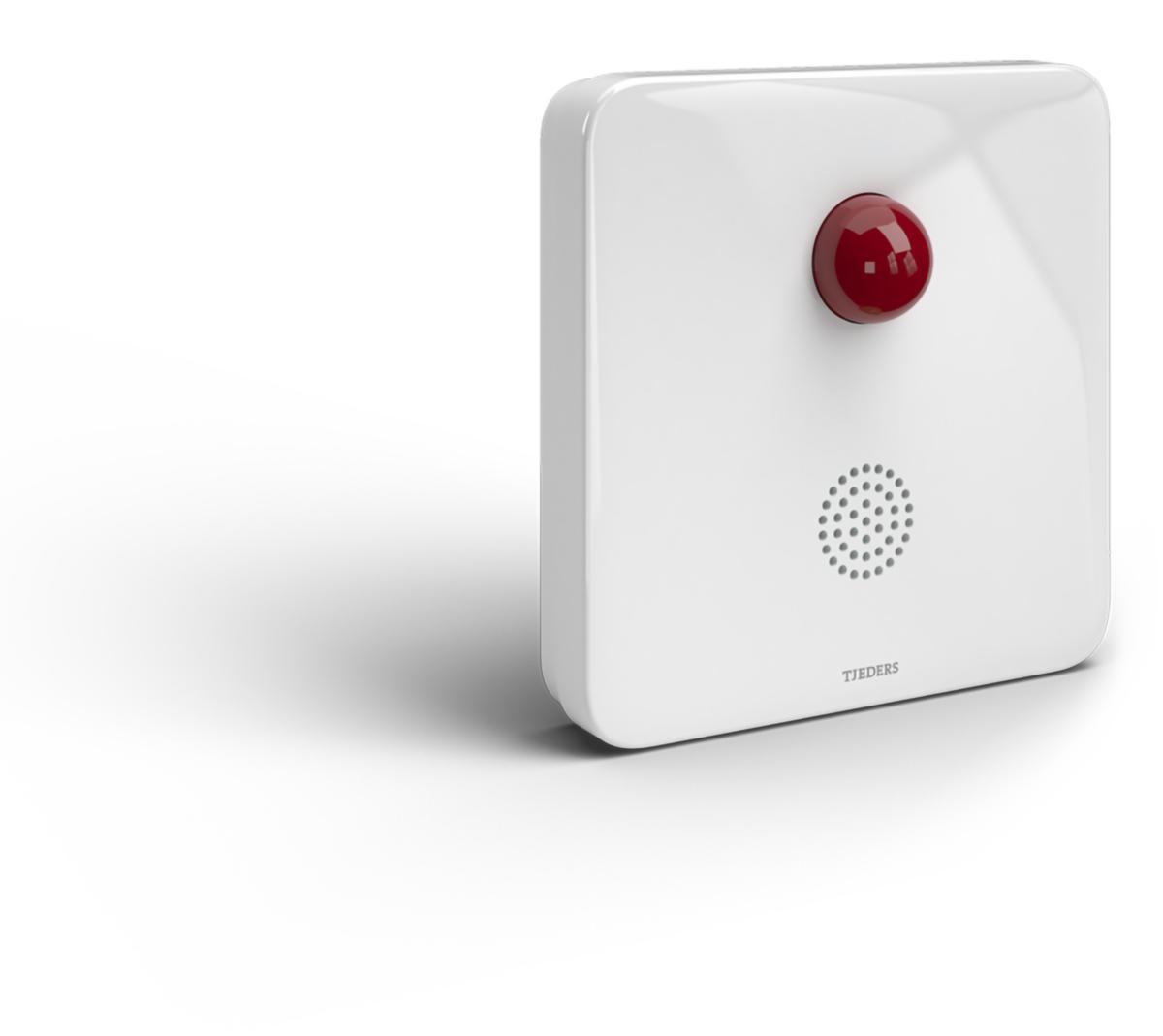

INDICATOR COMBINED RED LAMP H12 230V VS
Article number:
5371977
Suppl. article no:
5371977





 to see price and stock
Produkten är miljöbedömd av SundaHus
The device contains acoustic indication, piezo buzzer with adjustable volume and red optical indication, colored LEDs under colored lens. Fixed or intermittent indication for buzzer or optical indication optionally via jumper. Additional output that follows the optical indication. Connection takes place on a screw terminal with wire protection. For recessed mounting in a round appliance box c/c 60mm or surface mounted in a CLICK wall frame (height 16mm). Cover cap for screw fastening made of white thermoplastic
  • Article number:
    5371977
  • Suppl. article no:
    5371977
  • Ean no:
    7350037682520
  • Material class
    QS034B
Technical data
  • Electricity consumption: 0.1 A
  • Colour of lamp hood: Red
  • Housing colour: White
  • Loudness: 67 dB
  • Lamp type: LED
  • Mounting method: Flush-mounted
  • Nominal voltage: 12-24 V
  • Type of current: AC/DC
  • Type of optical signal: Continuous light
  • Type of acoustic signal device: Buzzer
  • REACH Date: 2021-06-23
  • Product series: Click
  • REACH Information obligation: No
