Schneider Electric
Office signal, Exxact
SW UPPTAGET LED 230 WH EXXACT
Article number: Suppl. article no:
5348027
WDE002312
to see price and stock

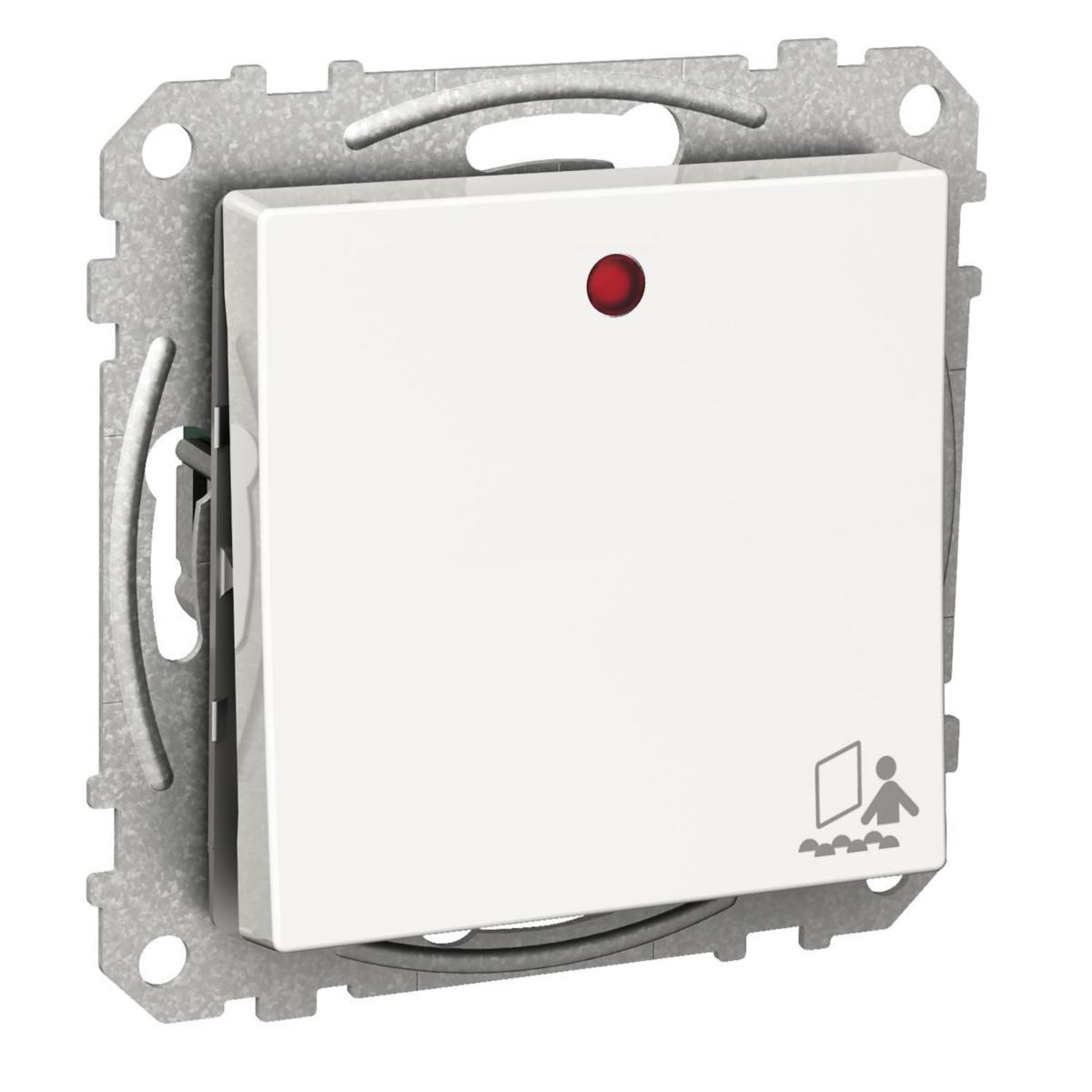

Switch 1-pole with square flip-flop, red LED 24V or 230V, busy symbol. Used together with a light signal with text Busy. For flush mounting in device box c / c 60 mm or external mounting in low box 21 mm. Supplemented with any Exxact frame.
- Article number: 5348027
- Suppl. article no: WDE002312
- Ean no: 3606480207396
- Material class QS032B
Technical data
- Packagin Size: 1 ST/5 ST
- Type: BUSY SIGNAL LED 230 V
- Product series: Exxact
- Wiring system: Off switch 1-pole
- Method of operation: Rocker/button
- Number of rockers: 1
- Colour: White
- RAL-number (similar): 9003
- Lighting: Yes
- Connection type: Push-in clamp
- Rated current: 16 A
- Suitable for degree of protection (IP): IP21
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Flush-mounted
- Device width: 71 mm
- Device height: 71 mm
- Device depth: 16 mm
- Built-in depth: 15 mm
- Switching current for fluorescent lamps: 16 AX
- Assembly arrangement: Basic element with central cover plate
- Nominal voltage: 250 V
- Washing machine switch: No
- Push button switch: No
- Type of fastening: Screw mounting
- Surface finishing: Glossy
- Surface protection: Untreated
- Feedback-signal contact: No
- Number of modules (module system): 0
- With mounting plate: No
- REACH Date: 2022-07-20
- REACH Information obligation: No
