Omron

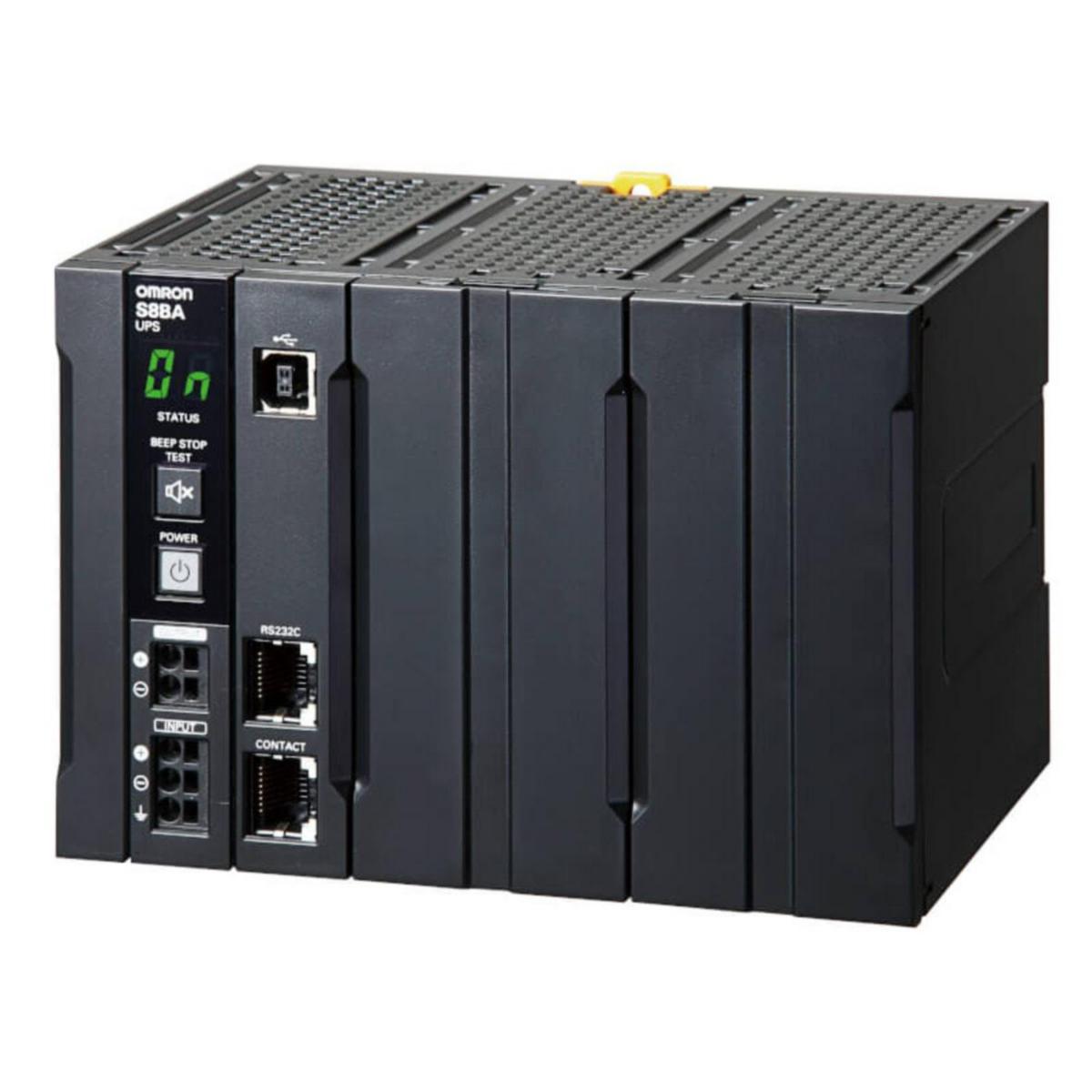

UPS DC-DC-Din S8BA
24VDC Li-ion UPS, 6min@10A
Article number: Suppl. article no:
5257428
S8BA-24D24D240LF
to see price and stock
S8BA protects your IPCs and control systems. Mounted on DIN rail to protect industrial computers (IPCs) and control systems etc. from momentary voltage drops and power outages. S8BA is compact, has low weight and long battery life and saves space in the installation. Easy mounting on DIN rail. Li-Ion batteries provide more than twice the expected life (up to 10 years) compared to lead-acid batteries. I / O connections as well as USB and RS-232C via two different RJ45 ports.
- Article number: 5257428
- Suppl. article no: S8BA-24D24D240LF
- Ean no: 4547648846615
- Material class QQ2220
Technical data
- Type: S8BA-24D24D240LF
- Input voltage: 21.6-26.4 V
- Output voltage: 22.8-25.2 V
- Output effective power: 240 W
- Voltage type: DC
- Bridging time full load: 6 min
- Weight: 1.3 kg
- Width: 148 mm
- Depth: 100 mm
- Height: 100 mm
- Suitable for network-management: No
- USV- technology: Offline
- Number of phases primary: 0
- Number of phases secondary: 0
- Number of output connections C13: 0
- Number of output connections C19: 0
- Number of output connections fixed connection: 1
- Input connection: Other
- Auto shut down function: Yes
- Efficiency in eco-mode: 95 %
- Max. voltage distortion output (linear load): 10 %
- Potential free switch contact: No
- SNMP: No
- Overall efficiency: 95 %
- Modular: No
- With communication interface RS-232: No
- USB interface: Yes
- Number of socket outlets with protective contact CEE 7/5 (type E): 0
- REACH Date: 2023-01-01
- REACH Information obligation: No
