Elrond

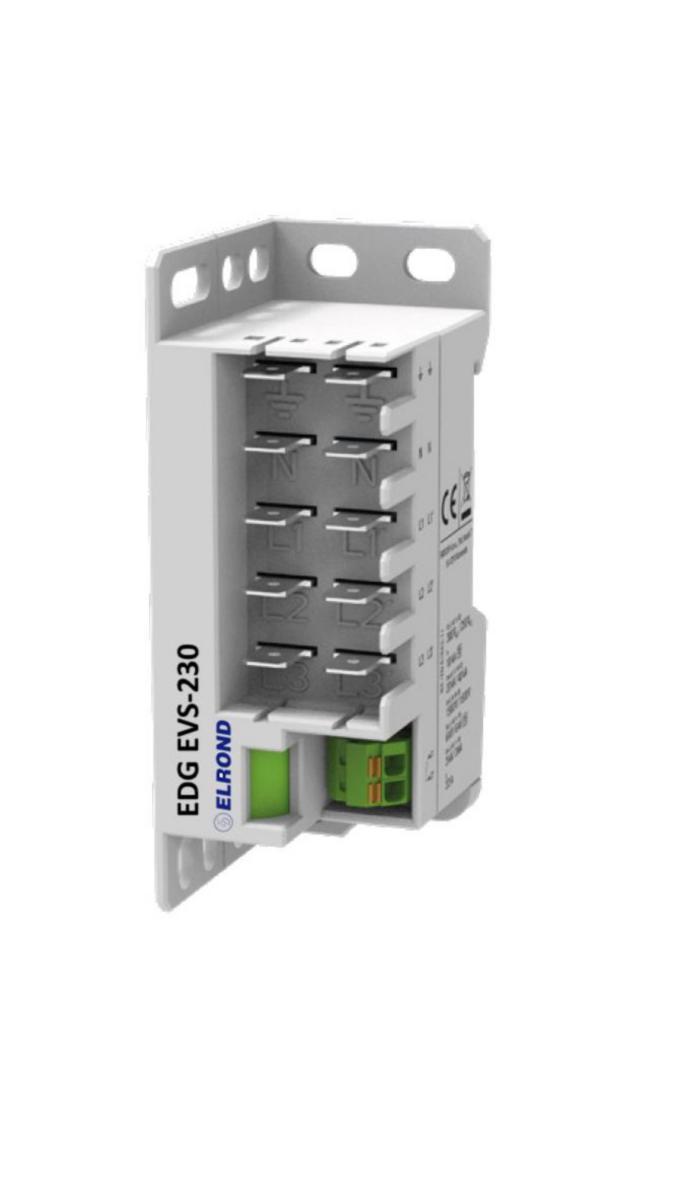

Surge protection EV
Surge prot device 3-phase
Article number: Suppl. article no:
5271911
EDG EVS-230
to see price and stock
Surge protection/Intermediate protection for charging stations, 4-pole including alarm.
- Article number: 5271911
- Suppl. article no: EDG EVS-230
- Material class QQ7600
Technical data
- Type: EDG EVS-230
- With remote signalling contact: Yes
- Number of poles: 4
- Category type 3: Yes
- Mounting method: DIN rail (top hat rail) 35 mm
- Nominal voltage AC: 230 V
- Max. continuous voltage AC: 255 V
- Nominal load current: 32 A
- Total discharge current (8/20) (L+N-PE): 40 kA
- Nominal discharge surge current (8/20) (L-N): 10 kA
- Voltage protection level: 1.5 kV
- Voltage protection level L-N: 1.5 kV
- Voltage protection level L-PE/N-PE: 1.5 kV
- With interference suppressor filter: No
- Signalling at the device: Optical
- Degree of protection (IP): IP20
- Total discharge current (8/20) (L1+L2+L3+N-PE): 40 kA
- EMC-version: No
- REACH Date: 2024-04-08
- REACH Information obligation: No
