Dehn
Overvoltage protection data 500MHz
Combined arrester to 10 Gbit
Artikelnummer: Lev. artikelnr:
5279085
929161
för att se saldo och pris

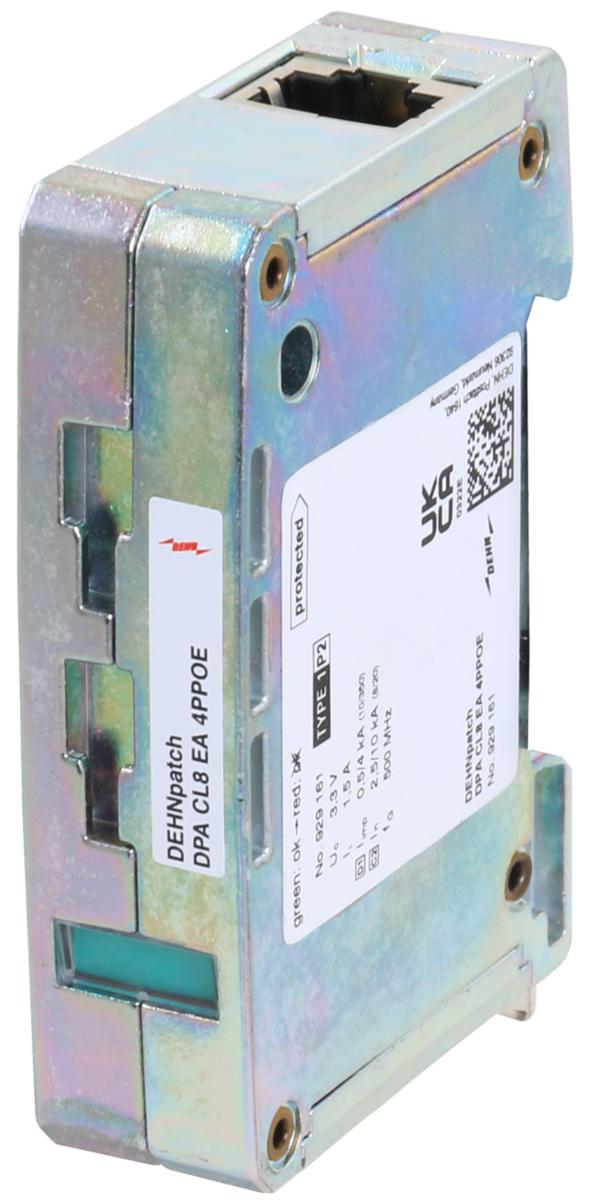

DEHNpatch CL8 EA 4PPOE is a network protection with RJ45 connection and a width of 19mm. With clear optical indication with green/red indicator flag. As with the accessories DPA MOD IRCM E 5279088 and DRC IRCM E 5279090, it is possible to connect a total alarm for several DEHN patches. 10Gbit (Class EA/500 MHz) PoE 4PPoE.
- Article number: 5279085
- Suppl. article no: 929161
- Ean no: 4013364472921
- Material class QQ8080
Teknisk data
- Packagin Size: 1 PCS/1 PCS
- Connection 1: Terminal/RJ45
- Limiting frequency: 500 MHz
- Max. continuous voltage DC: 58 V
- Mounting method: DIN rail (top hat rail) 35 mm
- Nominal load current: 1.5 A
- Nominal discharge surge current (8/20): 10 kA
- Signalling at the device: Optical
- Voltage protection level core/earth: 600 V
- Voltage protection level core/core: 100 V
- Voltage protection level core/signal ground: 600 V
- Voltage protection level signal ground/protective ground: 600 V
- Lightning impulse current (10/350 µs): 0.5 kA
- Number of conductors (without earthing): 8
- Earthing via: DIN rail (top hat rail)
- Degree of protection (IP): IP20
- Assembly width: 19 mm
- REACH contains candidate substances: Bly
- REACH Date: 2023-01-17
- REACH Information obligation: Yes
