Elrond

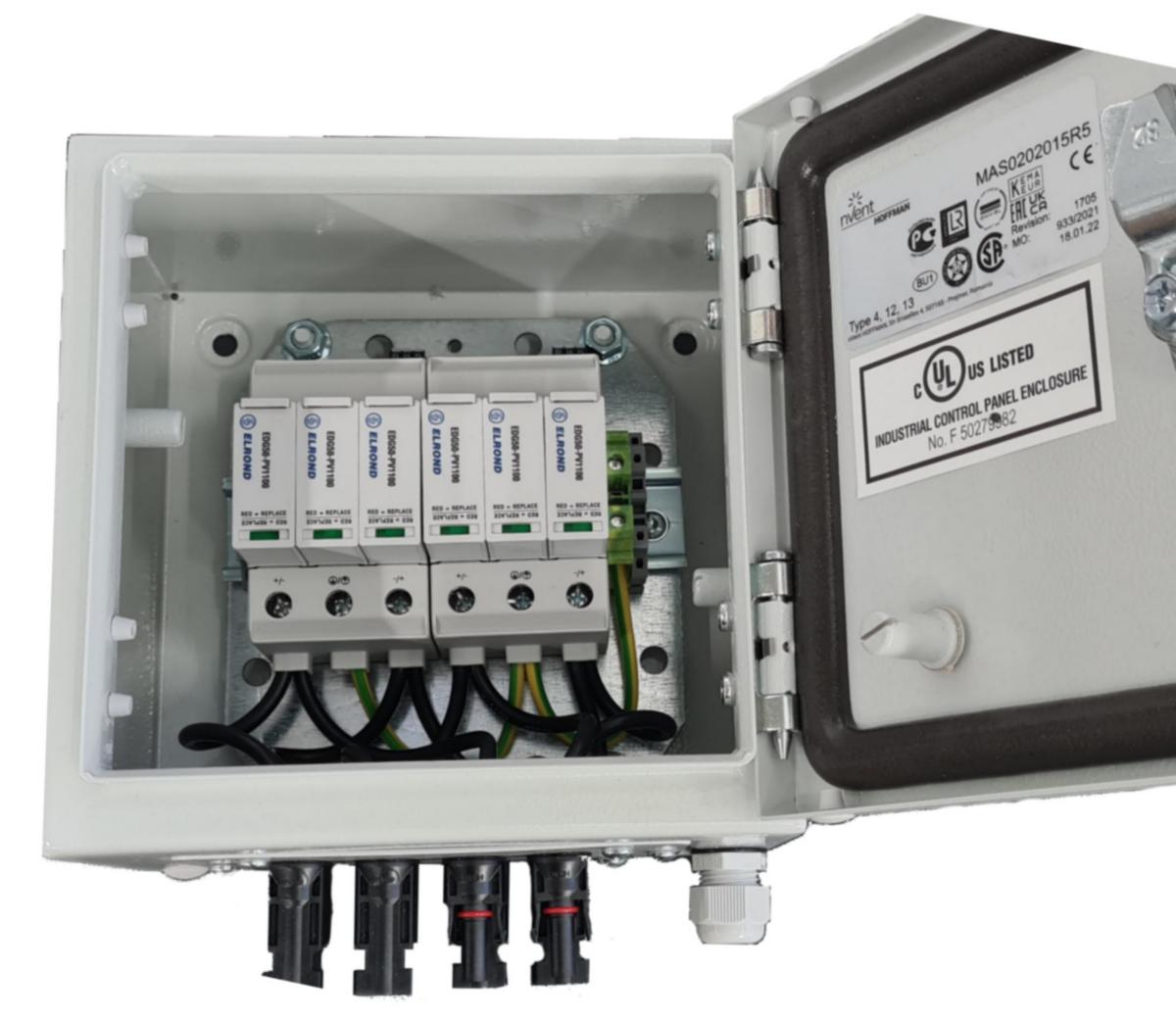

Solar cell protection DC sheet metal, 2 string
Surge Prot Box for PV
Artikelnummer: Lev. artikelnr:
5271662
Åskpaket sol6
för att se saldo och pris
Solar cell protection, sheet metal enclosure incl. Surge protection for max 1100VDC with MC4 connections, for 2 strings.
Dimensions: 200x240x160 including connectors.
Dimensions: 200x240x160 including connectors.
- Article number: 5271662
- Suppl. article no: Åskpaket sol6
- Material class QQ760B
Teknisk data
- Number of conductors (without earthing): 4
- With remote signalling contact: Yes
- Degree of protection (IP): IP67
- Nominal discharge surge current (8/20): 20 kA
- Max. discharge surge current (8/20): 40 kA
- Nominal voltage DC: 1100 V
- Max. continuous voltage DC: 1100 V
- Max. conductor cross section solid (solid, stranded): 35 mm²
- Max. conductor cross section flexible (fine-strand): 35 mm²
- Max. PV-voltage: 1100 V
- Mounting method: Other
- Signalling at the device: Optical
- Category type 2: Yes
- Short-circuit breaking capacity (Isccr): 11 kA
- System configuration DC: Yes
- System configuration other: Yes
- Integrated backup fuse: No
- REACH Date: 2022-03-08
- REACH Information obligation: No
