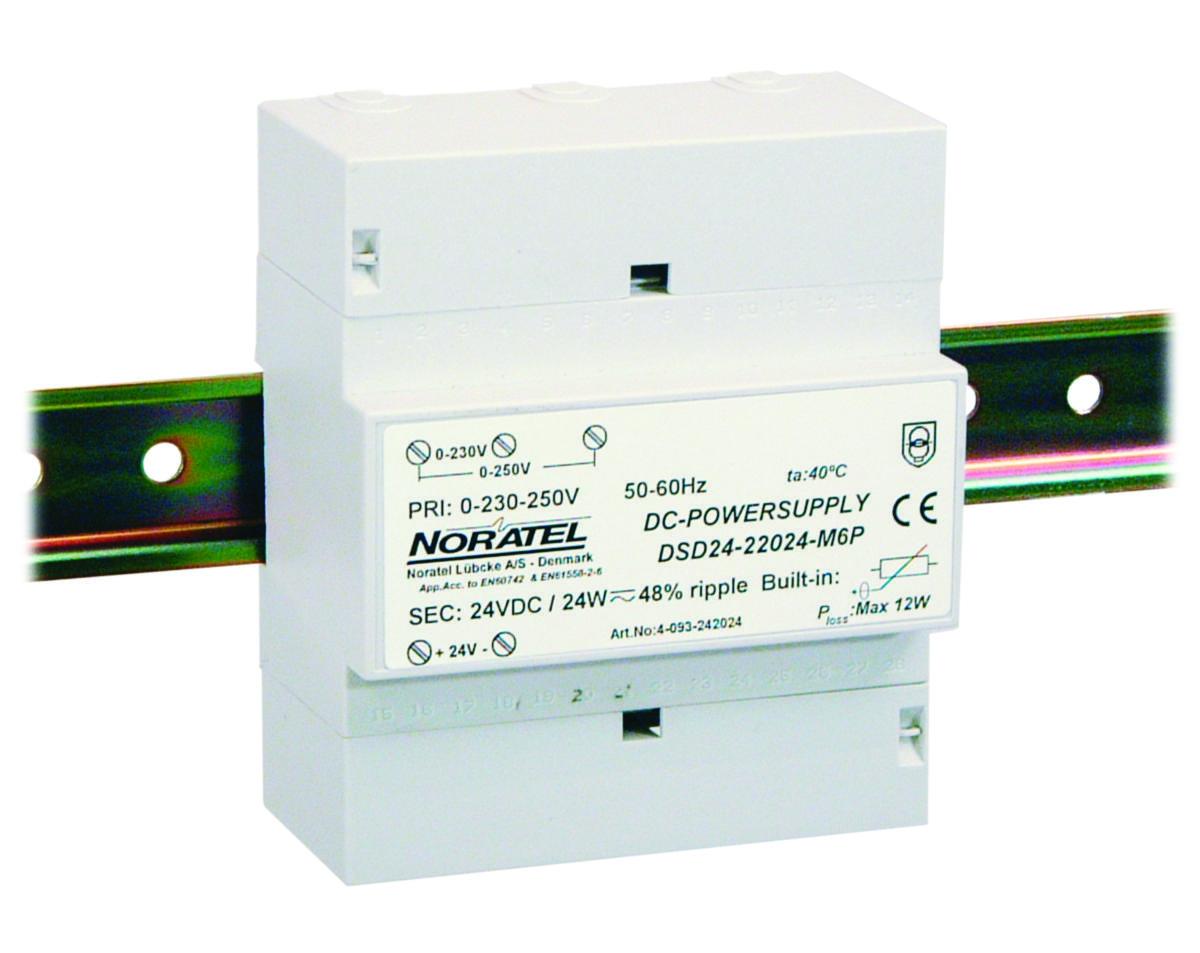

Power supply Type DSD 230/24 V DC

1-phase power supply without filtering. For 24V voltage. Maximum ripple is 48% RMS. Separate windings, integrated PTC fuse against overload and short circuit. Made in accordance with EN61558-2-6and CE marked. The power supply is double-insulated, class II, moulded with a plastic outer casing. This provides protection against dirt, moisture, and provides a low acoustic sound level. Adapted "modular" mounting on 35 mm DIN rail. Application areas: Power supply in the DSD series can be used to DC-contactors, solenoid valves and other objects that can tolerate industrial "coarse" DC voltage.
