Hager

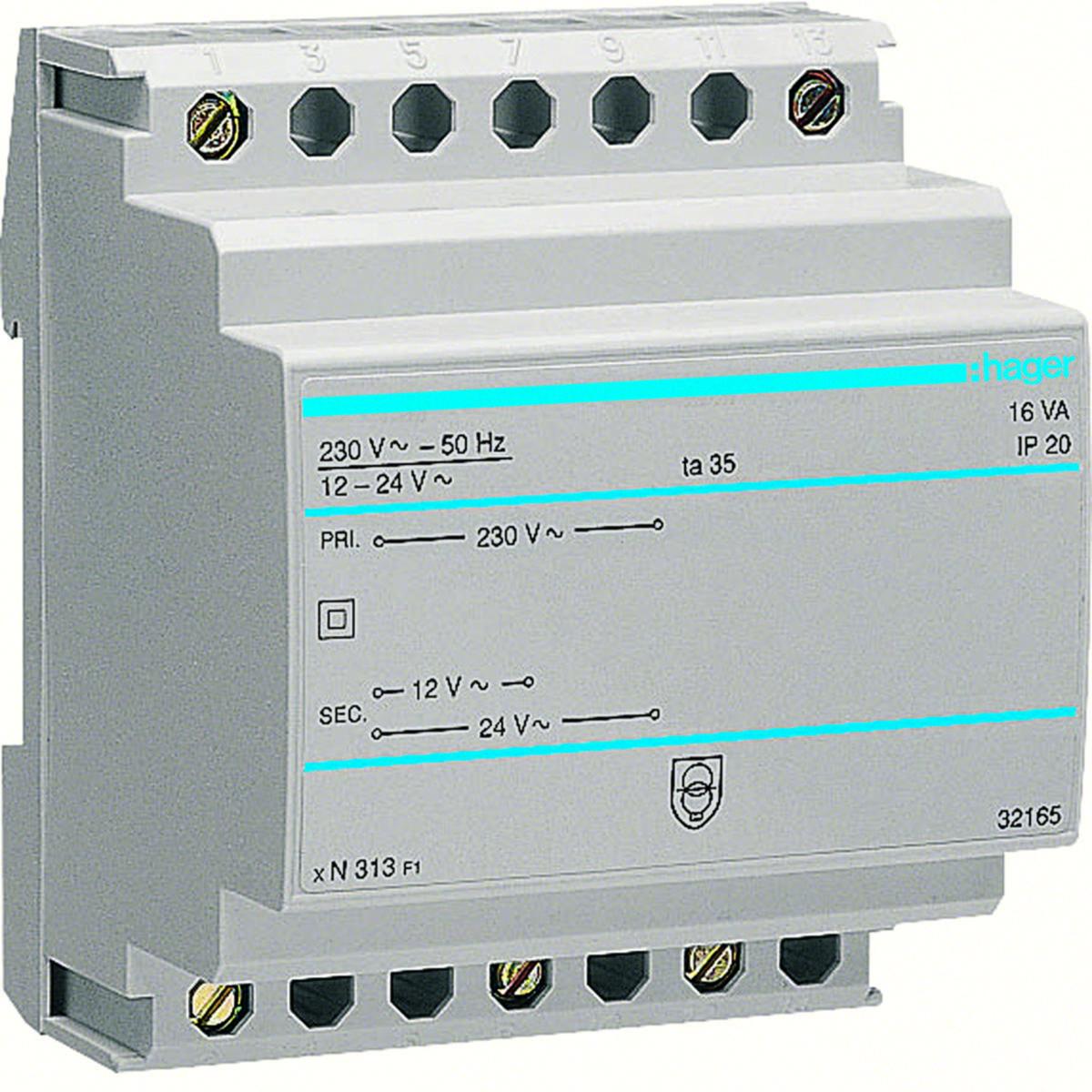

Safety transformer 230 V
SAFETY TRANSFORMER 16VA 230V12 ST313
Article number: Suppl. article no:
5208050E
ST313
to see price and stock
Secondary side should be fused
- Article number: 5208050E
- Suppl. article no: ST313
- Ean no: 3250615703132
- Material class QQ496B
Technical data
- Packagin Size: 1 ST/36 ST/216 ST/864 ST
- Type: ST313
- Primary voltage: 230 V
- Secondary voltage 1: 12 V
- Secondary amperage 1: 1.33 A
- Secondary voltage 2: 24 V
- Secondary amperage 2: 0.67 A
- Max. power loss: 1.5 W
- Max. output power: 16 W
- Type of transformer: Safety transformer
- Suitable for distribution board: Yes
- Width in number of modular spacings: 4
- Length: 85 mm
- Width: 70 mm
- Height: 58 mm
- Short-circuit protected: Yes
- Flush-mounted installation: No
- Surface mounting: Yes
- With on/off switch: No
- Temperature protection: Yes
- REACH Date: 2021-06-16
- REACH Information obligation: No
