Ahlsell Products Electric Telecoms, Data, Security 50-63 52 Power supply Power supply and accessories Power supply
  • POW SUP ECO 120W 24V 5A PRO ECO 120W 24V 5A

  • Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.

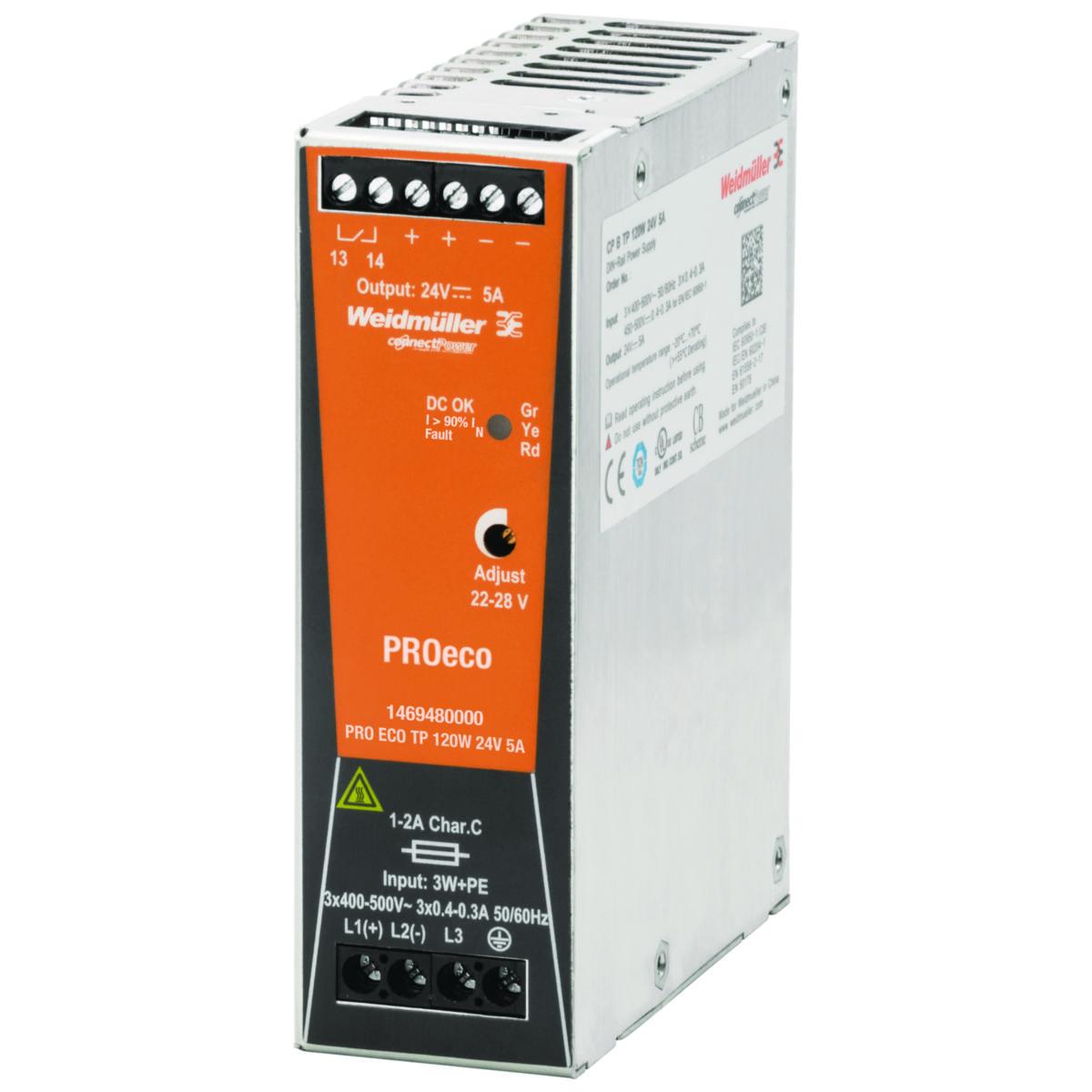

Power supply unit PROeco 1-phase

POW SUP ECO 120W 24V 5A PRO ECO 120W 24V 5A

Article number: 5248278
Suppl. article no: 1469480000 | More info
Sign in to see price information
Show replacement article
ST

Rounded to full packaging

The selected article has been replaced.

To shop with us, you need a registered company and a customer number.
Show all variants

Power supply, switched power supply, 1-phase, 24 V. Efficient - efficiency up to 93%. Compact format: for installation in device boxes, only 100 mm deep. 3-step LED indication: green, yellow, red indicates the load level.

More info

  • Brand: Weidmüller
  • 1st secondary output voltage: 22-28 V
  • Nominal value output current 1: 5 A
  • Secondary voltage adjustable: Yes
  • Power output: 120 W
  • Stabilized: Yes
  • Rated supply voltage AC 50 Hz: 85-264 V
  • Power consumption: 137.9 VA
  • Rated supply voltage DC: 80-370 V
  • Width: 40 mm
  • Suitable for safety functions: No
  • Short-circuit-proof: Yes
  • Suitable for distribution board: No
  • Performance level according to EN ISO 13849-1: None
  • Degree of protection (IP): IP20
  • Type of electric connection: Screw connection
  • Voltage type (supply voltage): AC/DC
  • Height: 125 mm
  • Depth: 100 mm
  • Direct mounting possible: Yes
  • Built-in height: 225 mm
  • Rated supply voltage AC 60 Hz: 85-264 V
  • SIL according to IEC 61508: None
  • Suitable for rail mounting: Yes
  • Built-in width: 100 mm
  • Nominal value output voltage 1: 24 V
  • Output voltage stabilized: Yes
  • Wall mounting possible: No
  • REACH Date: 2022-10-28
  • REACH contains candidate substances: Bly
  • REACH Information obligation: Yes
More info

Most viewed

Article information Additional information

Article information

Power supply, switched power supply, 1-phase, 24 V. Efficient - efficiency up to 93%. Compact format: for installation in device boxes, only 100 mm deep. 3-step LED indication: green, yellow, red indicates the load level.

Article no: 5248278

Suppl. article no: 1469480000

Ean no: 4050118275476

Material class QQ2230

Technical data

  • Brand: Weidmüller
  • 1st secondary output voltage: 22-28 V
  • Nominal value output current 1: 5 A
  • Secondary voltage adjustable: Yes
  • Power output: 120 W
  • Stabilized: Yes
  • Rated supply voltage AC 50 Hz: 85-264 V
  • Power consumption: 137.9 VA
  • Rated supply voltage DC: 80-370 V
  • Width: 40 mm
  • Suitable for safety functions: No
  • Short-circuit-proof: Yes
  • Suitable for distribution board: No
  • Performance level according to EN ISO 13849-1: None
  • Degree of protection (IP): IP20
  • Type of electric connection: Screw connection
  • Voltage type (supply voltage): AC/DC
  • Height: 125 mm
  • Depth: 100 mm
  • Direct mounting possible: Yes
  • Built-in height: 225 mm
  • Rated supply voltage AC 60 Hz: 85-264 V
  • SIL according to IEC 61508: None
  • Suitable for rail mounting: Yes
  • Built-in width: 100 mm
  • Nominal value output voltage 1: 24 V
  • Output voltage stabilized: Yes
  • Wall mounting possible: No
  • REACH Date: 2022-10-28
  • REACH contains candidate substances: Bly
  • REACH Information obligation: Yes

Variants

Variants

Art. no. Name 1st secondary output voltage Nominal value output current 1 Secondary voltage adjustable Power output Stabilized Number/pack Unit
5248278
 		- 22-28 V 5 A Yes 120 W Yes 1 ST
