Siemens

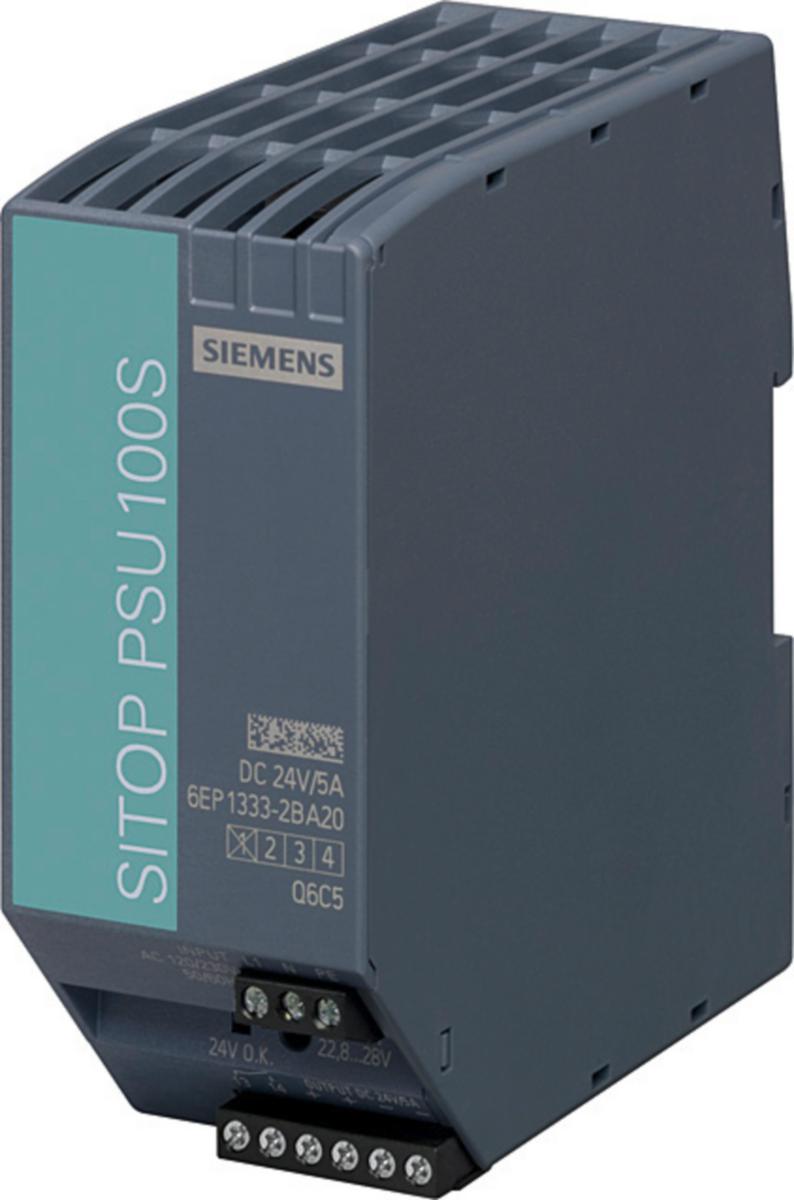

Power supply Sitop smart
SITOP PSU100S 24 V/5 A 6EP1333-2BA20
Article number: Suppl. article no:
5218627
6EP1333-2BA20
Normally in stock
to view the store status of the store
to see price and stock
Primary switch with stabilised 24 V DC output voltage.
- Article number: 5218627
- Suppl. article no: 6EP1333-2BA20
- Ean no: 4025515153481
- Material class QQ214B
Technical data
- Type: 6EP1333-2BA20
- Design: 1-phase, DIN assembly
- 1st secondary output voltage: 24 V
- Nominal value output current 1: 5 A
- Max. output current 1: 6 A
- Secondary voltage adjustable: Yes
- Power output: 144 W
- Stabilized: Yes
- Rated supply voltage AC 50 Hz: 230 V
- Width: 50 mm
- Short-circuit-proof: Yes
- Suitable for distribution board: Yes
- Degree of protection (IP): IP20
- Type of electric connection: Screw connection
- Voltage type (supply voltage): AC
- Height: 125 mm
- Depth: 120 mm
- Direct mounting possible: No
- Built-in height: 225 mm
- Rated supply voltage AC 60 Hz: 120 V
- Suitable for rail mounting: Yes
- Built-in width: 50 mm
- Nominal value output voltage 1: 24 V
- Output voltage stabilized: Yes
- REACH Date: 2022-03-14
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
