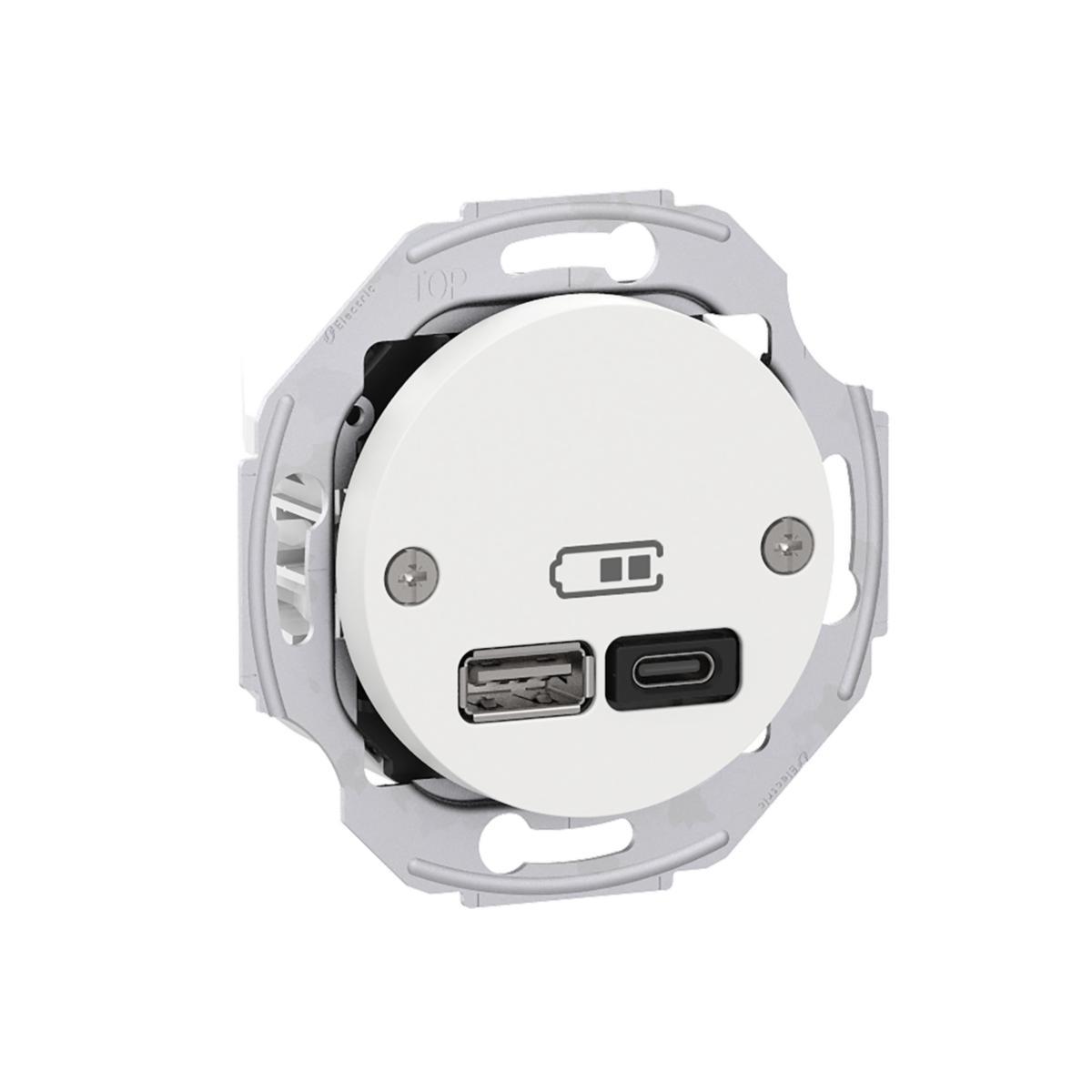

USB charging station type A+C 45W, Renova, Schneider
USB outlet A+C 45W
Article number: Suppl. article no:
5200508
WDE011764
to see price and stock
Renova USB Charging station type A+C. The outlet has two outputs, which enables charging of two devices at the same time. Type A 7.5W, Type C 45W with Power Delivery. Screw connection, for flush mounting in a device box c/c 60 mm, for surface mounting a 35 mm box is used. To be completed with optional Renova frame.
- Article number: 5200508
- Suppl. article no: WDE011764
- Ean no: 3606482164765
- Material class QH1100
Technical data
- Packagin Size: 1 PCS/72 PCS
- Product series: Renova
- Model: Other
- Number of ports USB-A: 1
- Number of ports USB-C: 1
- Connection type: Screwed terminal
- Max. output current: 3 mA
- Output voltage: 5-20 V
- Colour: White
- RAL-number: 9010
- Operating voltage: 220-240 V
- Frequency: 50-60 Hz
- Mounting method: Flush-mounted
- Device width: 71 mm
- Device height: 71 mm
- Device depth: 42 mm
- Suitable for degree of protection (IP): IP20
- Impact strength: IK04
- Min. depth of built-in installation box: 30 mm
- Anti-bacterial treatment: No
- REACH Date: 2022-07-20
- REACH contains candidate substances: Bly | Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide
- REACH Information obligation: Yes
