Schneider Electric
USB charger A + C Exxact 45W
USB outlet A+C 45W WHITE WDE002983
Article number: Suppl. article no:
5200505
WDE002983
to see price and stock

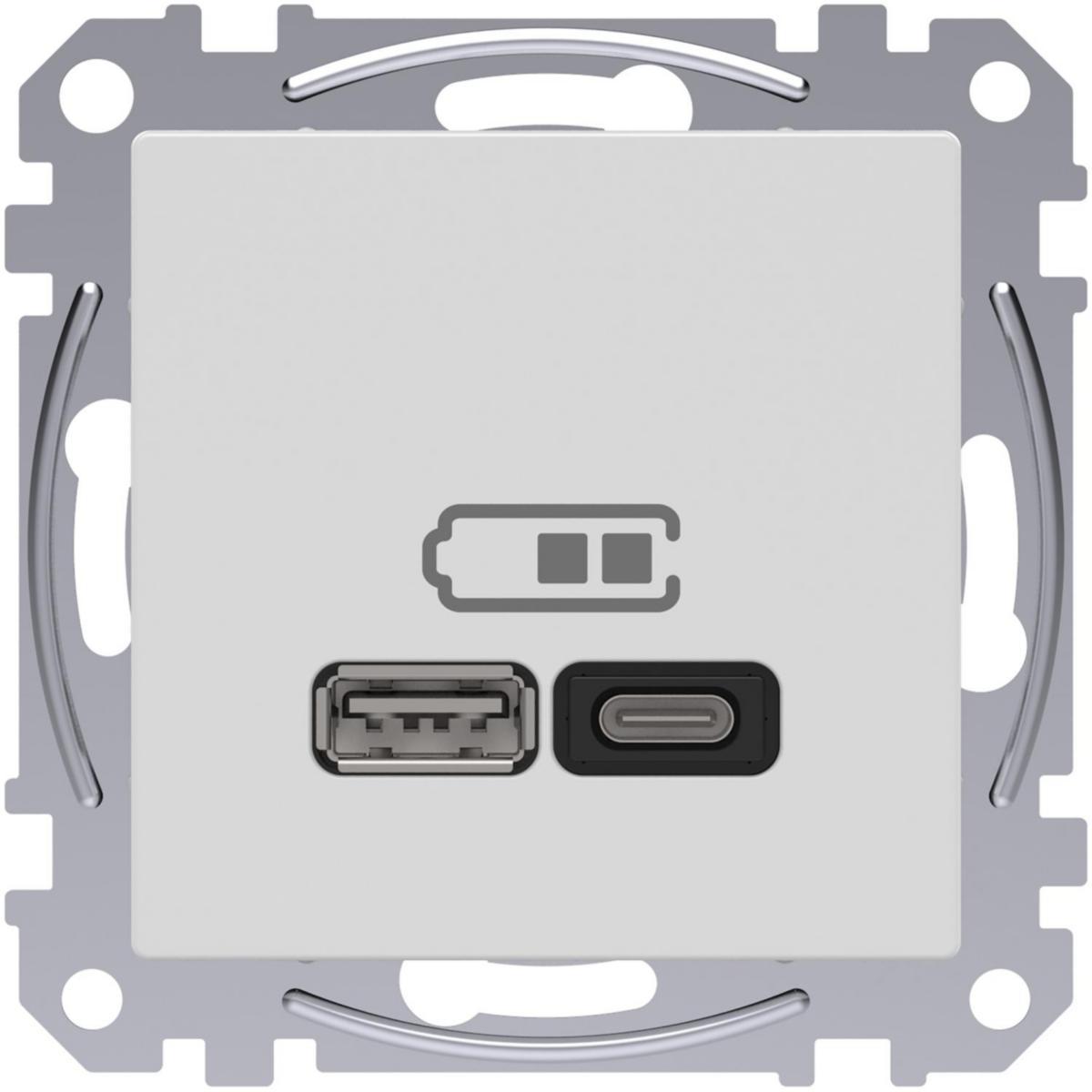

Exxact USB Charging Station type A + C. The socket has two outputs, which enables charging of two devices simultaneously. Type A 7.5W, Type C 45W with Power Delivery. Screw connection, for flush mounting in device box c / c 60 mm, for surface mounting a box 35 mm is used. Supplemented with any Exxact frame.
- Article number: 5200505
- Suppl. article no: WDE002983
- Ean no: 3606482164734
- Material class QH170A
- This is an alternative to item 5200347
Technical data
- Packagin Size: 1 PCS/40 PCS
- Product series: Exxact
- Model: Other
- Number of ports USB-A: 1
- Number of ports USB-C: 1
- Max. output current: 3 mA
- Output voltage: 5-20 V
- Colour: White
- RAL-number: 9003
- Operating voltage: 220-240 V
- Frequency: 50-60 Hz
- Mounting method: Flush-mounted
- Device width: 71 mm
- Device height: 71 mm
- Device depth: 41 mm
- Suitable for degree of protection (IP): IP20
- Impact strength: IK04
- Min. depth of built-in installation box: 30 mm
- Anti-bacterial treatment: No
- Connection type: Screwed terminal
- REACH Date: 2022-07-20
- REACH contains candidate substances: Bly | Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide
- GWP-tot (A1-A3): 5,2474 kgCO2e/ST
- REACH Information obligation: Yes
