Elko

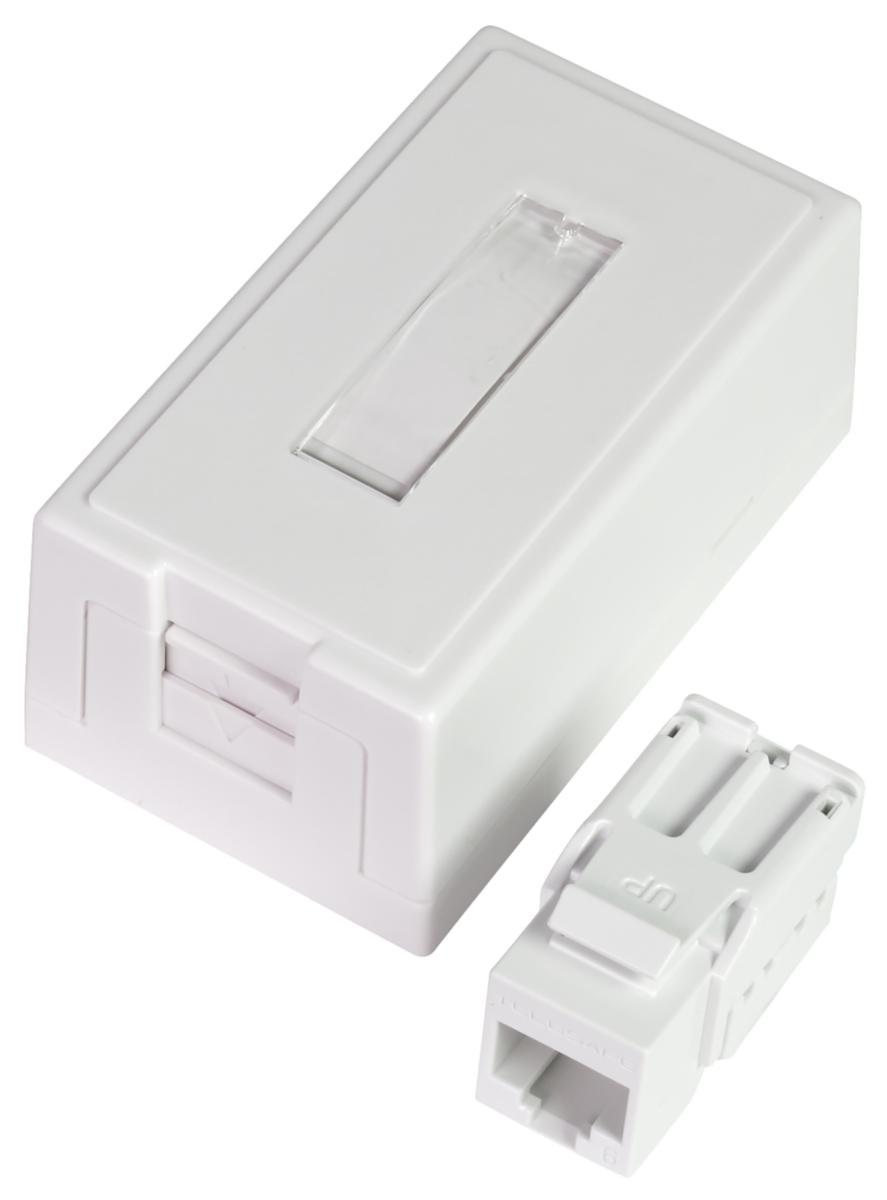

Complete module socket EXT. QC C6 UTP, Elko
WO 1XUTP C6 QUICKCONN EKO02810
Article number: Suppl. article no:
5105396
EKO02810
to see price and stock
Modular socket surface-mounted with cover and rating window. 1x8 or 2x8 STP C6 in complete output kits, consisting of TCS QuickConnect unshielded modular jack. Quick and easy contact connection with tools. Can be contacted in accordance with 568A or 568B. the jack snaps directly in the centre plate. The modular outlet has been designed and developed in accordance with SS-EN 50173 series, and is part of the warranty system ELKO TCS.
- Article number: 5105396
- Suppl. article no: EKO02810
- Ean no: 7020160281005
- Material class QR3100
Technical data
- Packagin Size: 1 ST/35 ST/35 ST
- Product series: TCS
- Suitable for number of connectors: 1
- Type of connector: RJ45 8(8)
- Category: 6
- Colour: White
- Outlet direction: Bottom
- Shielded buses: No
- With dust cover: Yes
- Colour coding: Yes
- With label space: Yes
- Separate strain relief: No
- Degree of protection (IP): IP20
- Type of fastening: Engage (snap)
- Shielded housing: No
- Surface mounting: Yes
- REACH Date: 2022-08-09
- Type: EKO02810
- REACH Information obligation: No
