Elko

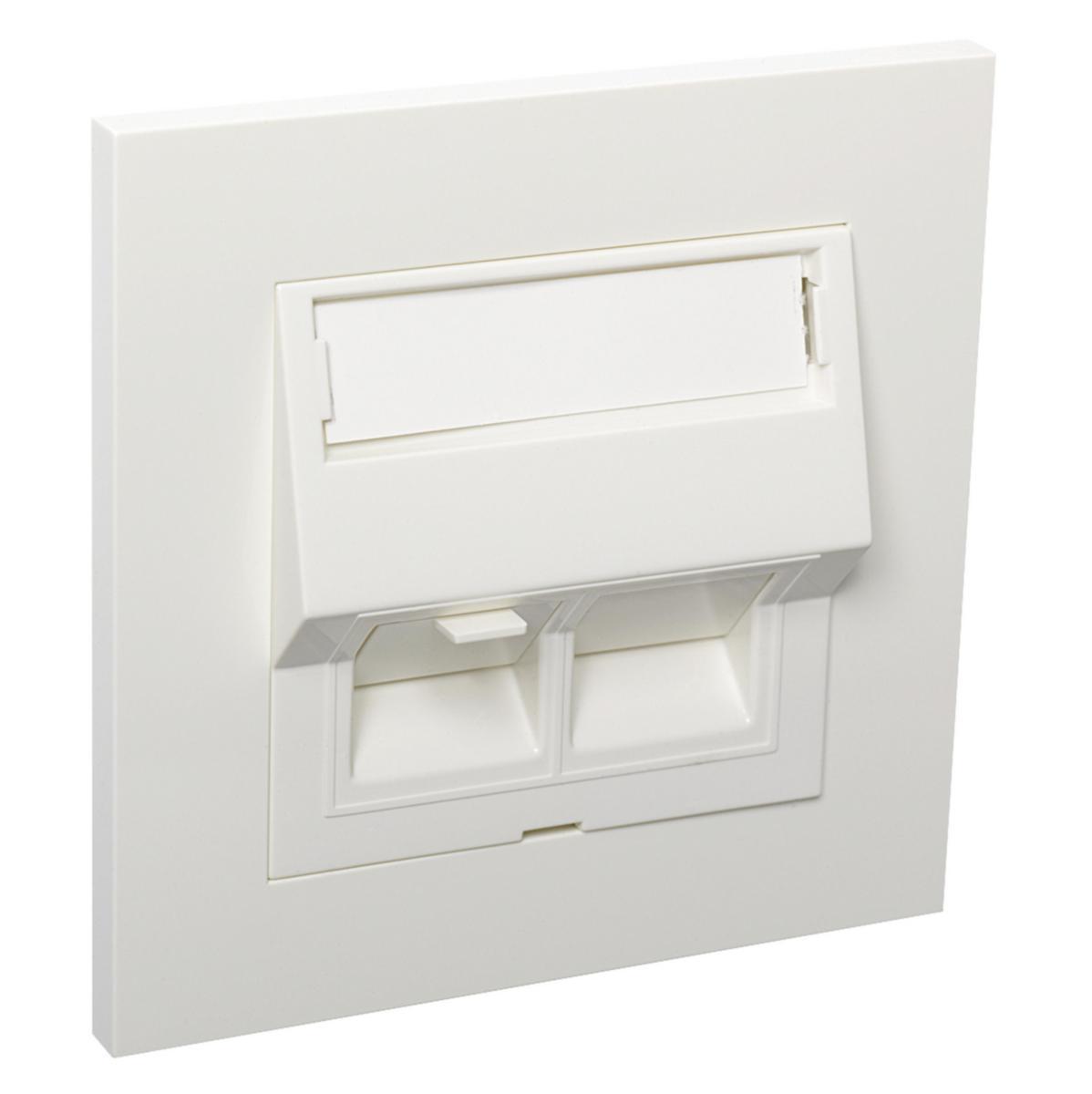

Modular socket angled STP C6A TL Plus, Elko
SOCKET 2X8 STP C6A TL FV PLUS 5549
Article number: Suppl. article no:
5105383
EKO05549
to see price and stock
Modular socket TL STP C6A in complete socket sets consisting of shielded modular jack TCS ToolLess, straight center plate and frame. Easy contact without tools. Can be contacted according to 568A or 568B. The jacket snaps directly into the center plate. The modular socket has been developed and designed according to the SS-EN 50173 series and is part of the ELKO TCS guarantee system.
- Article number: 5105383
- Suppl. article no: EKO05549
- Ean no: 7020160554901
- Material class QR3100
Technical data
- Packagin Size: 1 ST/5 ST
- Product series: RS
- Suitable for number of connectors: 2
- Type of connector: 2x RJ45 8(8)
- With buses/couplings: Yes
- Category: 6A (IEC)
- Colour: White
- Outlet direction: Inclined
- RAL-number: 9010
- Shielded buses: Yes
- Compatible with third-party covers: Yes
- With dust cover: Yes
- Colour coding: Yes
- Floor box/subfloor mounted: Yes
- Duct installation: Yes
- With label space: Yes
- Separate strain relief: No
- Separate earthing connection: Yes
- Degree of protection (IP): IP20
- Type of fastening: Screwing
- Shielded housing: Yes
- Surface mounting: No
- Device width: 84 mm
- Device height: 84 mm
- Device depth: 30 mm
- With terminal resistor: No
- Connection type: Other
- REACH Date: 2022-08-09
- REACH Information obligation: No
